Column load cell
Column load cell

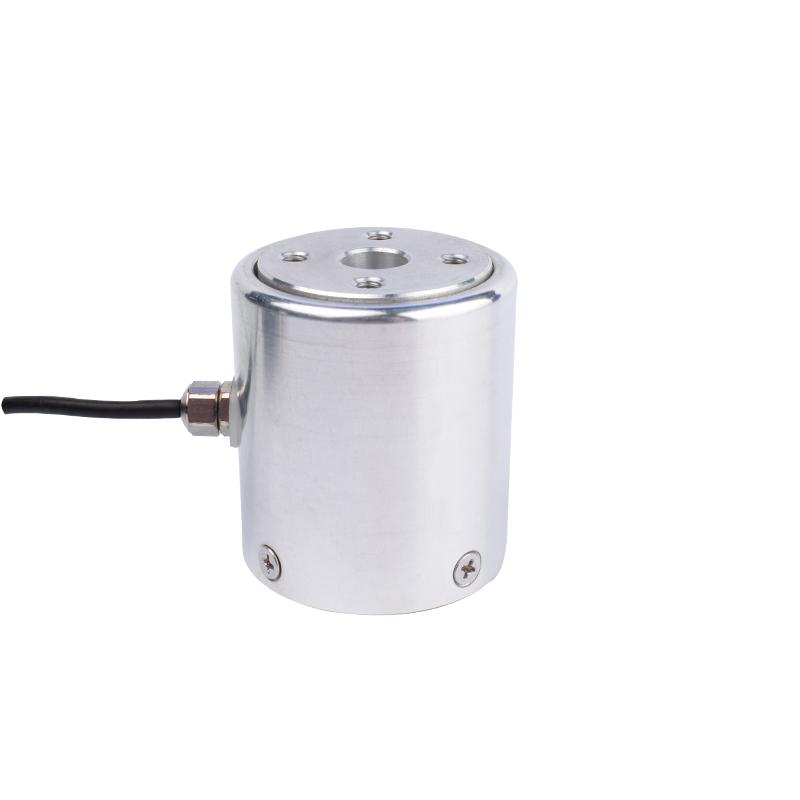

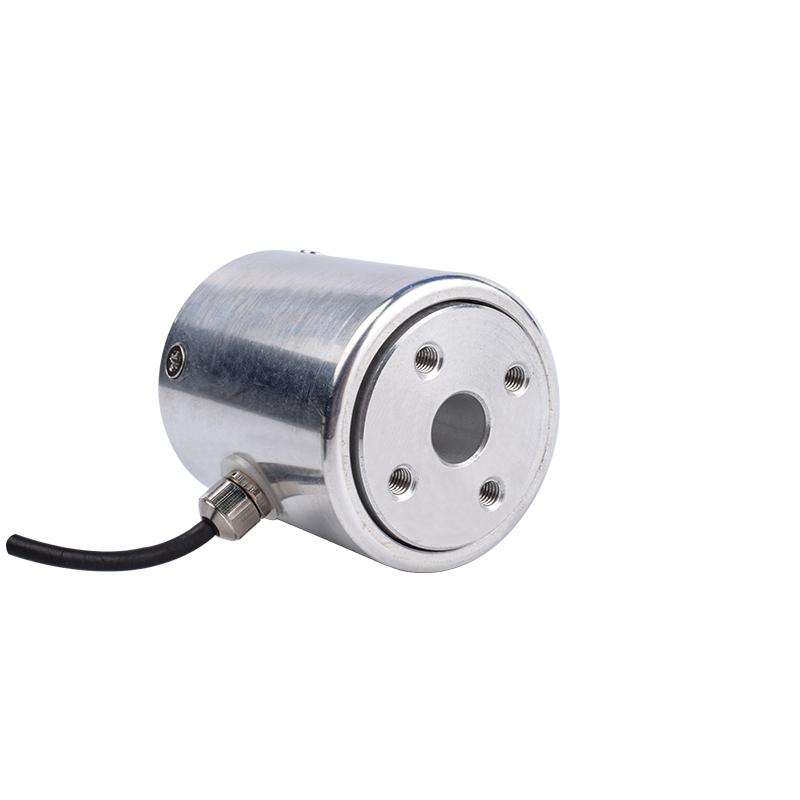

Stainless steel tension compression column load cell NF411

Model: NF411
Category: Column Load Cells
Capacity: 5,10,20,50,100kN
Rated Output: 1.0±10%mV/V
Material: Stainless steel
Protection Class: IP66
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Stainless steel tension compression column load cell NF411 is based on strain gauge technology with maximum 0.2% non-linearity. The cylindrical force sensor can output signals via mV or mA which is proportional to the applied force. Compact size structure makes the canister load cell especially suitable for applications where space is limited.

  • Small deflection

  • High dynamic response frequency

  • Tension and compression bidirectional

Applications

  • Industrial measurement
  • Robot grasping
  • Automatic assembly

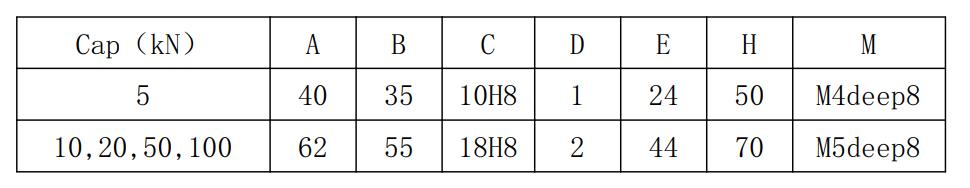

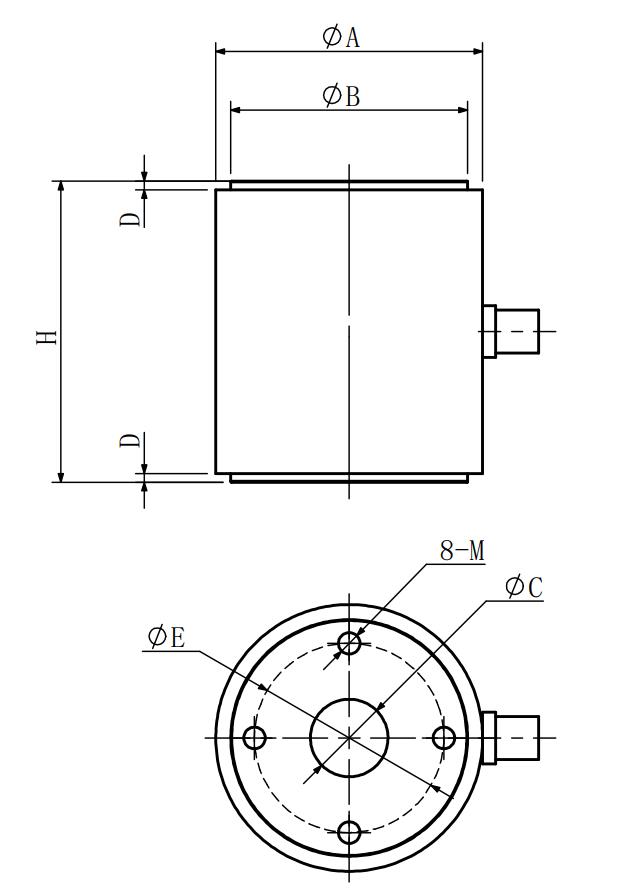

Mounting Dimension

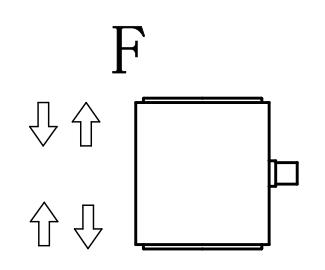

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 5, 10,20,50, 100kN
Rated output 1.0±10%mV/V
Zero balance ±0.05 mV/V
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.1%F.S.
Creep(30min) 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ5×4m
Material Stainless Steel
IP Class IP66



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll always adhere to the "quality is life" product concept to build a professional team in the field of automation, providing customers with quality products, pre-sale and after-sale technical service. Naturoll is especially good at customized design and development of products and solutions.
