Weighing modules load cell

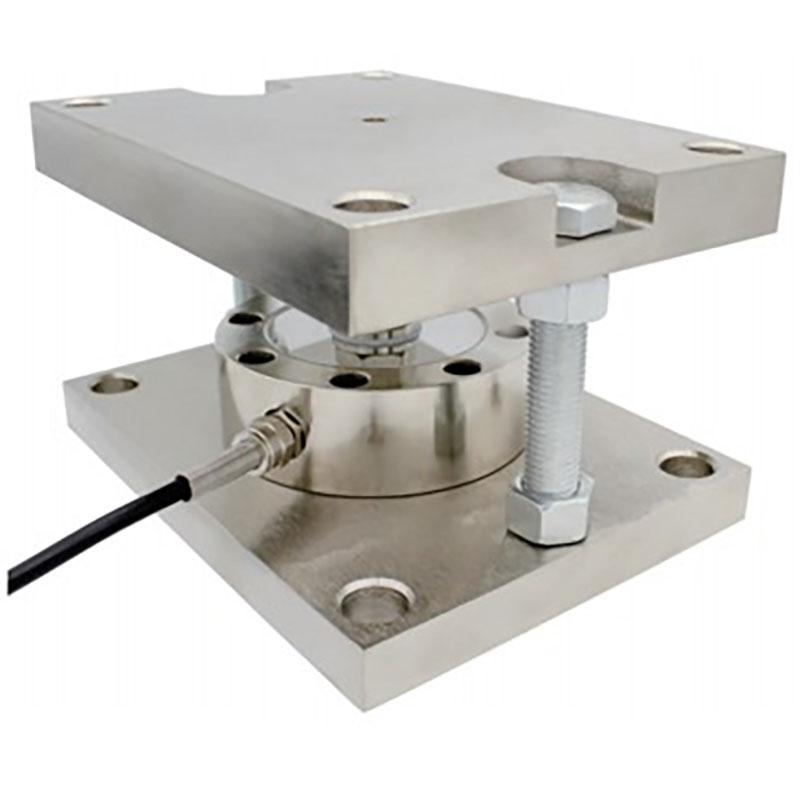

Weighing modules pancake load cell NF525

Model: NF525
Category: Weighing Modules
Capacity: 1-60T
Rated Output: 2.0±10%mV/V
Material: Stainless Steel/Alloy steel
Protection Class: IP65
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Weighing modules pancake load cell NF525  can be made of either stainless steel or alloy steel. The weighing modules force sensor based on strain gauge technology has a range of 1-60t. The weighing modules load cell can be installed in a variety of ways and can be customization according to customer needs.

  • High stability
  • Stable anti-interference signal
  • Easy Installation

Applications

  • Chemical, pharmaceutical and food Industry
  • Industrial measurement
  • Reaction kettle, batching tank, hopper

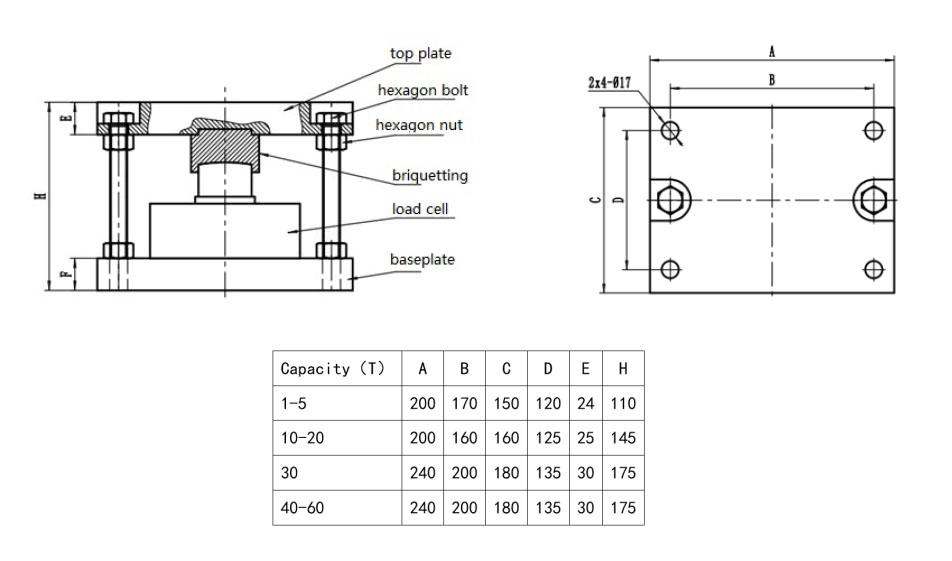

Mounting Dimension

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 1-60T
Rated output 2.0±10%mV/V
Zero balance ±0.02mV/V
Non-linearity 0.05%F.S.
Hysteresis 0.03%F.S.
Repeatability 0.03%F.S.
Creep(30min) 0.03%F.S.
Temp.effect on output 0.03%F.S./10
Temp.effect on zero 0.03%F.S./10
Input impedance 700±5Ω
Output impedance 700±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 10V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ5×5000mm
Material Stainless Steel/Alloy steel
IP Class IP65

Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
