Column load cell
Column load cell

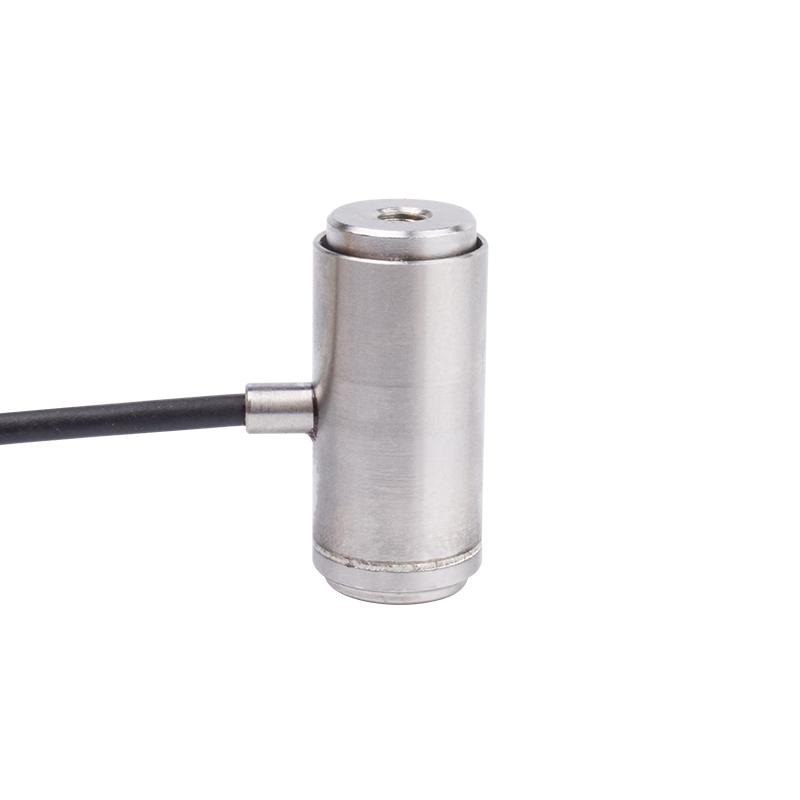

Minitype cylindrical type sensor NF401

Model: NF401
Category: Column Load Cells
Capacity: 10,20,30,50N
Rated Output: 2.0±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Minitype cylindrical type sensor NF401 uses the principle of high precision resistance strain gauge that converts force into an electrical signal. The column load cell can only measure relatively small forces because of its small size. The cylindrical force sensor can be used in limited installation space for force measuring applications .

  • Compact size
  • High dynamic response frequency
  • Oil proof, water proof and corrosion proof

Applications

  • 3C product
  • Force distribution analysis
  • Medical detection

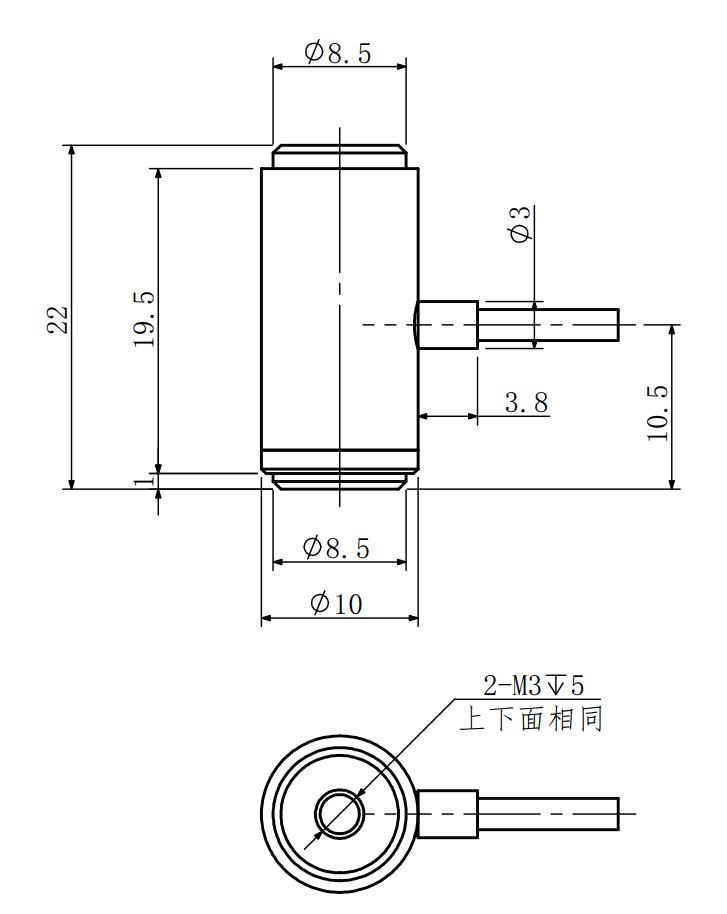

Mounting Dimension

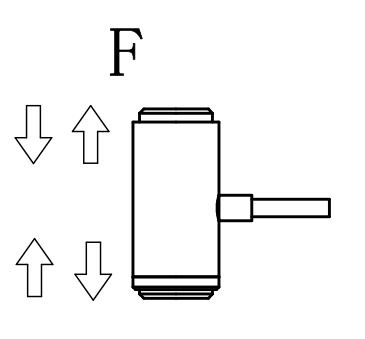

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 10,20,30,50N
Rated output 2.0±10%mV/V
Zero balance ±2% F.S.
Non-linearity 0.1%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 350±30Ω
Output impedance 350±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ2×3000mm



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
