Column type force transducer
Column type force transducer

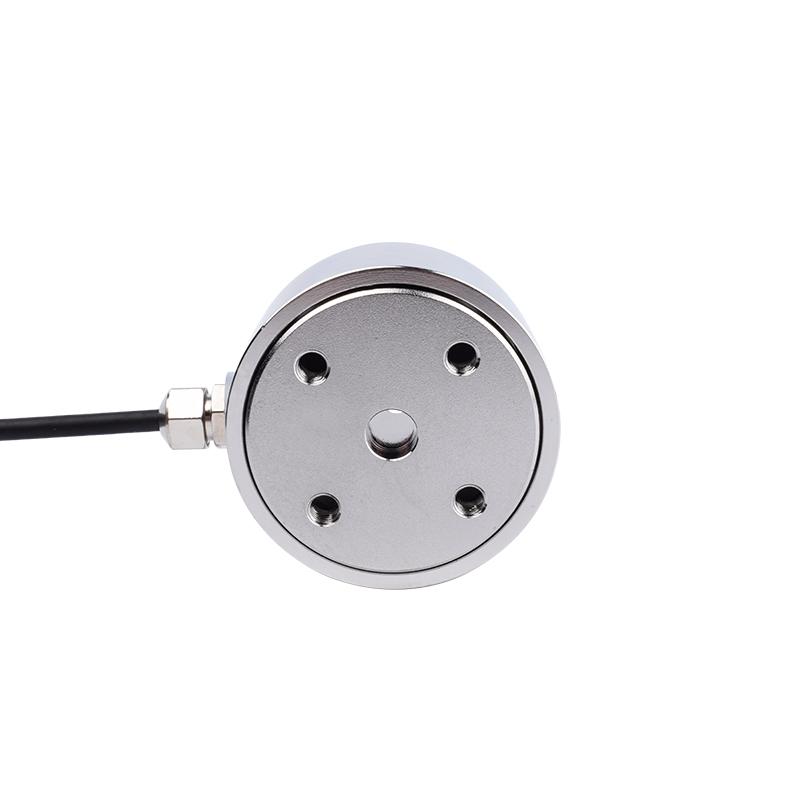

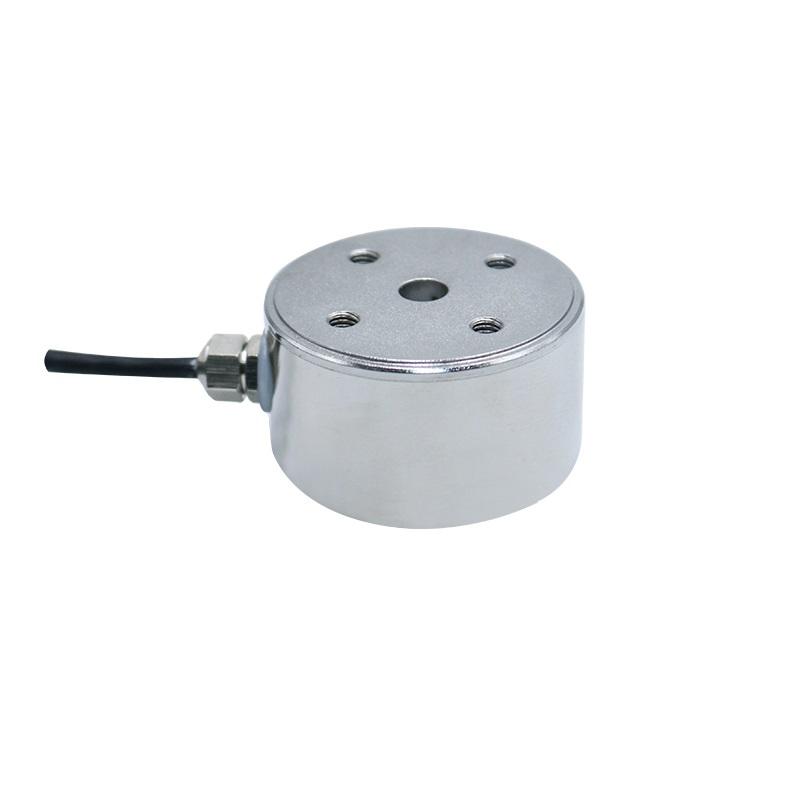

Stainless steel cylindrical load cell NF406

Model: NF406
Capacity: 0.1,0.2,0.5,1,2,5,10,20kN
Rated Output: 2.0±10%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: 0.3KG
Installation Dimensions: M4 thread
Product Orgin: China
Payment: 100% payment before shipment

Features

Stainless steel cylindrical load cell NF406 is a Column Type load cell.The flange type force sensor  has various practical range available: choose the right one for your application.

  • Small deformation
  • Anti overload
  • Stainless steel
  • High dynamic response frequency

Applications

  • Industrial weighing system
  • Force distribution analysis
  • Press force verification

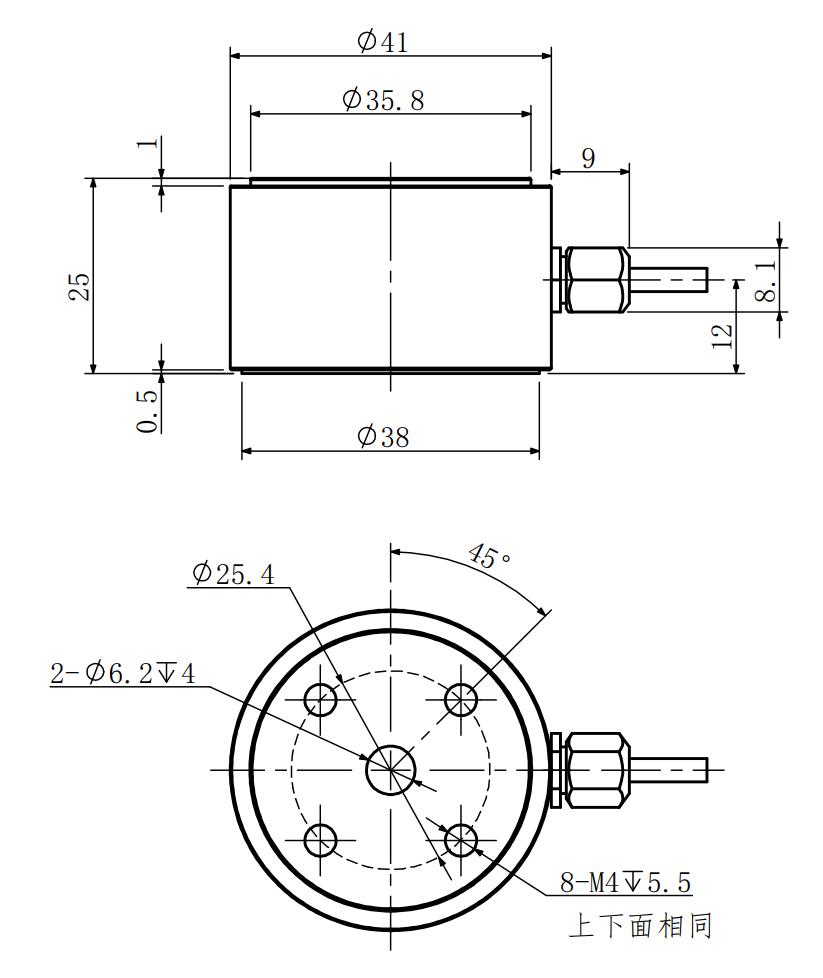

Mounting Dimension

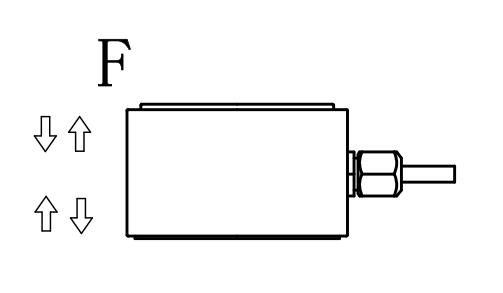

Load Direction

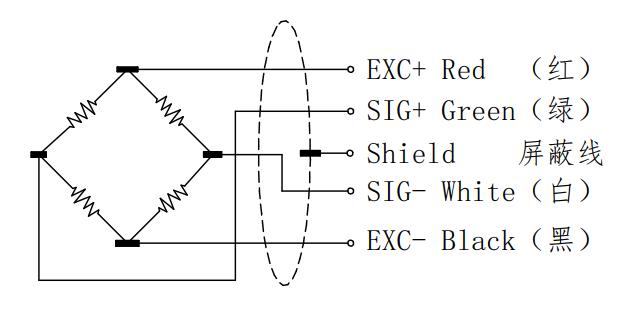

Wiring Code

Specifications

Specifications Technique
Capacity 0.1,0.2,0.5,1,2,5,10,20kN
Rated output 2.0±10%mV/V
Zero balance ±0.05 mV/V
Non-linearity 0.1%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 385±10Ω
Output impedance 350±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3000mm
