Static torque sensor
Static torque sensor

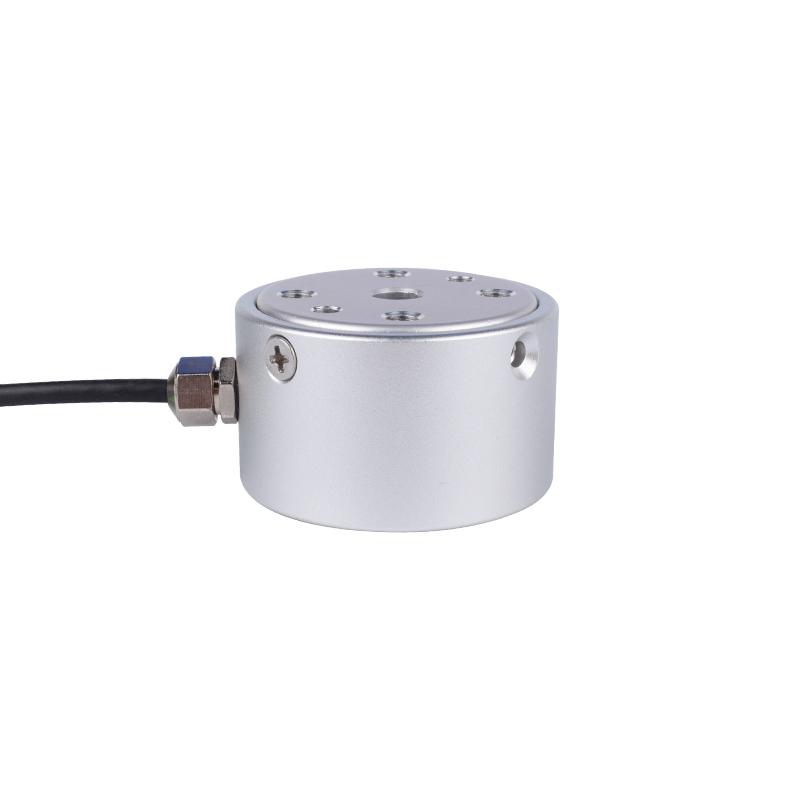

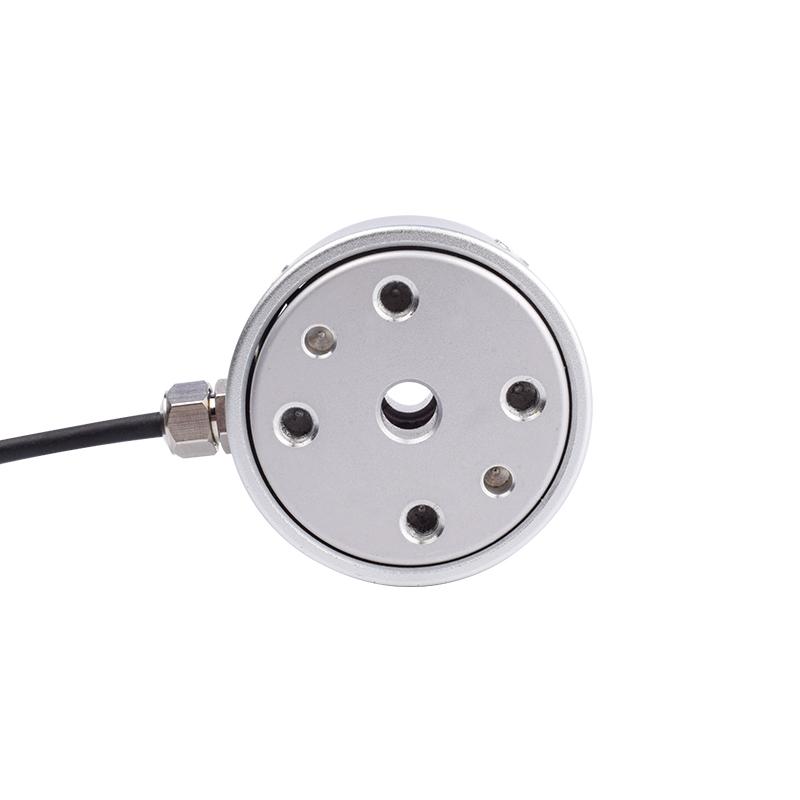

Miniature reaction torque transducers NF602

Model: NF602
Category: Torque Sensor
Capacity: 1,2,3,5,10, 20,30,50,100N.m
Rated Output: 1.5±10%mV/V
Material: aluminum alloy
Protection Class: IP65
Weight: 0.3KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Miniature reaction torque transducers NF602 uses the metal foil strain gauge technology. The static torque sensor converts an input mechanical torque into an electrical output signal. The miniature torsions sensor can be used to measure torque in both clockwise and counterclockwise direction.

  • Compact structure
  • Easy to install
  • Protection grade: IP65

Applications

  • Automatic assembly
  • Motor torque measurement
  • Twist measurement

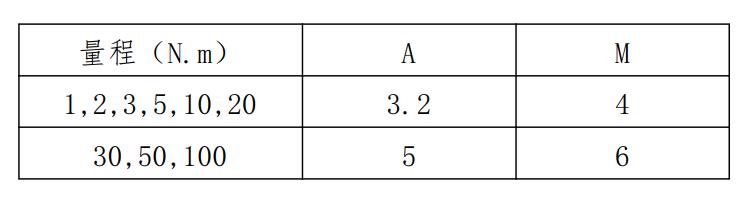

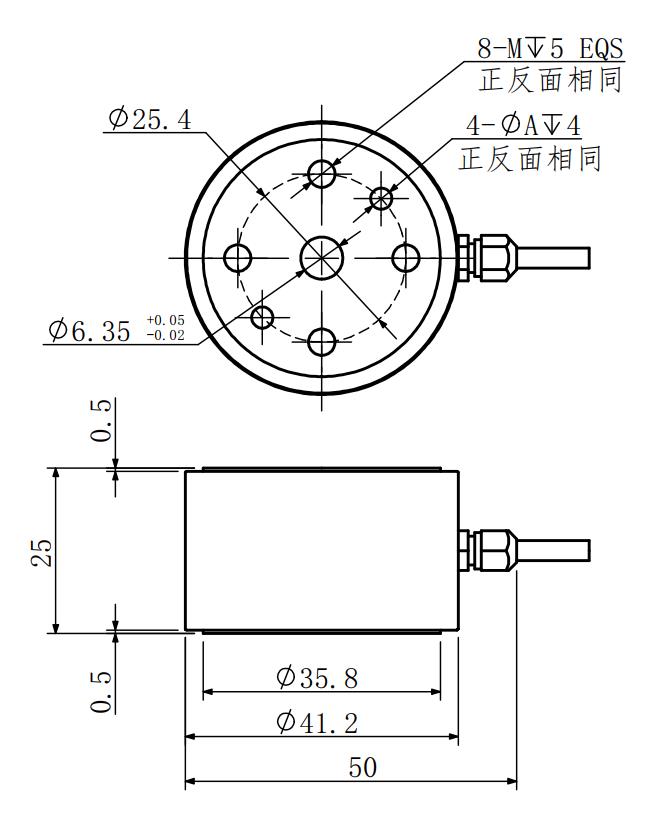

Mounting Dimension

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 1,2,3,5,10, 20,30,50,100N.m
Rated output 1.5±10%mV/V
Zero balance ±0.02mV/V
Non-linearity 0.2%F.S.
Hysteresis 0.3%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10℃
Temp.effect on zero 0.05%F.S./10℃
Input impedance 350±5Ω
Output impedance 350±5Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 120%F.S.
Ultimate overload 150%F.S.
Cable size φ3×3000mm
Material aluminum alloy
