Dynamic torque cell
Dynamic torque cell

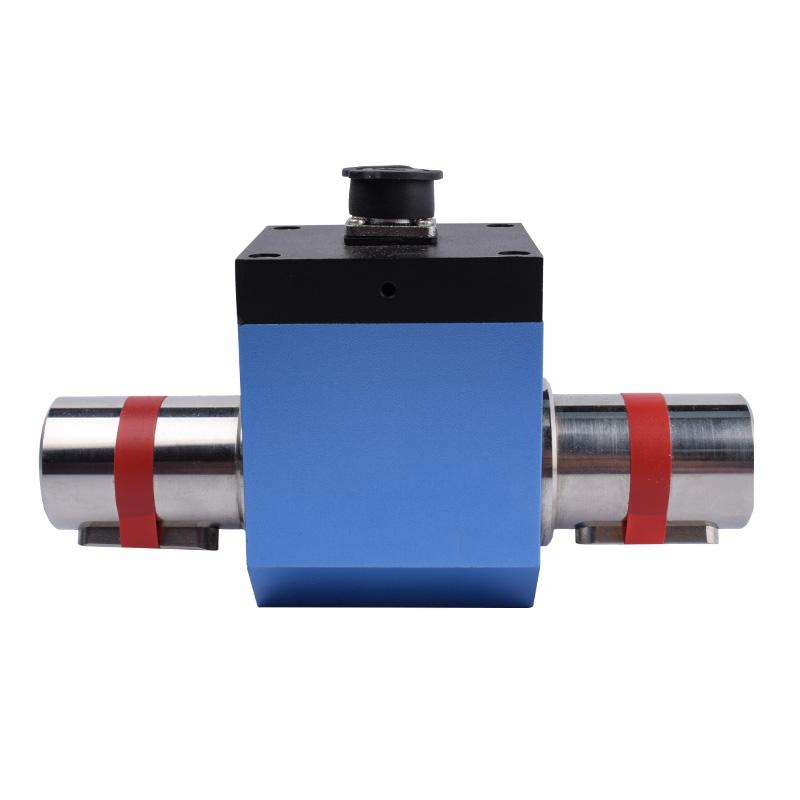

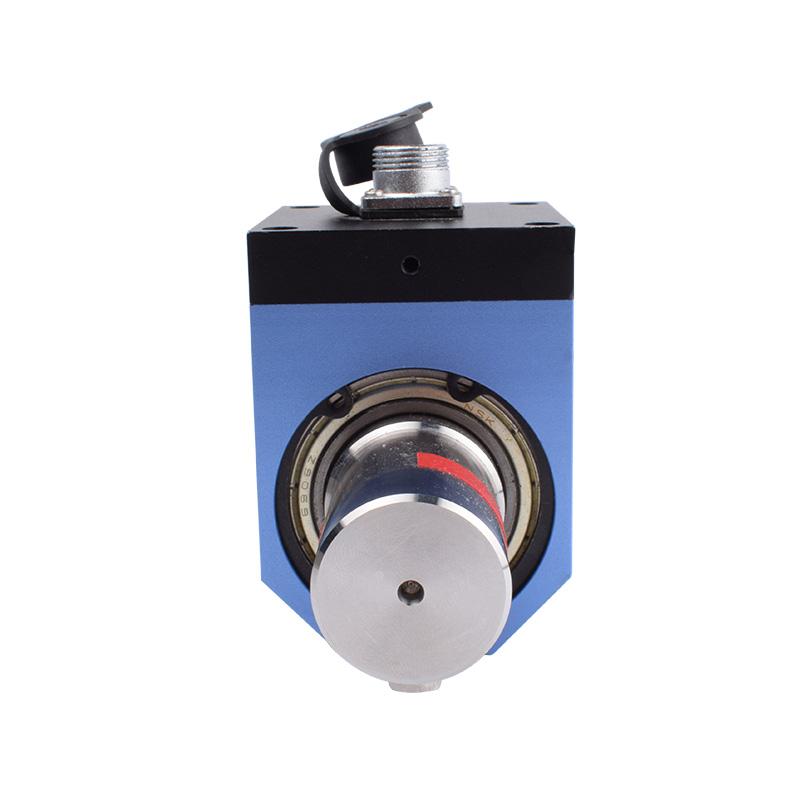

Shaft-to-shaft rotational torque sensor NF603

Model: NF603
Category: Torque Sensor
Capacity: 5-500Nm
Speed range: 8000rpm
Material: ~
Protection Class: IP65
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Shaft-to-shaft rotational torque sensor NF603 must rotate in-line attached to the shaft. The dynamic torque cell transmits the measurement values as well as the supply energy in a contactless way from the rotor to the stator. The non-contact shaft-to-shaft rotary torque sensor is produced based on contactless rotary transformer technology.

  • High precision
  • Stable and reliable performance
  • High speed and long time operation



Applications

  • Electric/pneumatic torque wrench
  • Rotary power equipment
  • Automatic machine tool torque

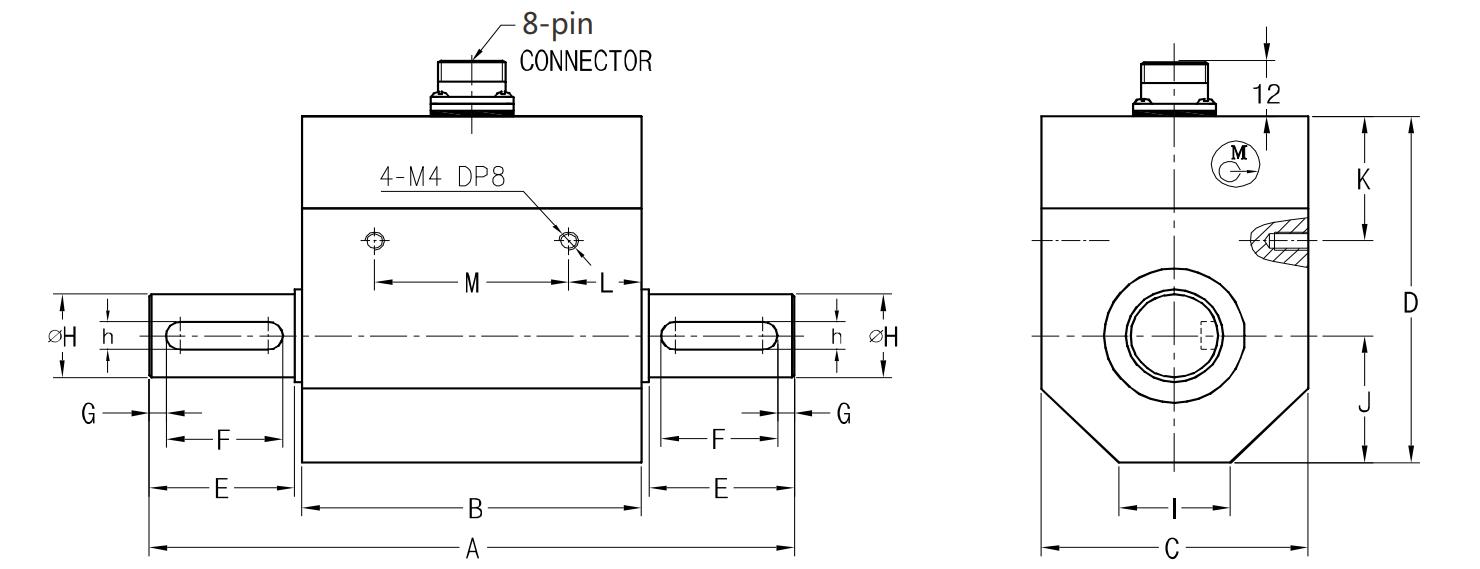

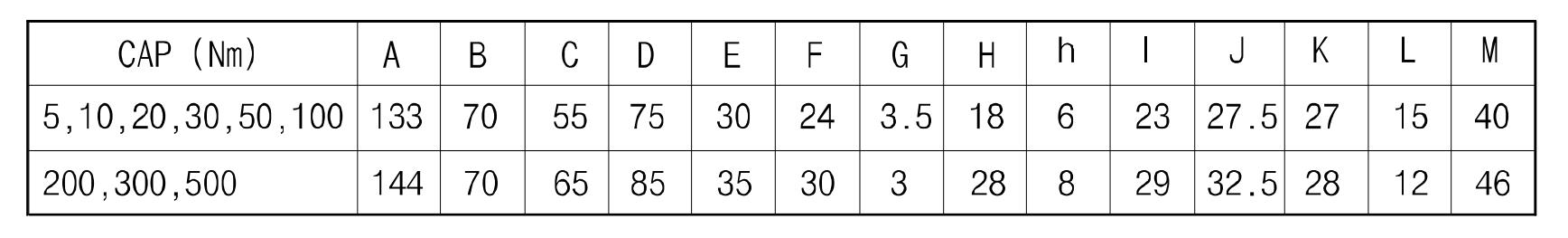

Mounting Dimension

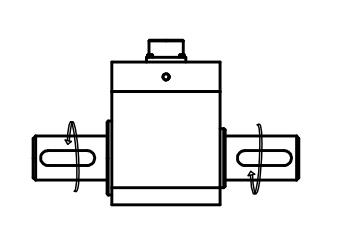

Load Direction

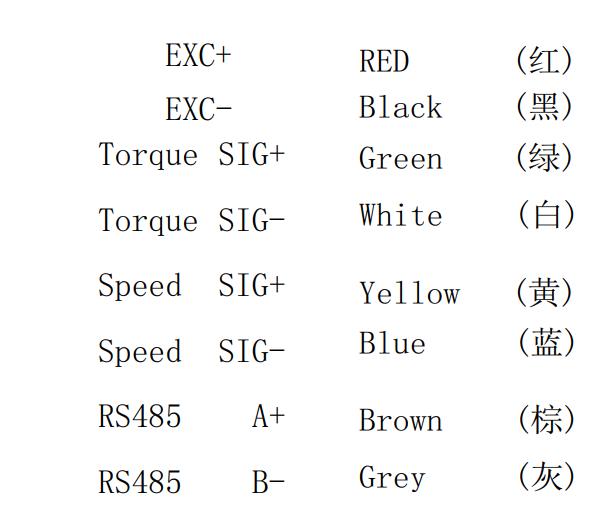

Wiring Code

Specifications

Specifications Technique
Capacity 5-500Nm
Speed range 8000rpm
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.1%F.S.
Creep(30min) 0.1%F.S.
Temp.effect on output 0.1%F.S./10°C
Temp.effect on zero 0.1%F.S./10°C
Input impedance 350±10Ω
Output impedance 350±10Ω
Insulation 2000MΩ/100VDC
Recommended excitation 12-30VDC
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 120%F.S.
Ultimate overload 150%F.S.
Cable size 5m
IP Class IP65
