Column sensor
Column sensor

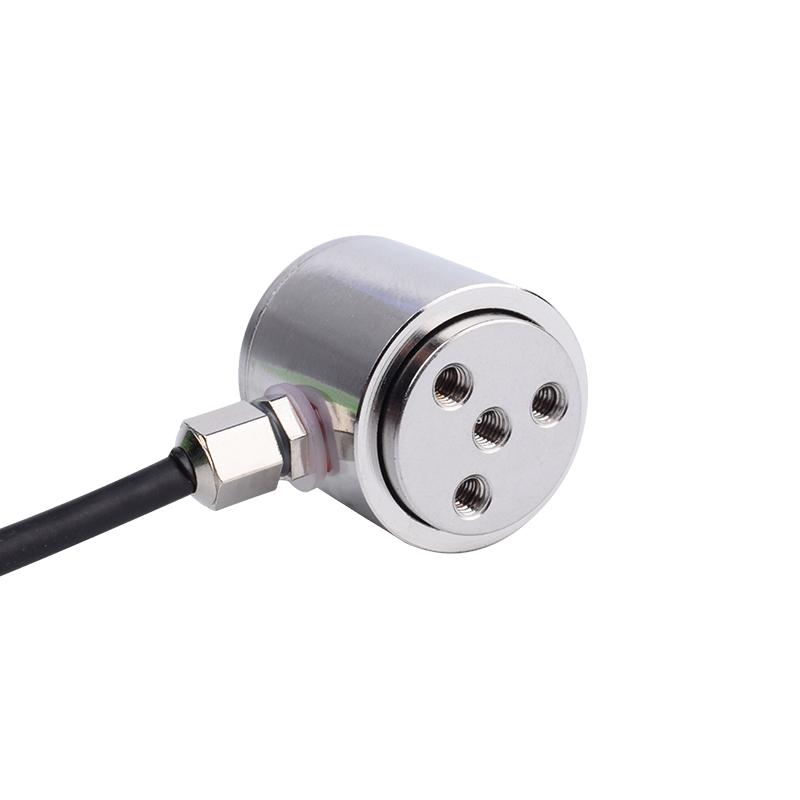

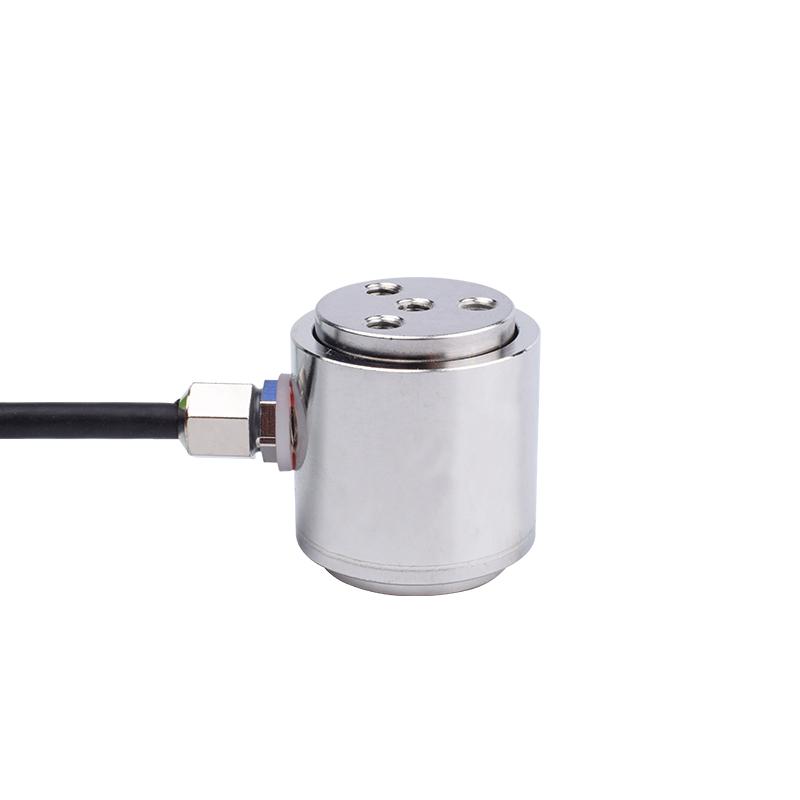

Canister Load Cell compression force sensor NF404

Model: NF404
Capacity: 20,50,100,200,300,500,1000,2000N
Rated Output: 2.0±10%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: ~
Installation Dimensions: M3 thread
Product Orgin: China
Payment: 100% payment before shipment

Features

Canister Load Cell  compression force sensor NF404 belongs to  Column Type load cell. Featuring unparalleled capabilities for flange type force transducerof its size, the versatile and universal NF404 offers limitless possibilities for applications.

  • Small deformation
  • Tension - compression bidirectional,
  • High dynamic response frequency
  • Connector assembly for Naturoll industrial amplifiers optionally available

Applications

  • New energy product assembly
  • Assembly force monitoring
  • Packaging scale

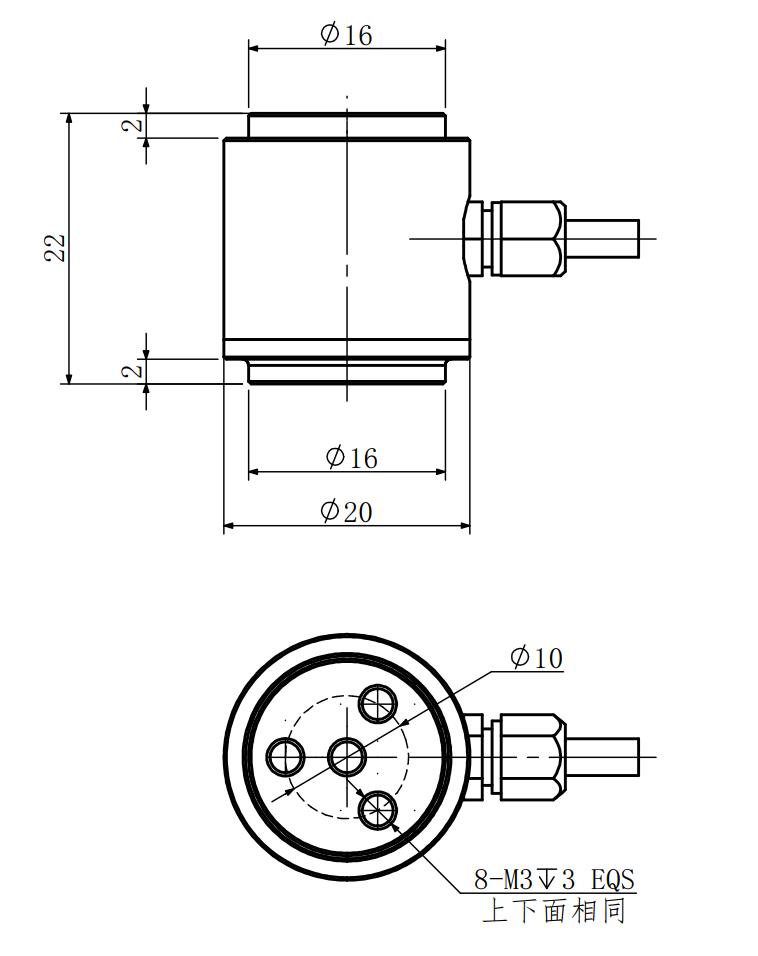

Mounting Dimension

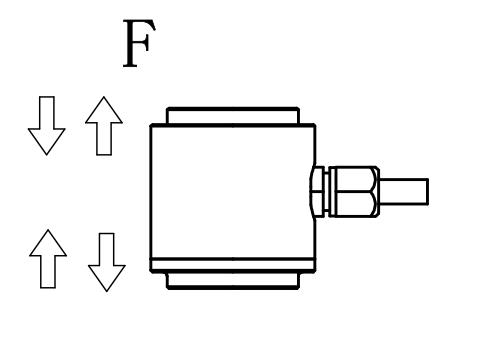

Load Direction

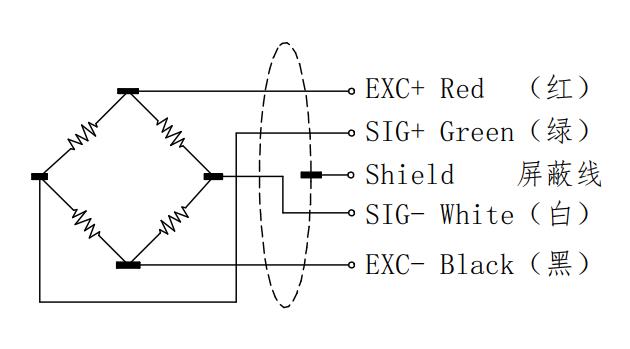

Wiring Code

Specifications

Specifications Technique
Capacity 20,50,100,200,300,500,1000,2000N
Rated output 2.0±10%mV/V
Zero balance ±2% F.S.
Non-linearity 0.05%F.S.
Hysteresis 0.05%F.S.
Repeatability 0.05%F.S.
Temp.effect on output 0.05%F.S./10℃
Temp.effect on zero 0.05%F.S./10℃
Input impedance 650/350±10Ω
Output impedance 650/350±10Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3000mm
