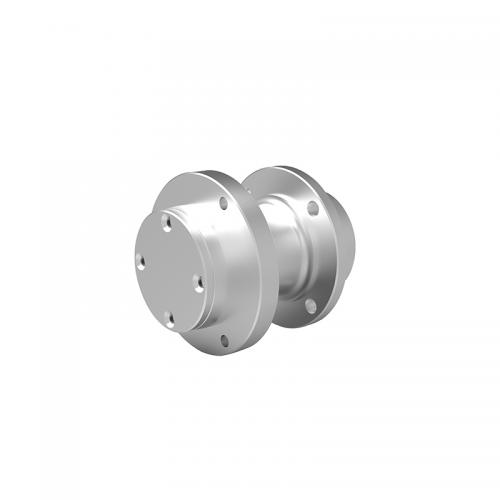

| Model: | NF403 |
| Category： | Column Load Cells |
| Capacity: | 10,20,50,75,100,150kN |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

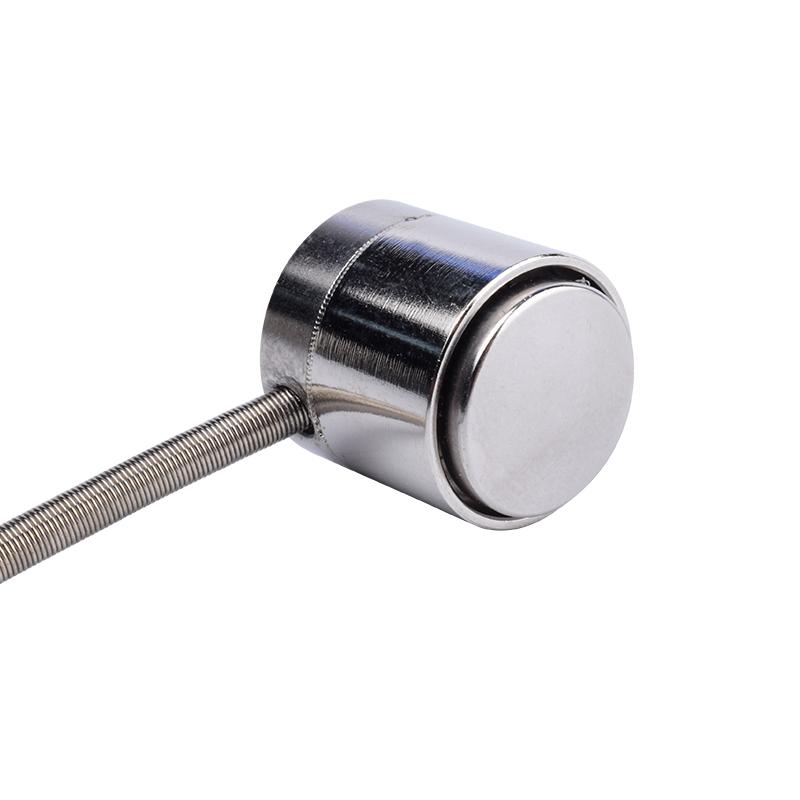

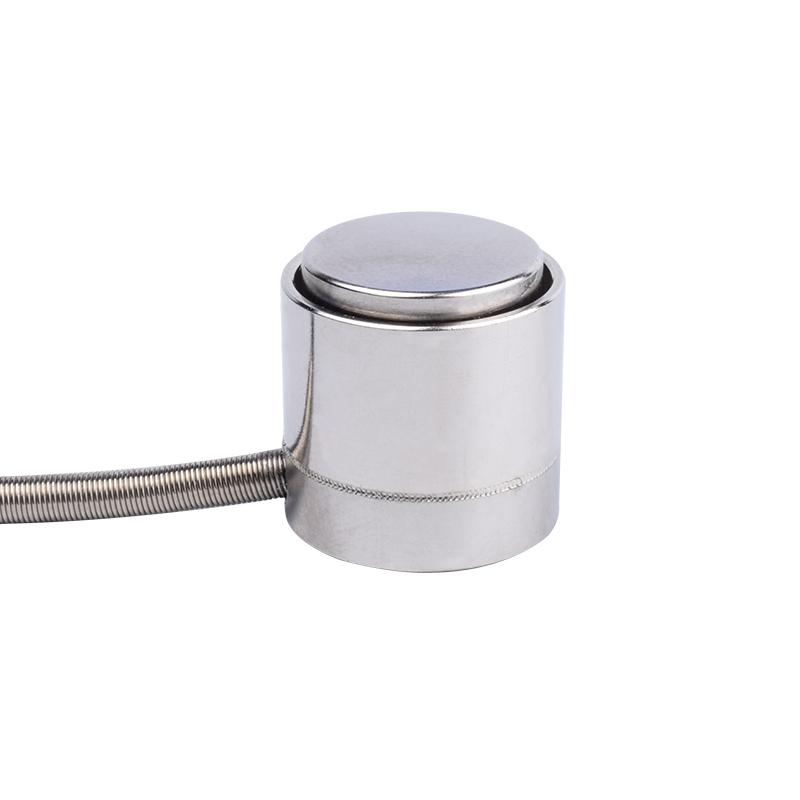

Canister load cell column type force transducer NF403 is based on foil strain gauge technology with mV signal output. Although the cylindrical force sensor is small in size, it has a large range and has six measuring ranges, respectively 0-10KN,0-20KN,0-50KN,0-75KN,0-100KN,0-150KN. The force sensor can be be used in a variety of applications.
Small amount of deformation
Applications

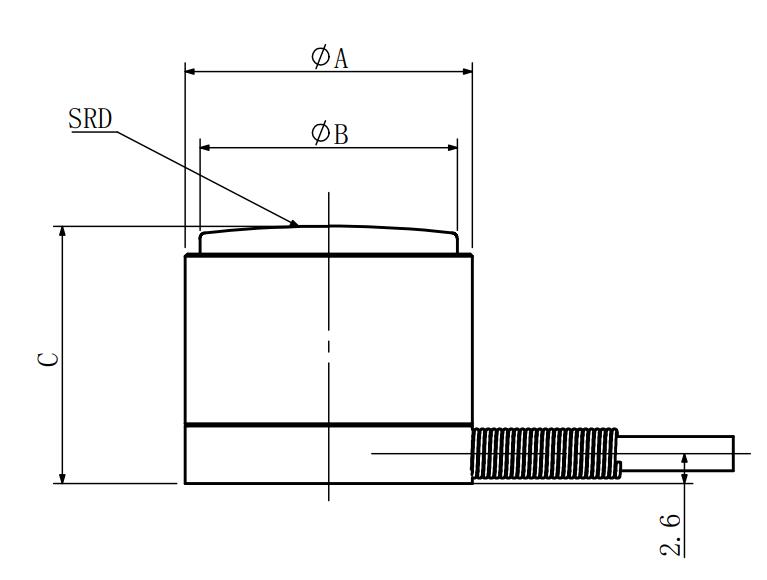

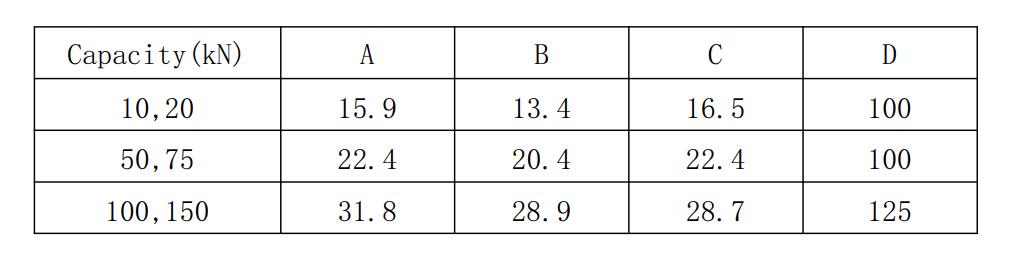

Mounting Dimension

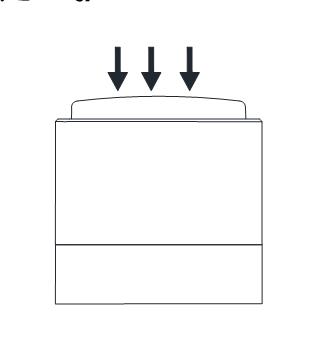

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,75,100,150kN |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 200%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ2 /Φ3×3000mm |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
