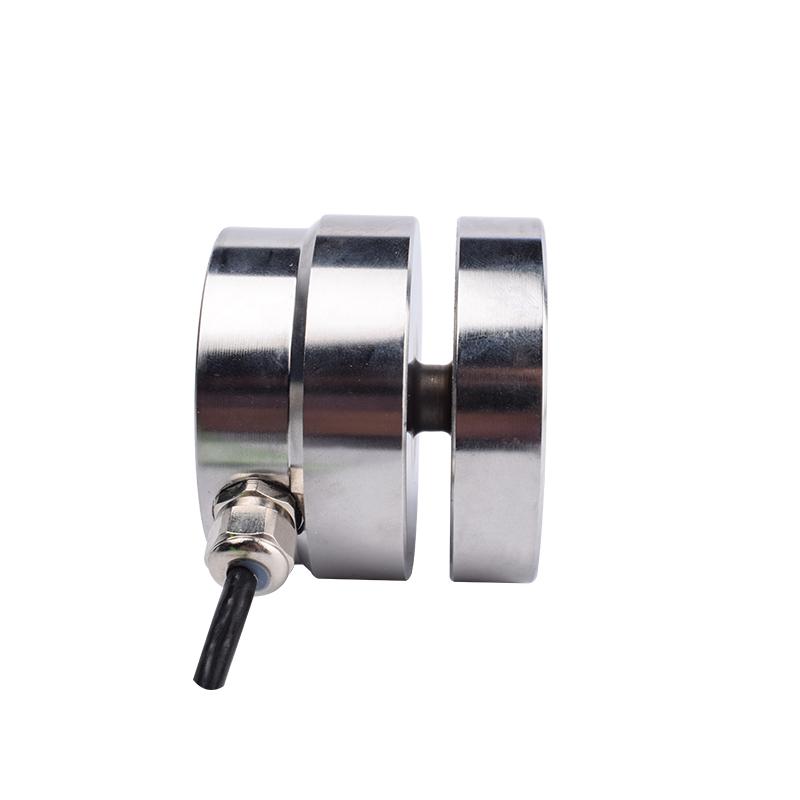

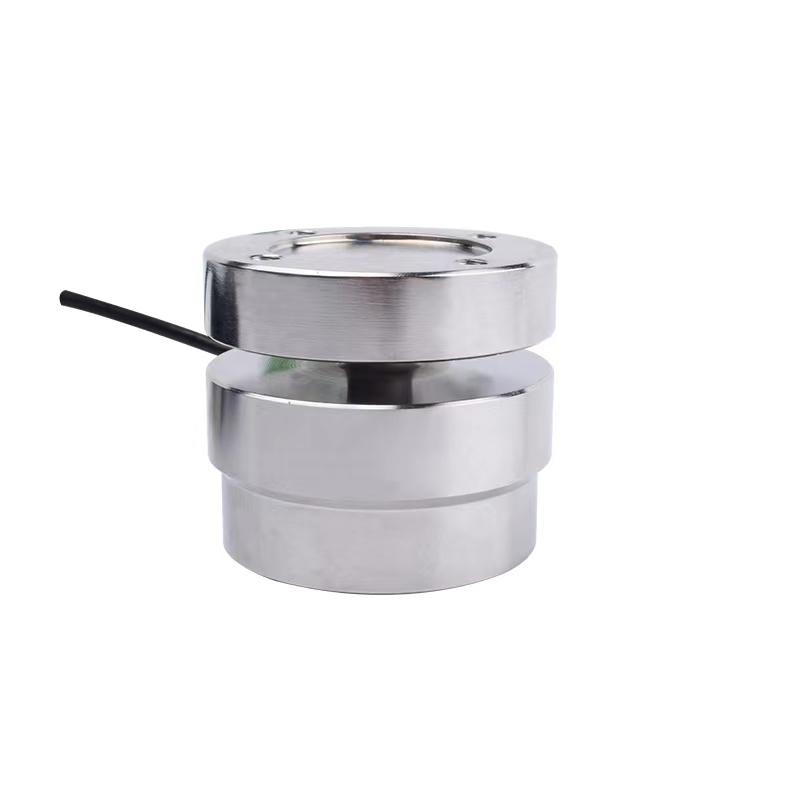

Flange load cell column type force transducer NF407

Model: NF407
Category: Column Load Cells
Capacity: 0.5,1,2,3,5,10,20,50,100kN
Rated Output: 1.5±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: 0.8/2kg
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Flange load cell column type force transducer NF407 can measure tension and pressure utilizing strain gauge technology with 0-0.5KN, 0-1KN, 0-2KN, 0-3KN, 0-5KN, 0-10KN, 0-20KN, 0-50KN, 0-100KN nine different measuring ranges to choose from. The canister load cell deliver maximum 0.1% non-linearity.

  • Compact size
  • High dynamic response frequency
  • Tension and compression bidirectional

Applications

  • Injection molding and mold industry
  • Robot grasping
  • Automobile assembly force value detection

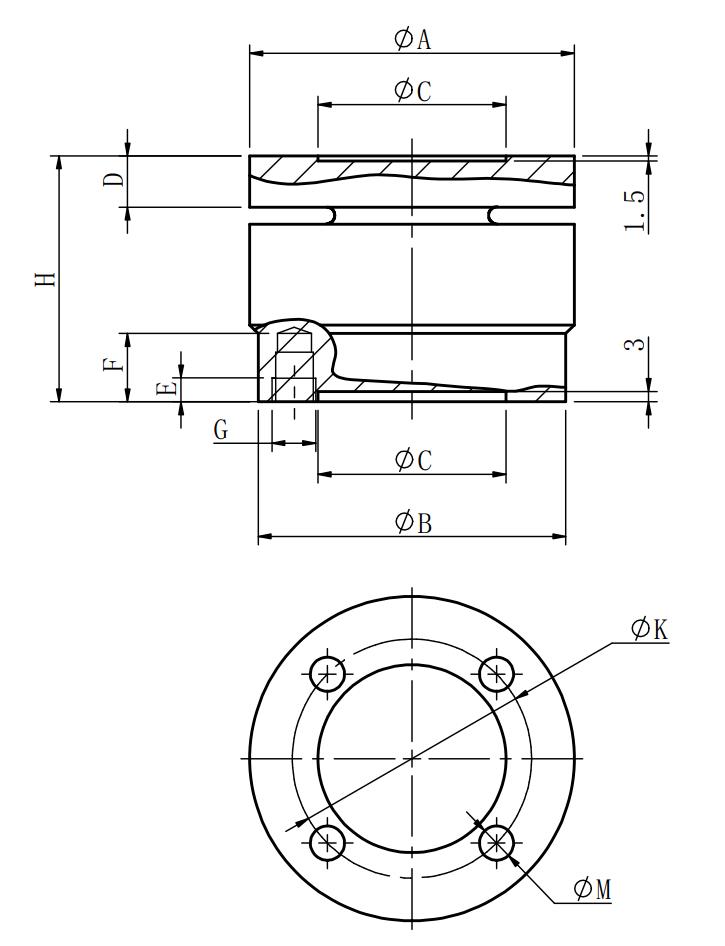

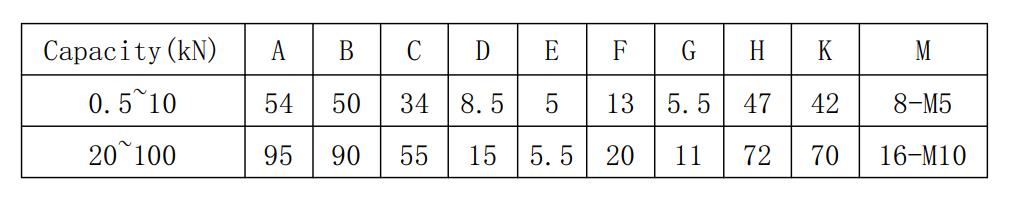

Mounting Dimension

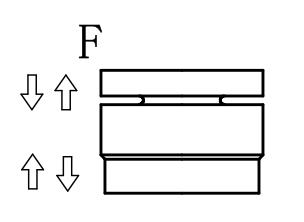

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 0.5,1,2,3,5,10,20,50,100kN
Rated output 1.5±10%mV/V
Zero balance ±0.02 mV/V
Creep30min 0.1%F.S.
Non-linearity 0.1%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.05%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±10Ω
Output impedance 700±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5V
Maximum excitation 15V
Compensated temp range -10~40
Operation temp range -20~60
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ4×3000mm
Material  Stainless steel
