Miniature force sensor
Miniature force sensor

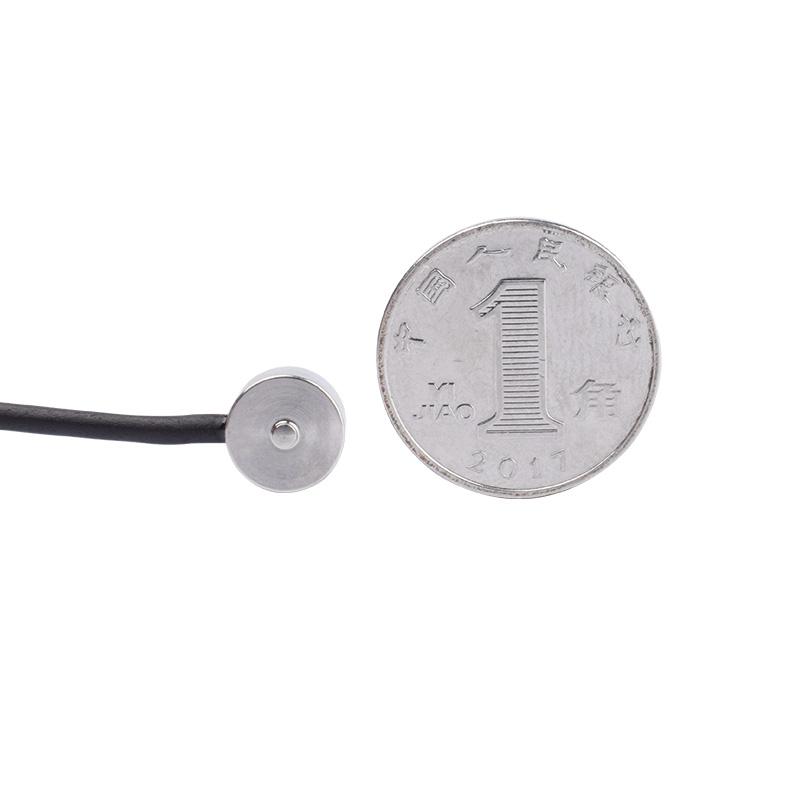

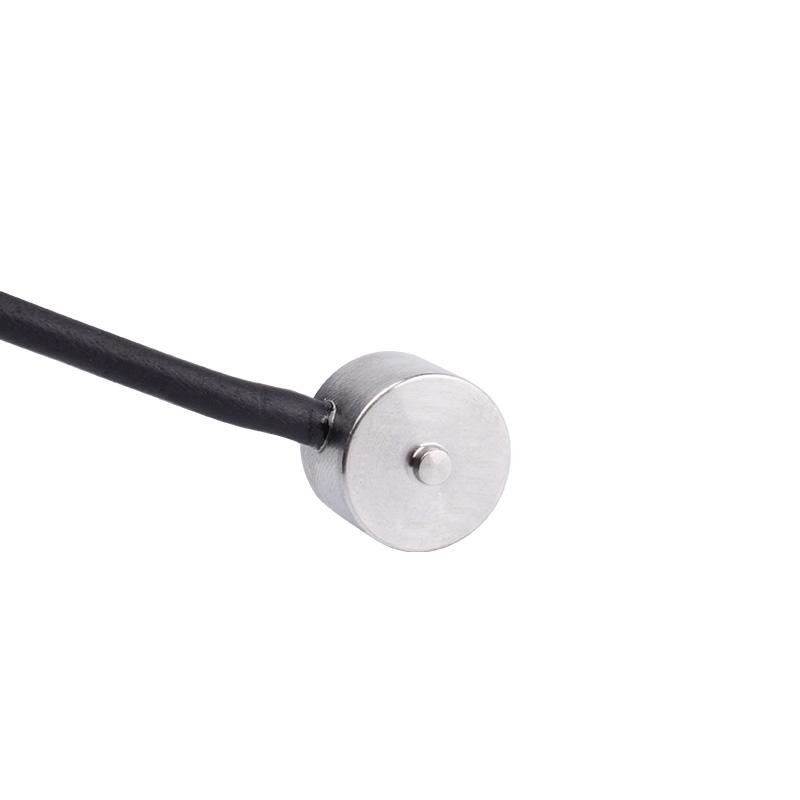

Miniature load cell with load button NF101

Model: NF101
Category: Single point load cells
Capacity: 50,100,200,500N
Rated Output: 1.0±20%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: 0.02KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Miniature load cell with load button NF101 is a very popular choice for press compression applications. The micro load cell has a Small diameter and a small size. So,the mini transducer enables  to be easily installed into machinery with limited mounting space.

  • Miniature size
  • Stainless steel

  • Low height, small deformation



Applications

  • 3C digital detection
  • Machinery with limited mounting space
  • Booster device

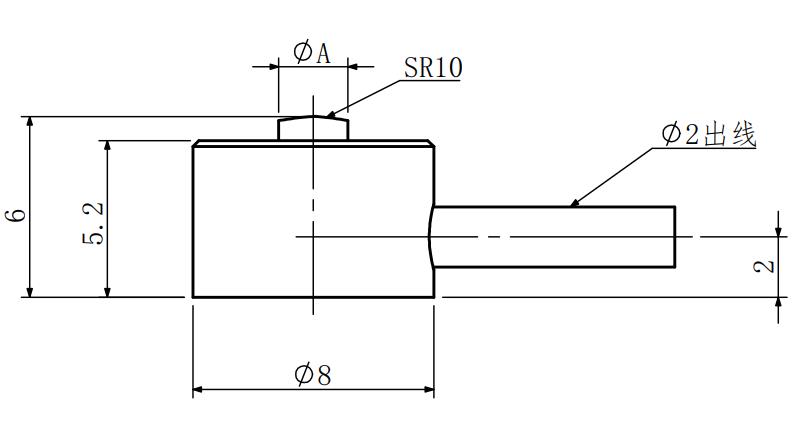

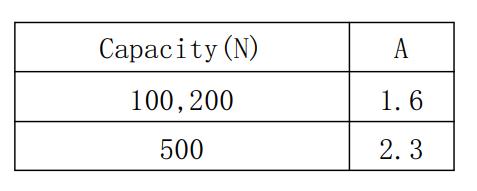

Mounting Dimension

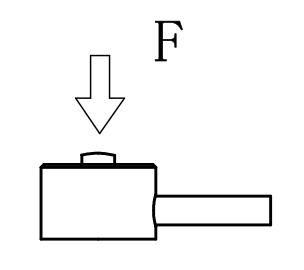

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 50,100,200,500N
Rated output 1.0±20%mV/V
Zero balance ±0.05mV/V
Non-linearity 0.5%F.S.
Hysteresis 0.5%F.S.
Repeatability 0.5%F.S.
Input impedance 600~800Ω
Output impedance 600~800Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation Voltage 15V
Compensated temp range -10~60
Operation temp range -20~80
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size φ2×3000mm
