Column load cell
Column load cell

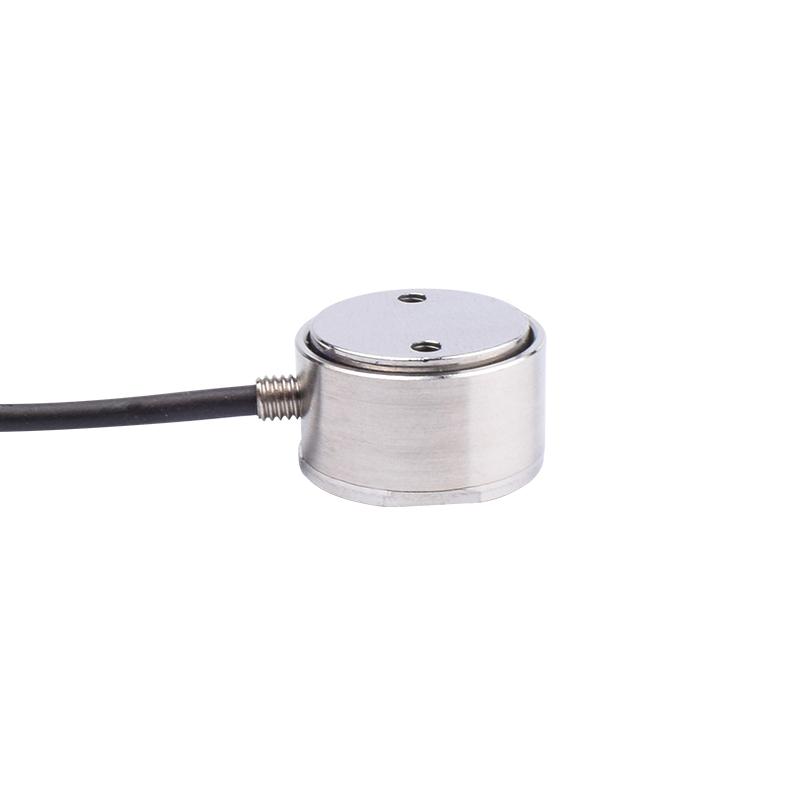

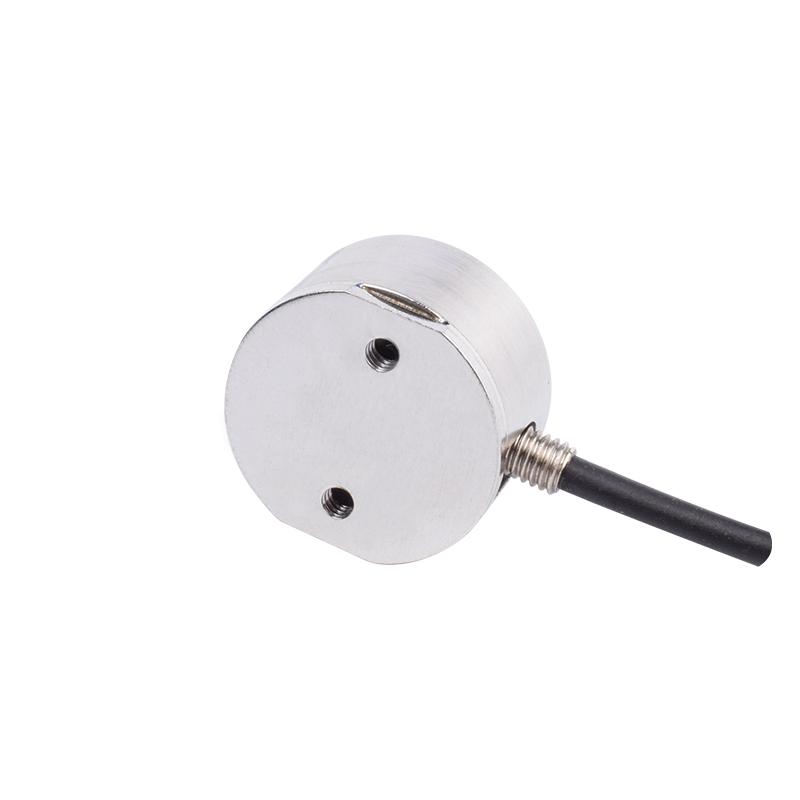

Miniature Load Cell column force transducer NF402B

Model: NF402B
Capacity: 20,50,100,200,300,500N
Rated Output: 2.0±10%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: ~
Installation Dimensions: M2 thread
Product Orgin: China
Payment: 100% payment before shipment

Features

Canister Load Cell compression force sensor NF402B  is designed to measure loads in compression and tension.This column load cells available in several ranges 0-20N,0-50N,0-100N,0-200N,0-300N,0-500N.

  • Micro sensor, low height,
  • Small deformation
  • Anti overload
  • Stainless steel

Applications

  • Automatic assembly
  • 3C product testing
  • Robotic
  • Mold assembly and other industrial testing

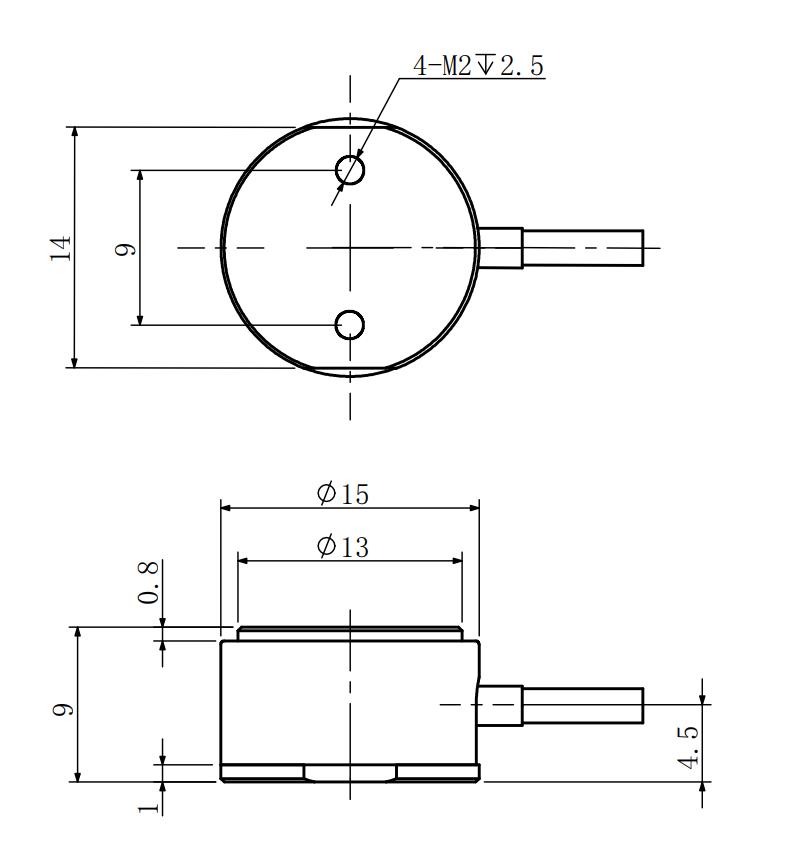

Mounting Dimension

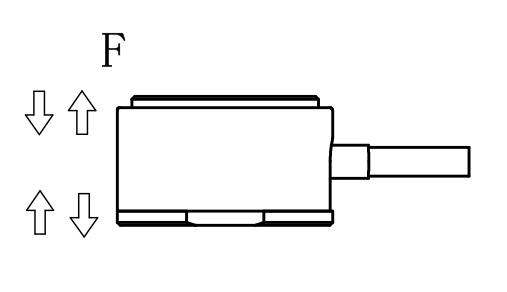

Load Direction

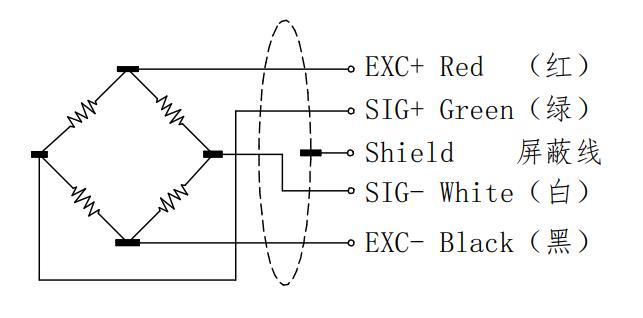

Wiring Code

Specifications

Specifications Technique
Capacity 20,50,100,200,300,500N
Rated output 2.0±10%mV/V
Zero balance ±2% F.S.
Non-linearity 0.02%F.S.
Hysteresis 0.02%F.S.
Repeatability 0.02%F.S.
Temp.effect on output 0.02%F.S./10℃
Temp.effect on zero 0.02%F.S./10℃
Input impedance 650/350±10Ω
Output impedance 650/350±10Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60℃
Operation temp range -20~80℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ2×3000mm



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
Related Products
Column sensor

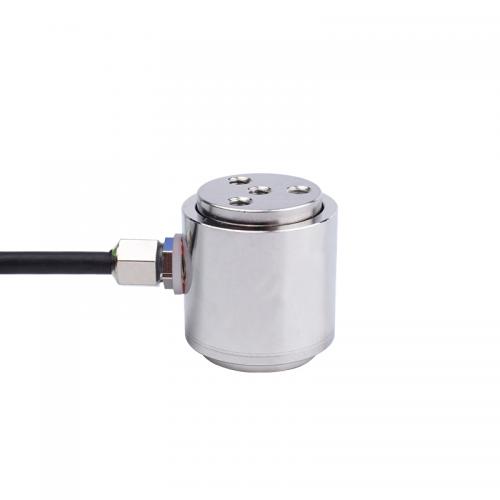

Canister Load Cell compression force sensor NF404
Model: NF404 Capacity: 20,50,100,200,300,500,1000,2000N Rated Output: 2.0±10%mV/V Material: Stainless steel Protection Class: IP65 Weight: ~ Installation Dimensions: M3 thread Product Orgin: China Payment: 100% payment before shipment
details
Column type force transducer

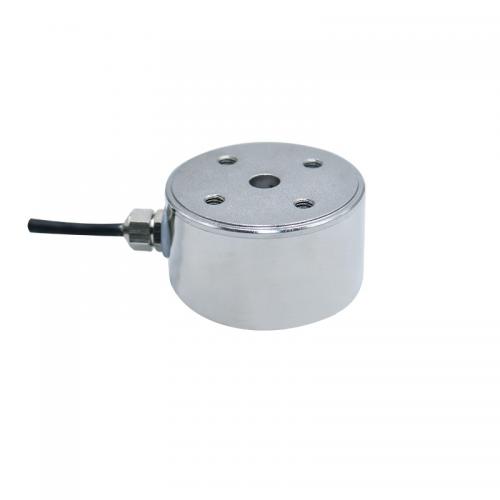

Stainless steel cylindrical load cell NF406
Model: NF406 Capacity: 0.1,0.2,0.5,1,2,5,10,20kN Rated Output: 2.0±10%mV/V Material: Stainless steel Protection Class: IP65 Weight: 0.3KG Installation Dimensions: M4 thread Product Orgin: China Payment: 100% payment before shipment
details
Column load cell

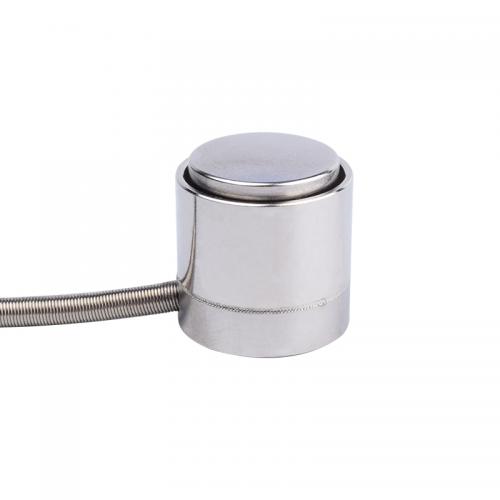

Minitype cylindrical type sensor NF401
Model: NF401 Category: Column Load Cells Capacity: 10,20,30,50N Rated Output: 2.0±10%mV/V Material: Stainless steel Protection Class: ~ Weight: ~ Installation Dimensions: As shown in the mounting dimension below Product Orgin: China Payment: 100% payment before shipment
details
Column load cell

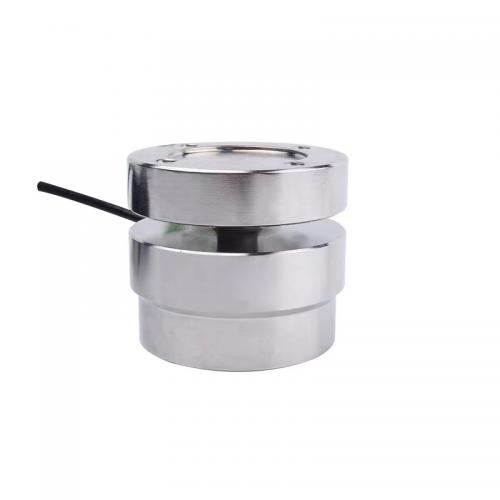

Canister load cell column type force transducer NF403
