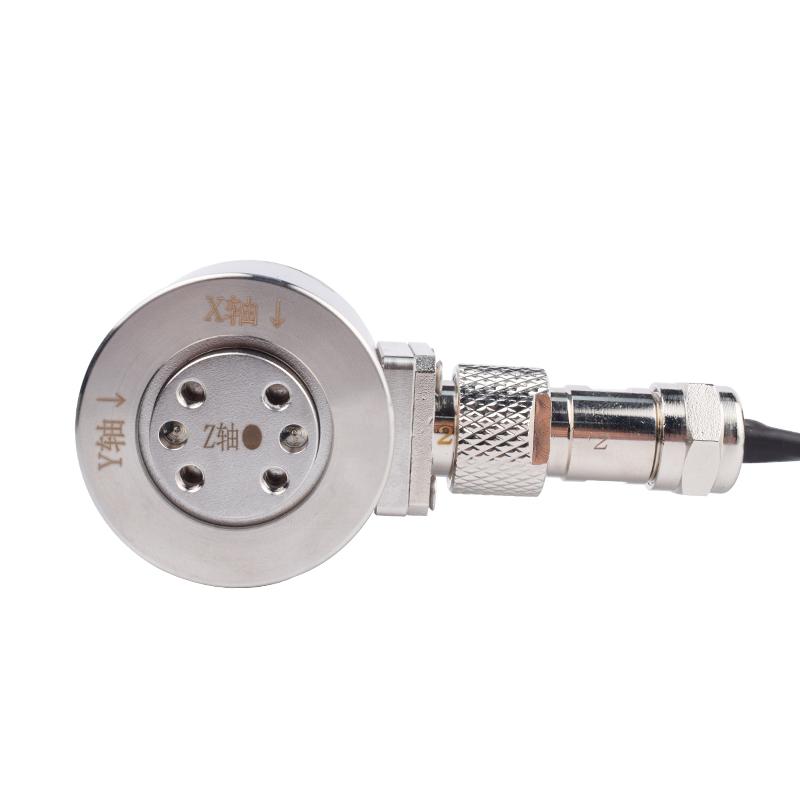

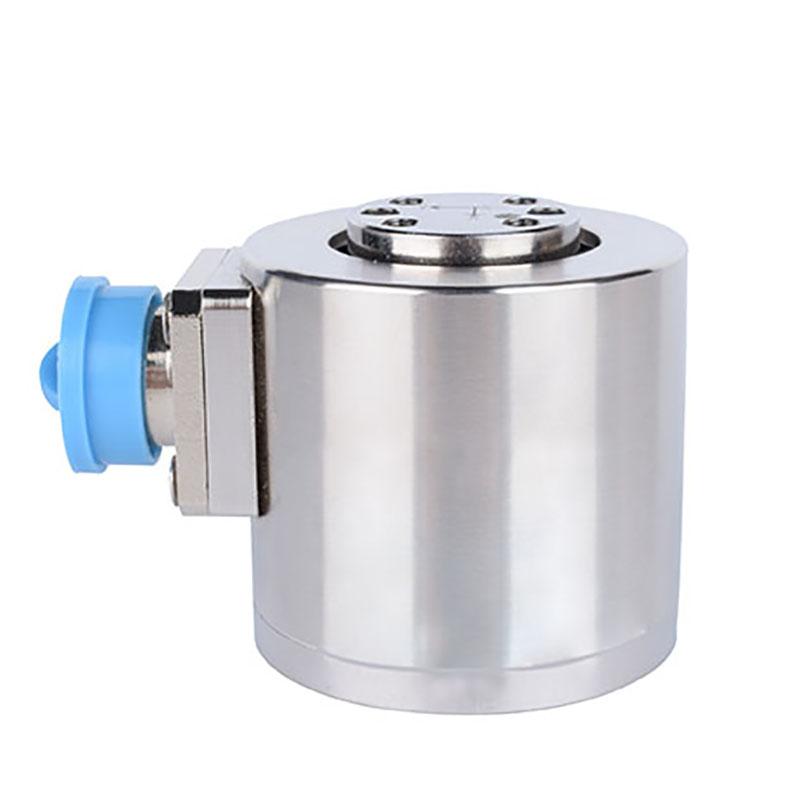

Triaxial load cell Multi-component transducer NF703

Model: NF703
Category: Multi-axis sensors
Capacity: X:50/100/200/300/500; Y:50/100/200/300/500; Z:50/100/200/300/500/1000
Rated Output: ≈1.0mV/V
Material: Alloy steel
Protection Class: IP66
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Triaxial load cell Multi-component transducer NF703 supports both tension and compression force measurement in each axis. The 3-axis force sensor is equipped with multiple strain gage bridges. Up to 3 forces (tension and compression)  can be measured simultaneously through the multi-component transducer.

  • Compact structure
  • High comprehensive precision
  • Good long term stability



Applications

  • Industrial test benches
  • Automation equipment
  • Crash tests

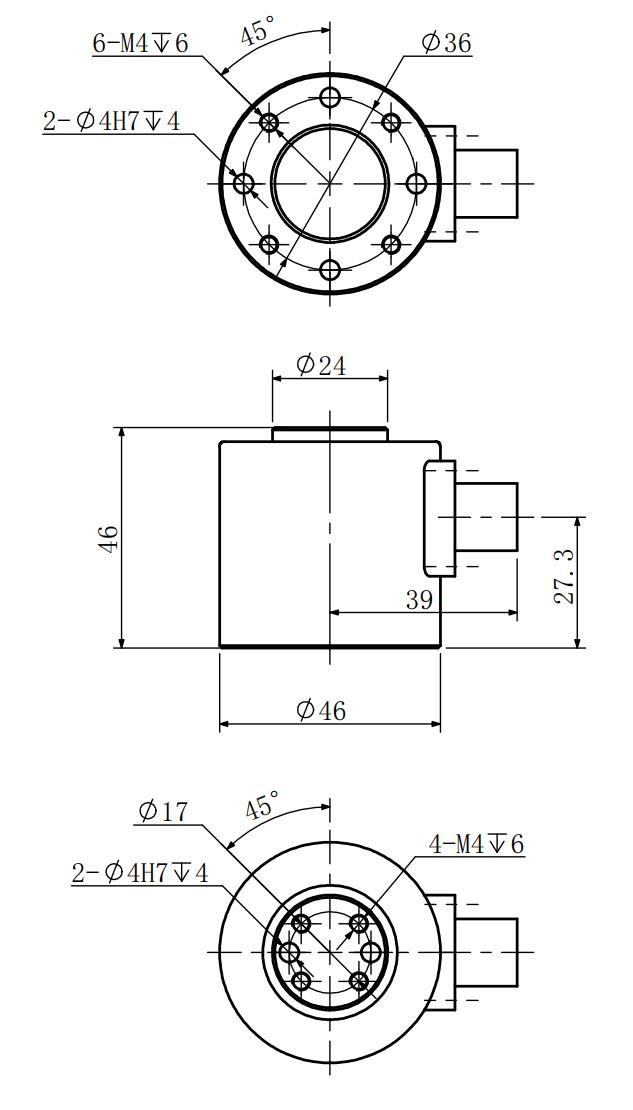

Mounting Dimension

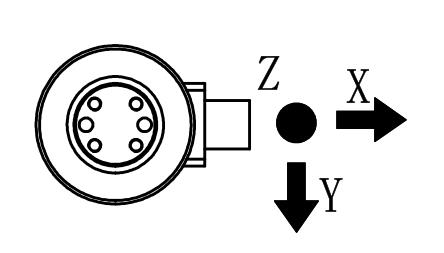

Load Direction

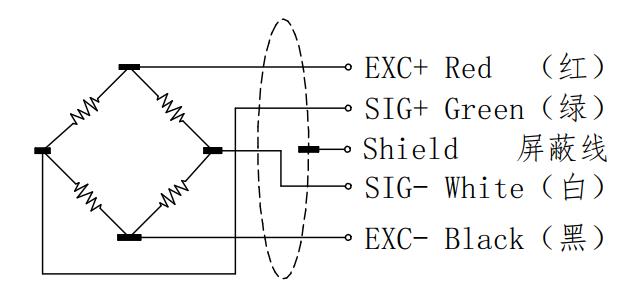

Wiring Code

Specifications

Specifications Technique
CapacityN X:50/100/200/300/500;Y:50/100/200/300/500;Z:50/100/200/300/500/1000
Rated output 1.0mV/V
Zero balance ±2%F.S.
Non-linearity 0.3%F.S.
Hysteresis 0.3%F.S.
Repeatability 0.1%F.S.
Interference error 0.1%F.S.
Temp.effect on output 0.1%F.S./10
Temp.effect on zero 0.1%F.S./10
Input impedance 350±10Ω
Output impedance 350±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~40
Operation temp range -20~75
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ5×3000mm
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
