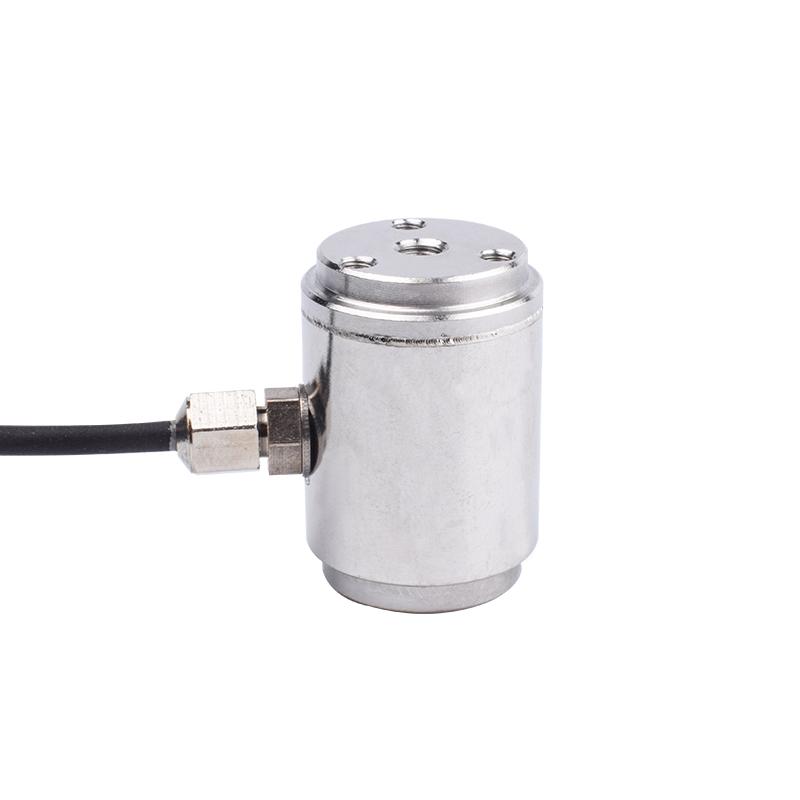

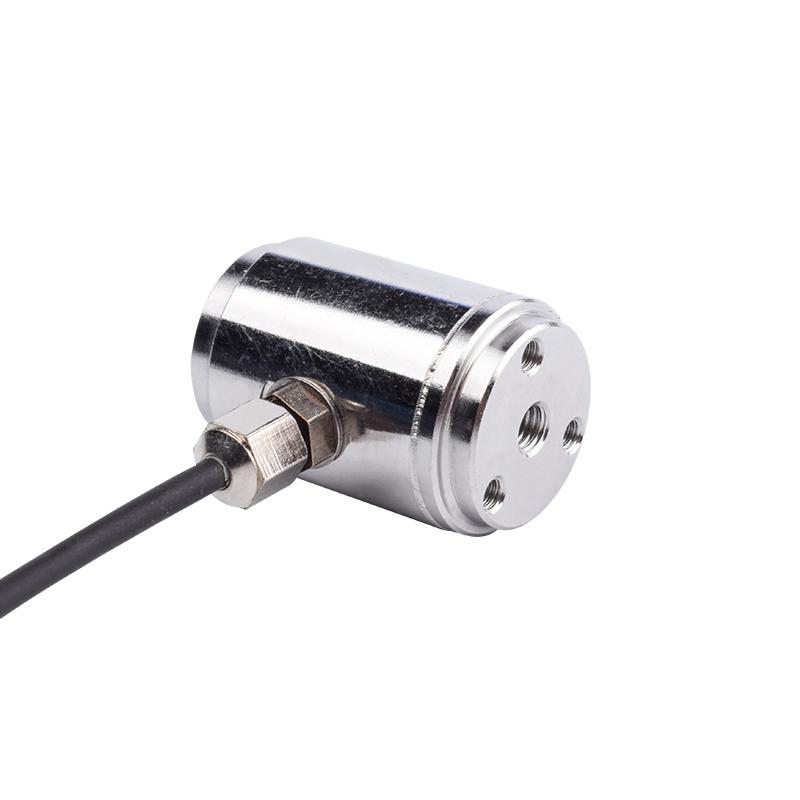

Cylindrical type sensor pull pressure load cell NF402

Model: NF402
Category: Column Load Cells
Capacity: 10,20,30,50,500,100,200,300,500N
Rated Output: 2.0±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Cylindrical type sensor pull pressure load cell NF402 is made of stainless steel, sealed, welded, oil-resistant, water-resistant, and corrosion-resistant. The column load cell is designed in a circular shape for easy installation and use. The tension and compression force transducer is a explosion-proof product, which can be used in harsh environments and hazardous situations.

  • Small size
  • High dynamic response frequency

  • High precision

Applications

  • Testing machine
  • Industrial weighing system
  • Assembly force monitoring

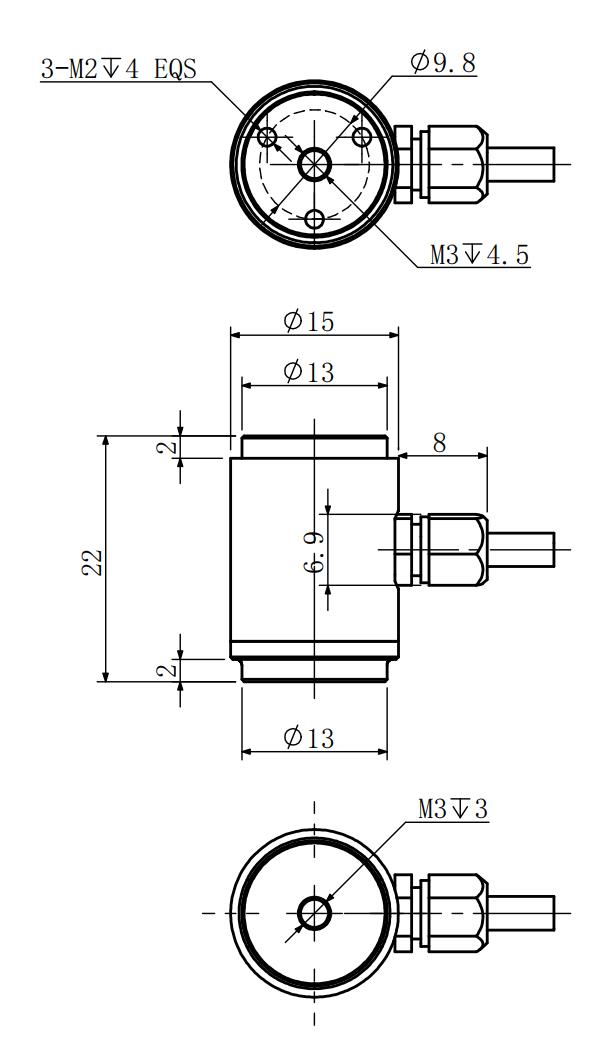

Mounting Dimension

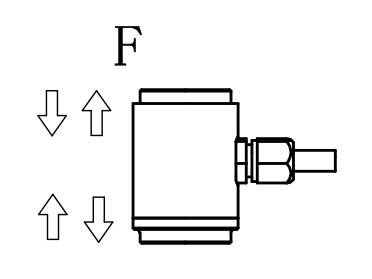

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 10,20,30,50,500,100,200,300,500N
Rated output 2.0±10%mV/V
Zero balance ±2% F.S.
Non-linearity 0.05%F.S.
Hysteresis 0.05%F.S.
Repeatability 0.05%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 650/350±10Ω
Output impedance 650/350±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3000mm



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
