Weighing sensor

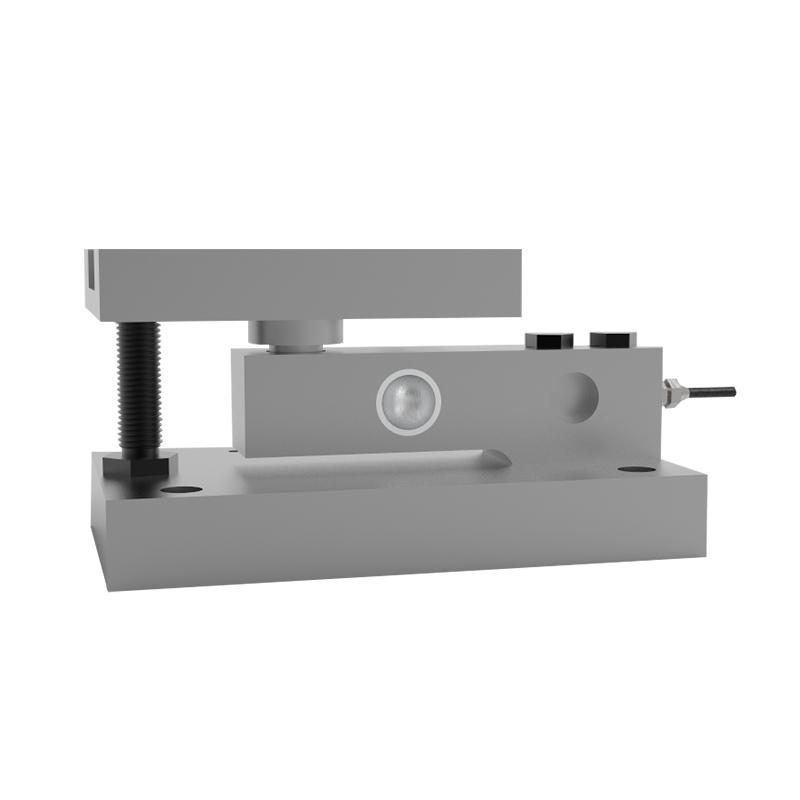

Weighing modules force sensor 0.25-20t NF520

Model: NF520
Category: Weighing module
Capacity: 0.25-20t
Rated Output: 2.0 ± 10% mV/V 3.0 ± 10%mV/V ( Option)
Material: Alloy steel/stainless steel
Protection Class: IP65(<500kg);IP68(≥500kg)
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Weighing modules force sensor 0.25-20t NF520 is based on foil strain gauge technology with mV signal output. The weighing sensor can be used in various harsh environments and easily installed on various tanks. The weight is introduced via the pressure piece in the load cell and transferred to the elastomer.

  • Easy Installation
  • Long-term stability

  • Suitable for harsh environment

Applications

  • Conveying raceway scale
  • Batching scale
  • Industrial weighing system

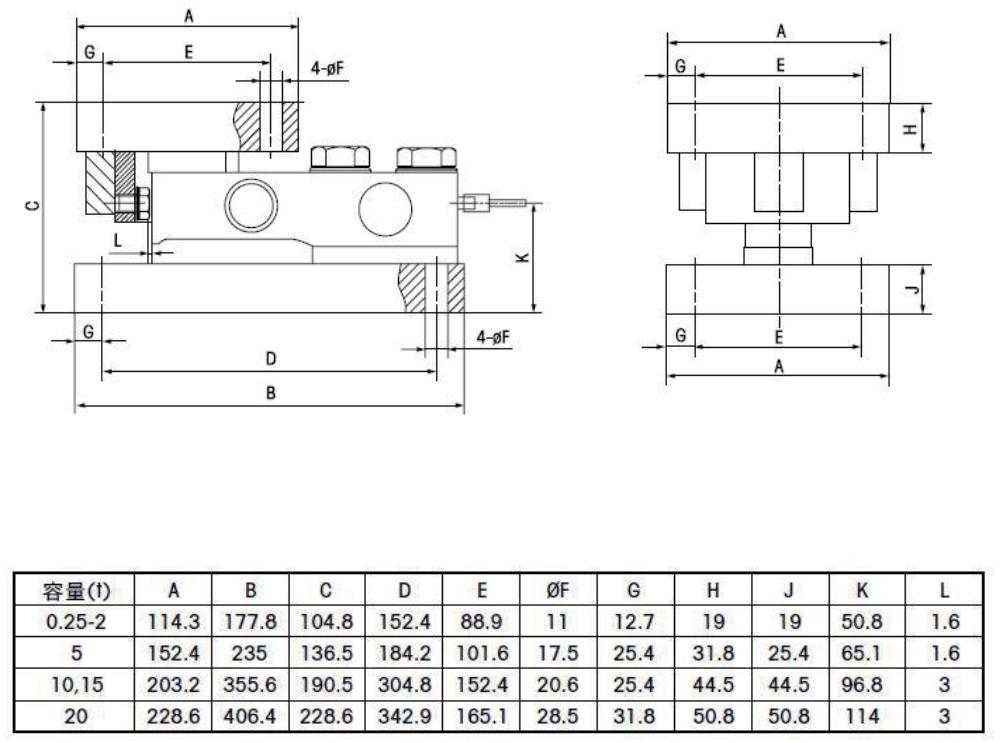

Mounting Dimension

Wiring Code

Specifications

Specifications Technique
Capacity 0.25-20t
Rated output 2.0 ± 10% mV/V 3.0 ± 10%mV/V ( Option)
Zero balance ±2% mV/V
Non-linearity 0.03%F.S.
Hysteresis 0.03%F.S.
Repeatability 0.03%F.S.
Creep(30min) 0.03%F.S.
Temp.effect on output 0.025%F.S./10
Temp.effect on zero 0.025%F.S./10
Input impedance 385 ± 5Ω
Output impedance 350 ± 5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 10V
ΦMaximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ5×6000mm
Material Alloy steel/stainless steel
IP Class IP65(<500kg);IP68(500kg)



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
