Dynamic torque cell
Dynamic torque cell

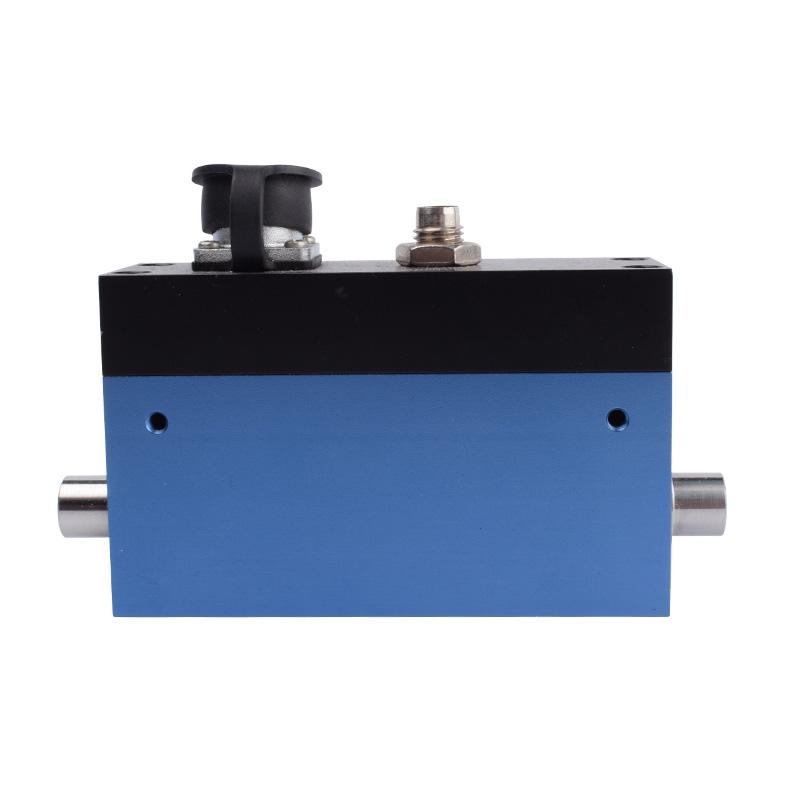

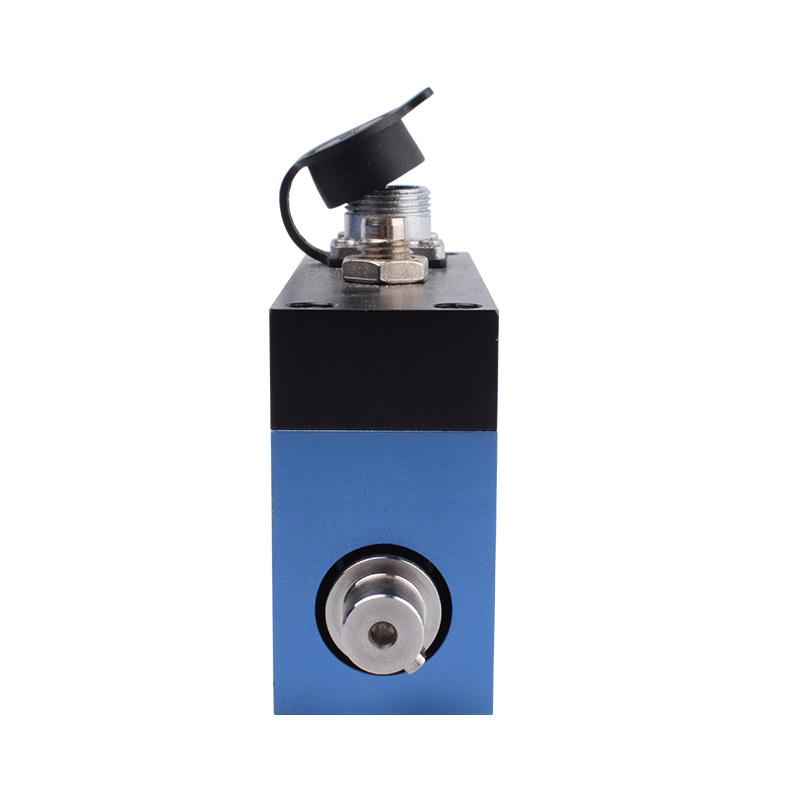

Contact rotary torque sensor NF605

Model: NF605
Category: Torque Sensor
Capacity: 0.1,0.2,0.3,0.5,1,2,3,5Nm
Rated Output: 1.0~1.5mV/V
Material: ~
Protection Class: IP66
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Contact rotary torque sensor NF605 is powered by a brush and can measure the positive and negative torque values. Both ends of this dynamic torque load cell are connected by keys, so it is easy to install and use. This shaft-to-shaft torque sensor measures a maximum speed of 1800 RPM and offers 0-0.1NM, 0-0.2NM, 0-0.3NM, 0-0.5NM, 0-1NM, 0-2NM, 0-3NM, 0-5NM eight torque measuring ranges to choose from.

  • Stable and reliable performance
  • Easy to install
  • High precision

Applications

  • Agitator torque control
  • Torque measurement of engines, pumps
  • Automatic machine tool torque

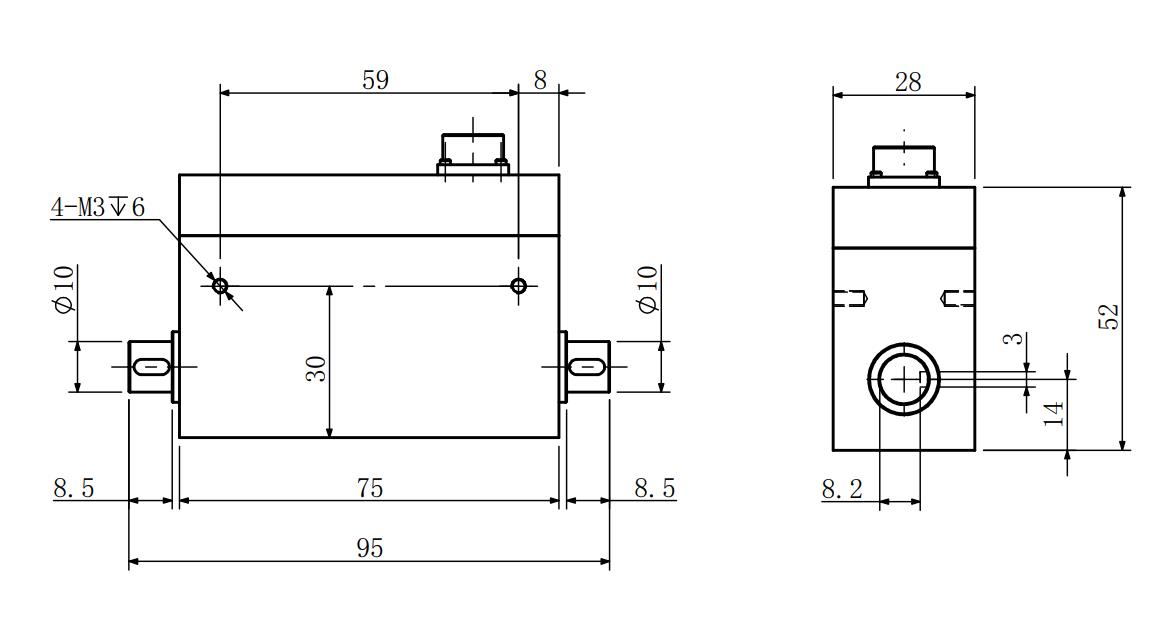

Mounting Dimension

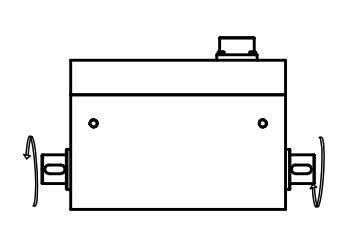

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 0.1,0.2,0.3,0.5,1,2,3,5Nm
Rated output 1.0~1.5mV/V
Zero balance ±1% F.S.
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.1%F.S./10
Temp.effect on zero 0.1%F.S./10
Input impedance 350±10Ω
Output impedance 350±10Ω
Insulation 2000MΩ/100VDC
Recommended excitation 12V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -30~60
Safe overload 120%F.S.
Ultimate overload 150%F.S.
Cable size 3m
IP Class IP66
