Dynamic torque cell
Dynamic torque cell

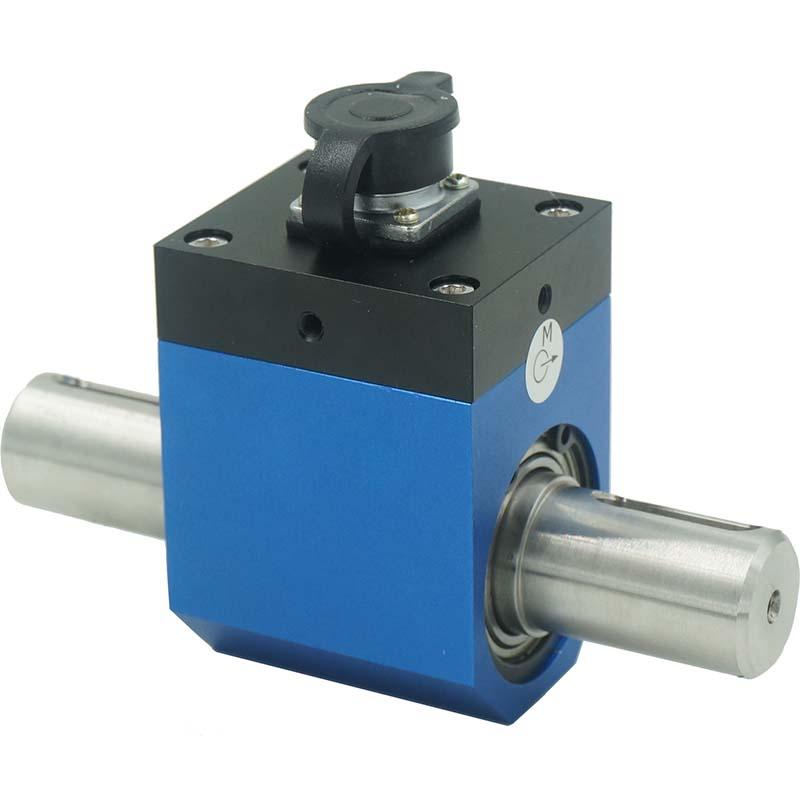

Multirange rotational torque transducer NF604

Model: NF604
Category: Torque Sensor
Capacity: 0.1,0.2,0.3,0.5,1,2,3,5,10,20,30,50,100,200,300,500N.m
Rated Output: 1.0~1.5mV/V
Material: ~
Protection Class: IP66
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Multirange rotational torque transducer NF604 uses metal foil strain gauge technology. The dynamic torque load cell is an integrated product composed of a sensitive element and an integrated circuit. This rotational torque transducer has no wearing parts such as a collecting ring, so it can operate at high speed for a long time.

  • Compact structure
  • Multirange
  • High precision

Applications

  • Industrial measurement
  • Screw locking torque monitoring
  • Automatic machine tool torque

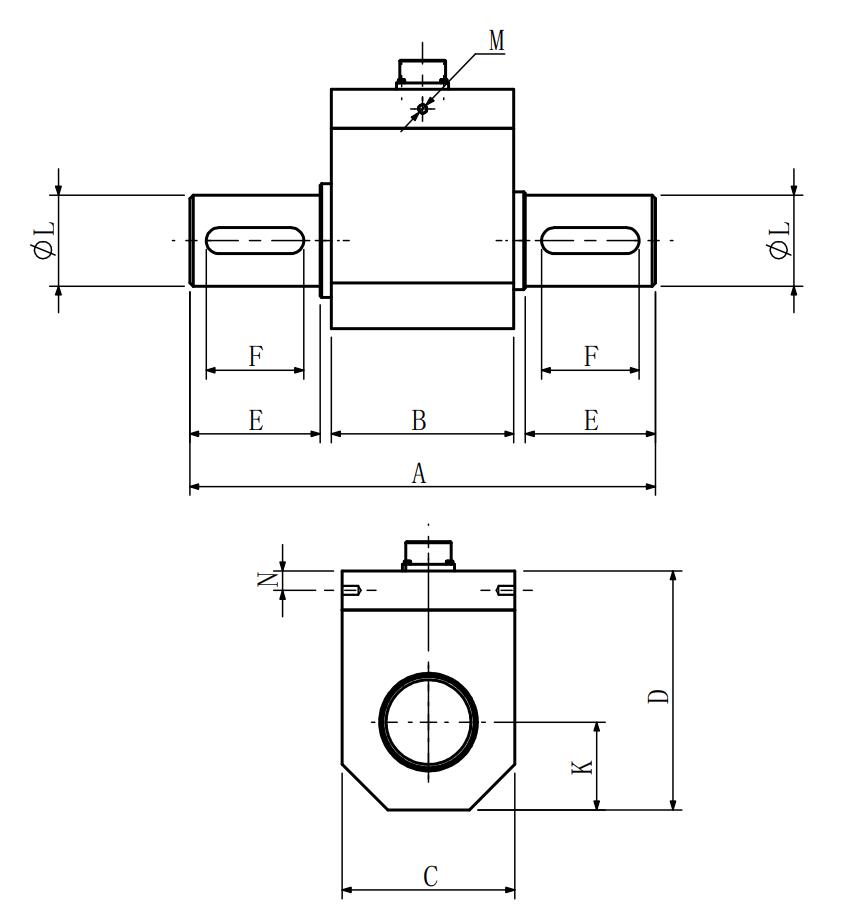

Mounting Dimension

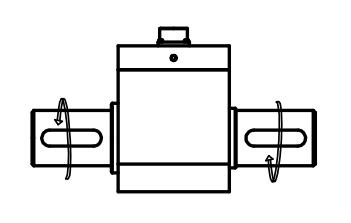

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 0.1,0.2,0.3,0.5,1,2,3,5,10,20,30,50,100,200,300,500N.m
Rated output 1.0~1.5mV/V
Zero balance ±1% F.S.
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.02%F.S./10
Temp.effect on zero 0.02%F.S./10
Input impedance 350/700±10Ω
Output impedance 350/700±10Ω
Insulation 2000MΩ/100VDC
Recommended excitation 12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~60
Safe overload 120%F.S.
Ultimate overload 150%F.S.
Cable size 3m
IP Class IP66
