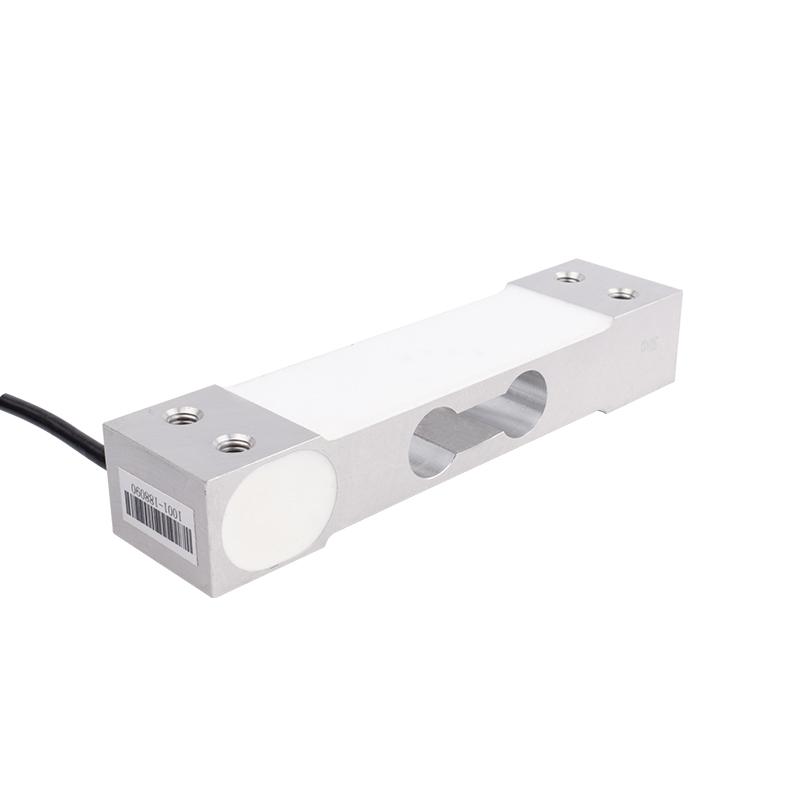

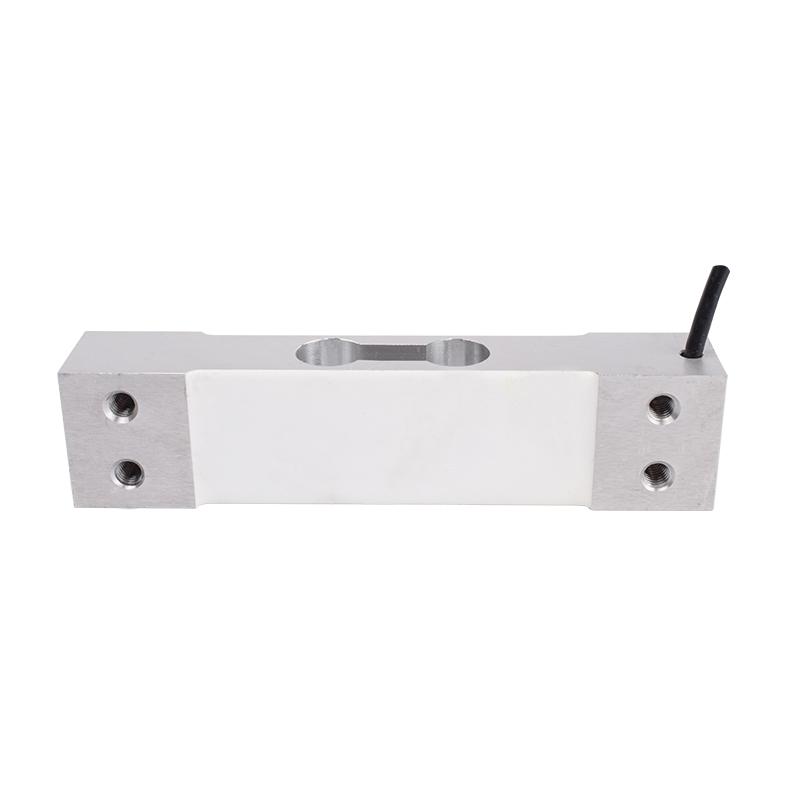

Shear beam load cell 3kg,6kg,10kg,20kg,30kg NF504

Model: NF504
Category: Beam Load Cells
Capacity: 3,6,10,20,30kg
Rated Output: 2.0±10%mV/V
Material: Aluminum alloy
Protection Class: IP65
Weight: 0.1KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Shear beam load cell 3kg,6kg,10kg,20kg,30kg NF504 measures force with mV/V output from the wheatstone bridge. The cantilever beam sensor configuration allows for precise measurement results up to accuracy class C3. The non-linearity of this bending beam load cell can be achieved maximum 0.015%F.S.

  • Strong resistance to partial load
  • High precision
  • Easy to install

Applications

  • Electronic scale
  • Belt weighing
  • Industrial weighing system

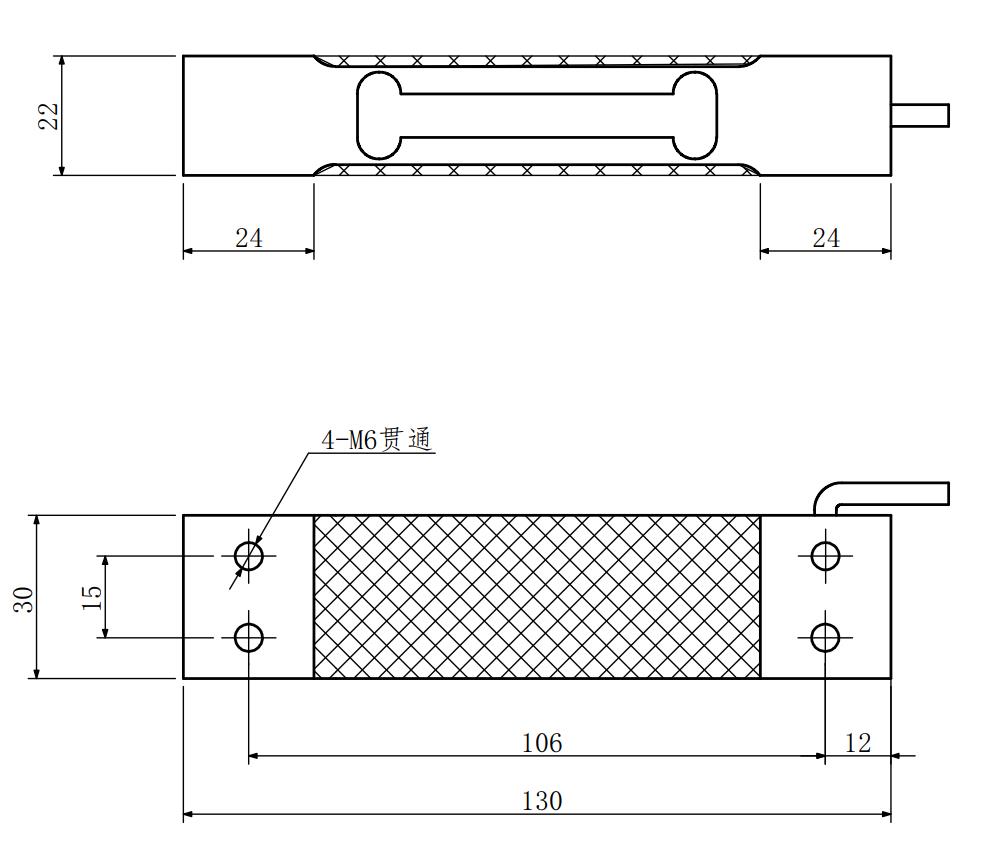

Mounting Dimension

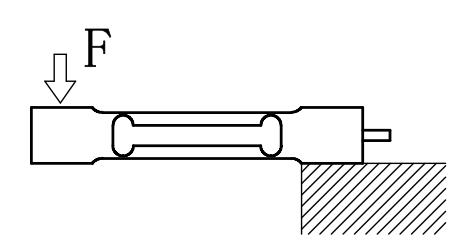

Load Direction

Wiring Code

Specifications



Specifications Technique
Capacity 3,6,10,20 ,30kg
Accuracy class C3
Rated output 2.0±10%mV/V
Zero balance ±2%F.S.
Non-linearity 0.015%F.S.
Hysteresis 0.015%F.S.
Repeatability 0.02%F.S.
Creep(30min) 0.017%F.S.
Temp.effect on output 0.02%F.S./10
Temp.effect on zero 0.02%F.S./10
Input impedance 405±10Ω
Output impedance 350±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~40
Operation temp range -20~60
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size Φ4×3000mm
Material aluminum alloy
IP Class IP65
Max.platform size 300mm×300mm
