Model: | NF106 |
Category: | Single point load cells |
Capacity: | 50,100,200,300,500,1000N |
Rated Output: | 1.5±10%mV/V |
Material: | Stainless steel |
Protection Class: | ~ |
Weight: | ~ |
Installation Dimensions: | As shown in the mounting dimension below |
Product Orgin: | China |
Payment: | 100% payment before shipment |
Features

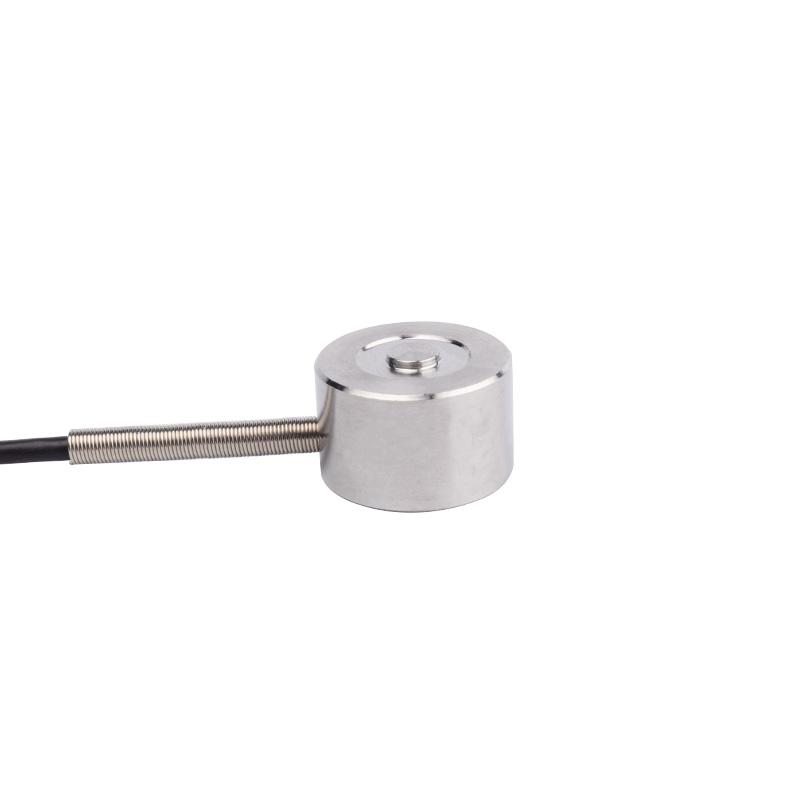

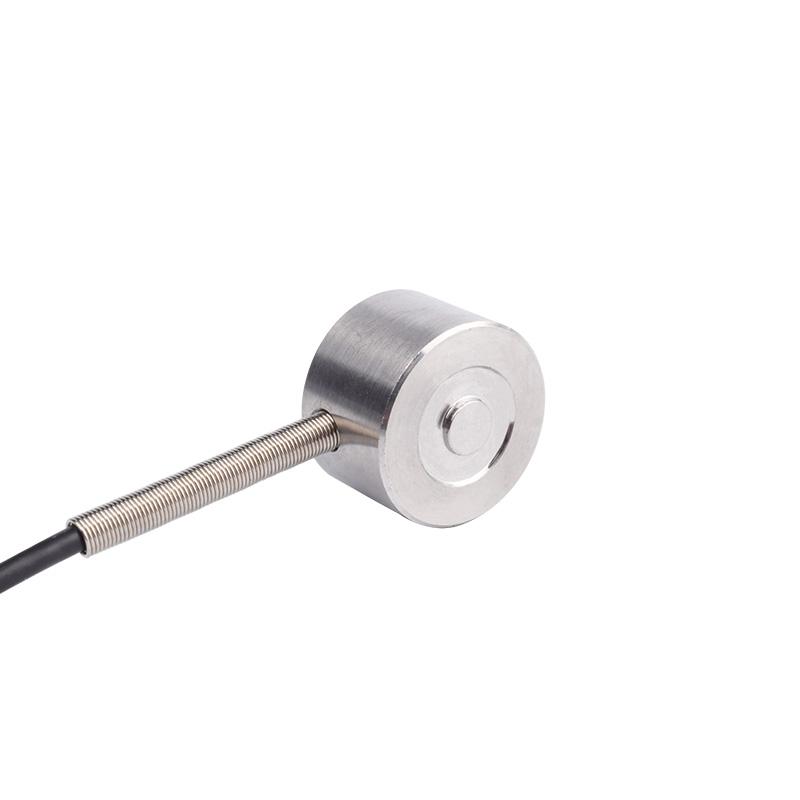

Small load button 50,100,200,300,500,1000N load cell NF106 are designed for compression force measurement application. The Load button load cell sensor can be used in limited and tight spaces due to its small package size with only 7mm in height and 15mm outer diameter.
Low height, small deformation
Applications

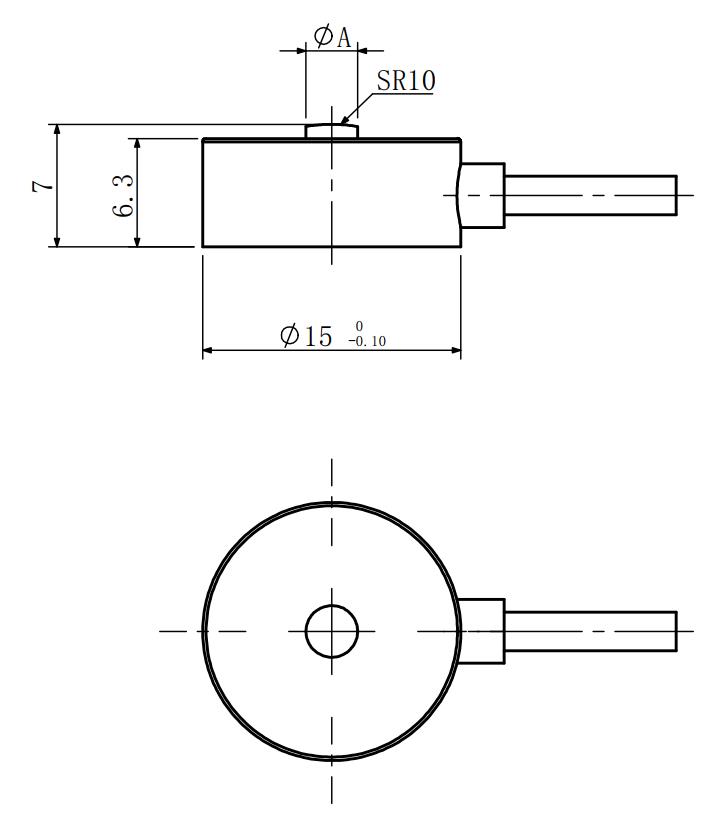

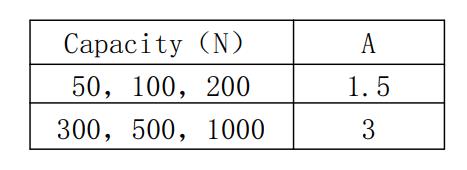

Mounting Dimension

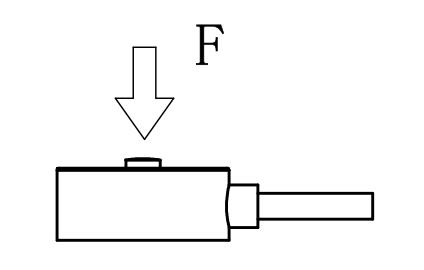

Load Direction
Wiring Code
Specifications
Specifications | Technique |
Capacity | 50,100,200,300,500,1000N |
Rated output | 1.0±20%mV/V |
Zero balance | ±0.03 mV/V |
Non-linearity | 0.50%F.S. |
Hysteresis | 0.20%F.S. |
Repeatability | 0.20%F.S. |
Temp.effect on output | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 800~1100Ω |
Output impedance | 800~1100Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operation temp range | -20~80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ2×3000mm |
Material | Stainless Steel |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
