| Model: | NF115 |
| Category： | Ring load cells |
| Capacity: | 10,20,50,100,200,500,1000,2000KG |
| Rated Output: | 1.5±20%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.3KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

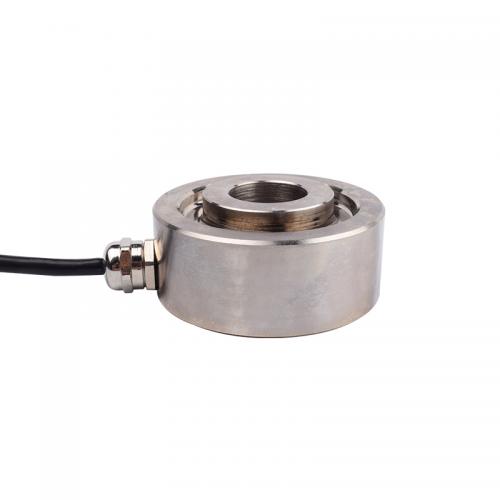

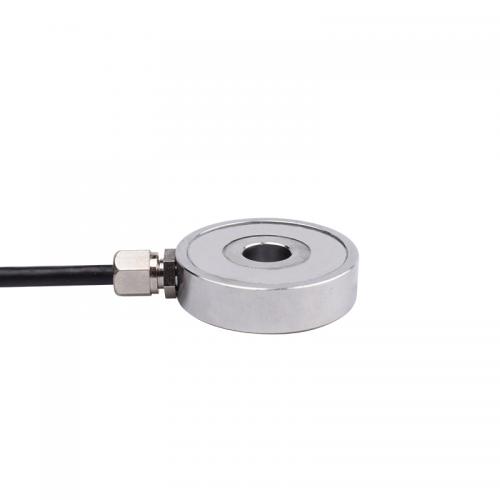

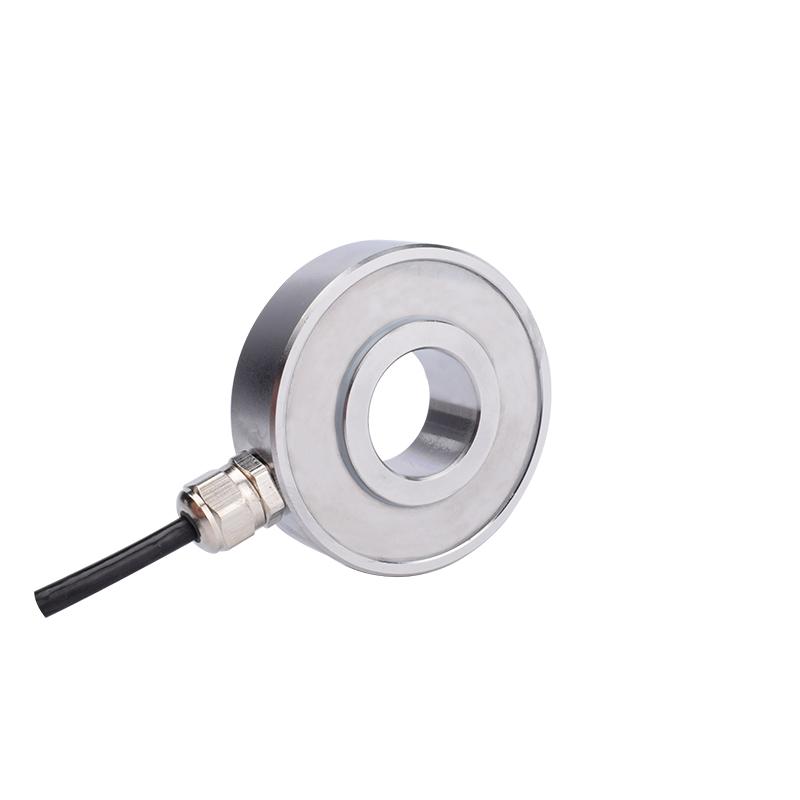

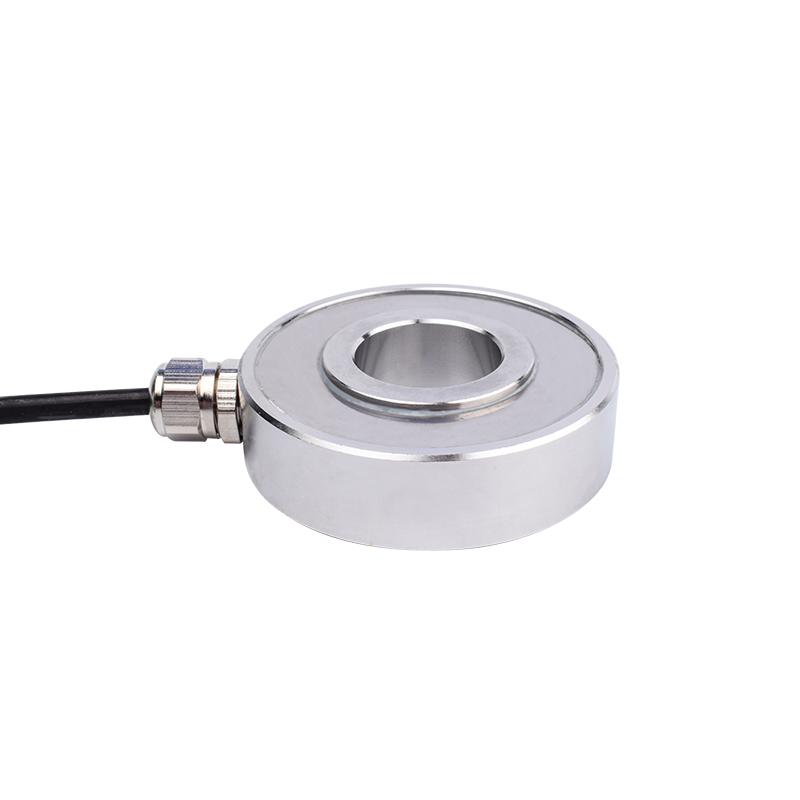

Washer type load cell ring force sensor NF115 is designed for compression force measurement application. The donut force sensor offers 0-10KG,0-20KG,0-50KG,0-100KG,0-200KG,0-500KG,0-1000KG,0-2000KG eight different measuring ranges to choose from. The annular force transducer has many ranges, so it has a wide range of applications.
Applications

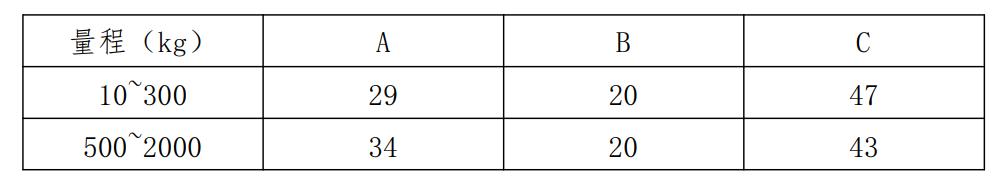

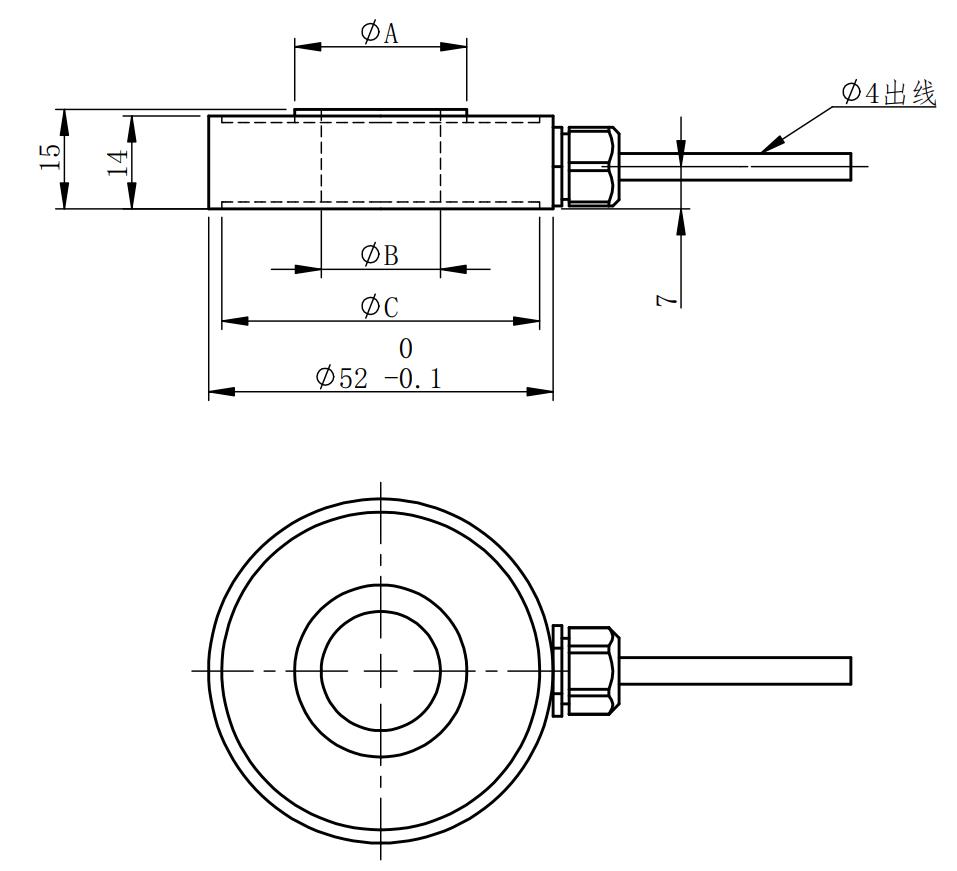

Mounting Dimension

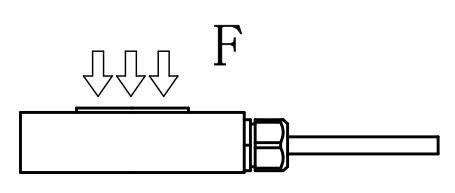

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500,1000,2000KG |
| Rated output | 1.5±20%mV/V |
| Zero balance | ± 0.05mV/V |
| Non-linearity | 0.20%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.10%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ4×3000mm |
