Triaxial force sensor multiple range load cell NF704C

Model: NF704C
Category(N): Multi-axis sensors
Capacity: X:50/100/200/500/1000/2000/3000; Y:50/100/200/500/1000/2000/3000; Z:50/100/200/500/1000/2000/3000.
Rated Output: ≈1.0mV/V
Material: ~
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

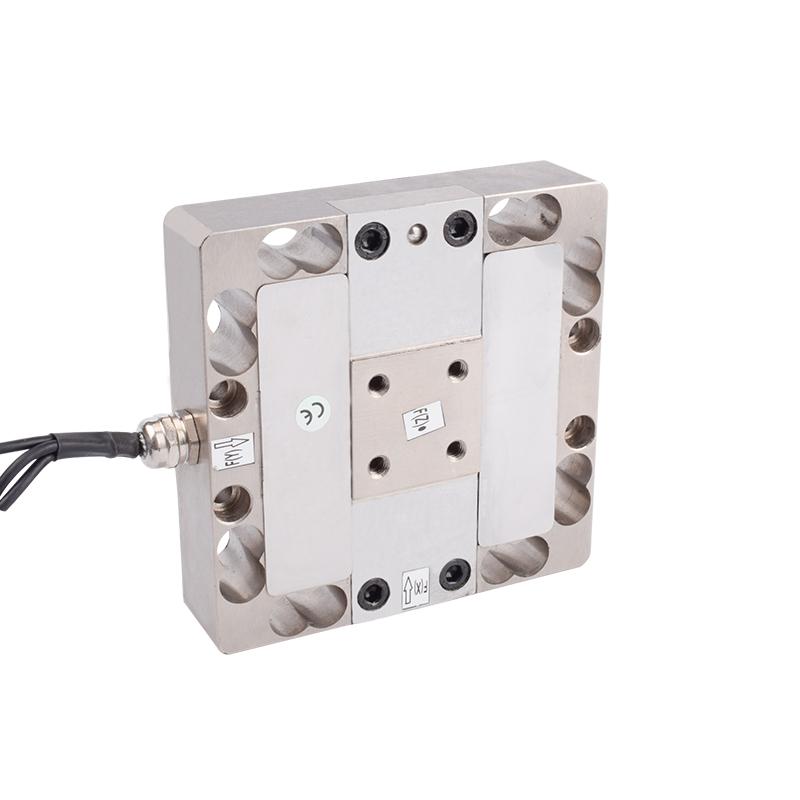

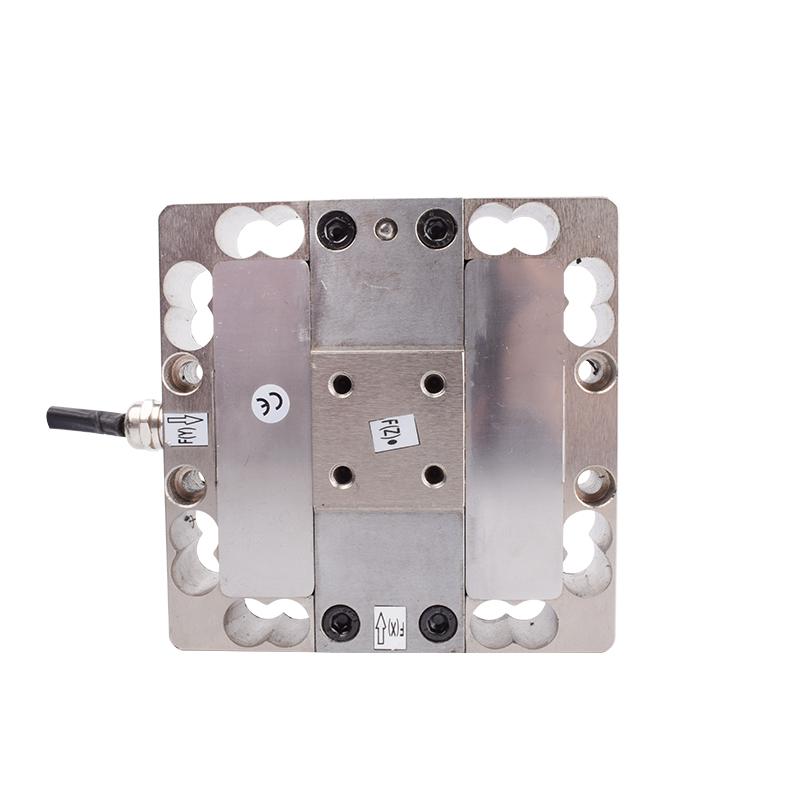

Triaxial force sensor multiple range load cell NF704C can measure forces in three vertical axes at the same time. The 3-axis load cell is available in a capacity range from 50N to 3000N for all three axes. The three dimensional force sensor is based on the strain transducer and adopts the resistance strain transducer principle. The 30mm height of this multi axis load cell allows it to be used in many situations

  • High precision
  • Strong resistance to partial load
  • Long-term stability

Applications

  • Industrial test benches
  • Force monitoring
  • Force control in robotics

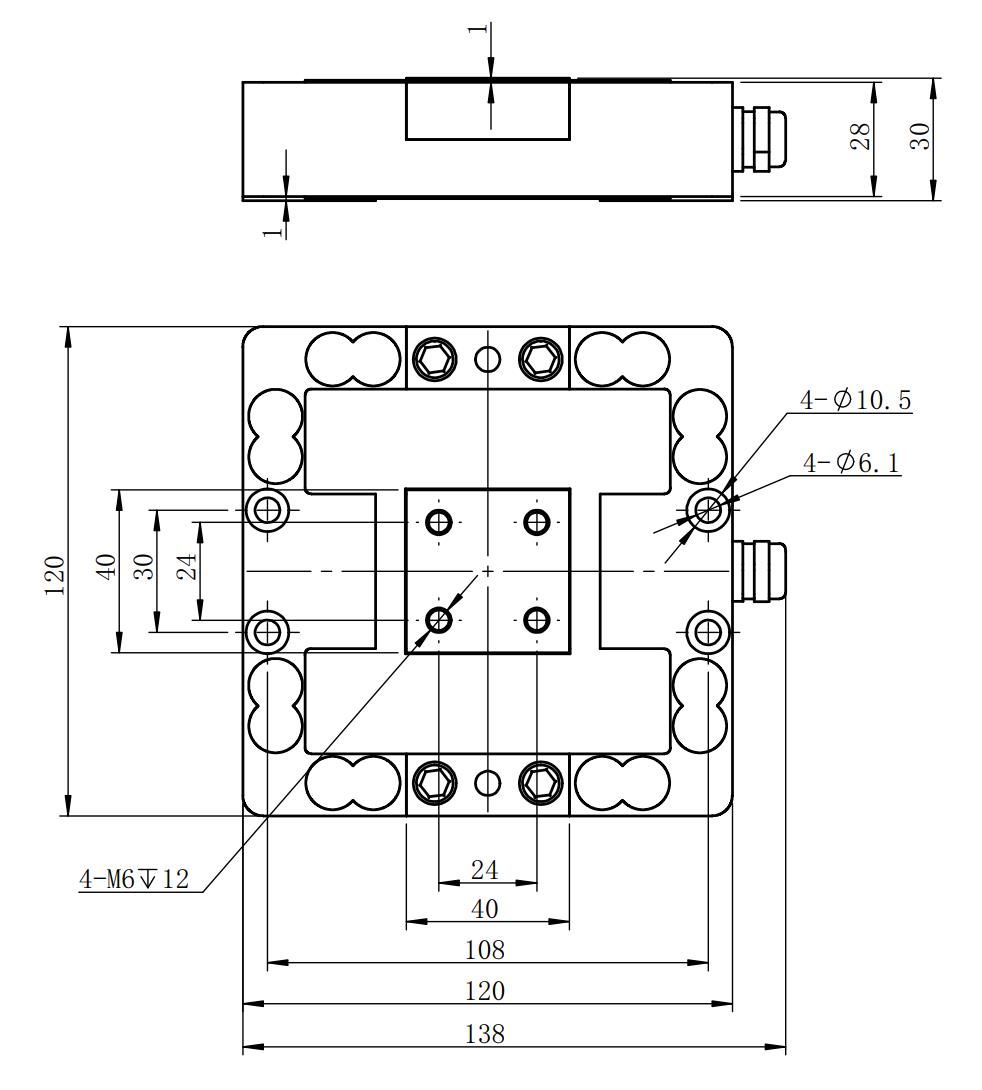

Mounting Dimension

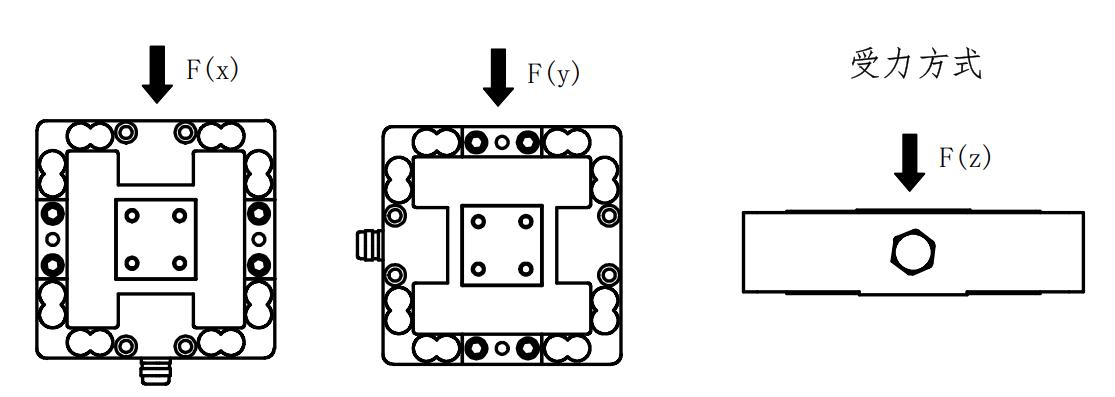

Load Direction

Wiring Code

Specifications

Specifications Technique
CapacityN

X:50/100/200/500/1000/2000/3000;

Y:50/100/200/500/1000/2000/3000;

Z:50/100/200/500/1000/2000/3000.

Rated output 1.0mV/V
Zero balance ±2%F.S.
Non-linearity 0.1%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.1%F.S.
Interference error 0.3%F.S.
Temp.effect on output 0.1%F.S./10
Temp.effect on zero 0.1%F.S./10
Input impedance 785±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~40
Operation temp range -20~75
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size Φ5×3000mm
