Triaxial force sensor
Triaxial force sensor

3-axis load cell 5N 10N 20N 30N 50N NF702

Model: NF702
Category: Multi-axis sensors
Capacity: X: 5/10/20/30/50;Y: 5/10/20/30/50;Z:5/10/20/30/50
Rated Output: ≈1.0mV/V
Material: Aluminum alloy
Protection Class: IP66
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

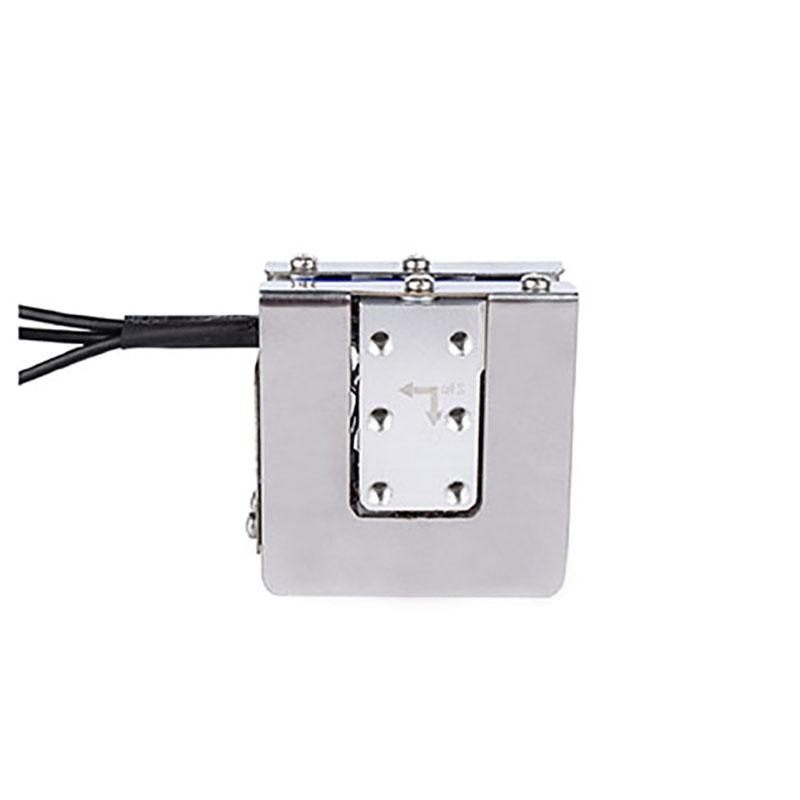

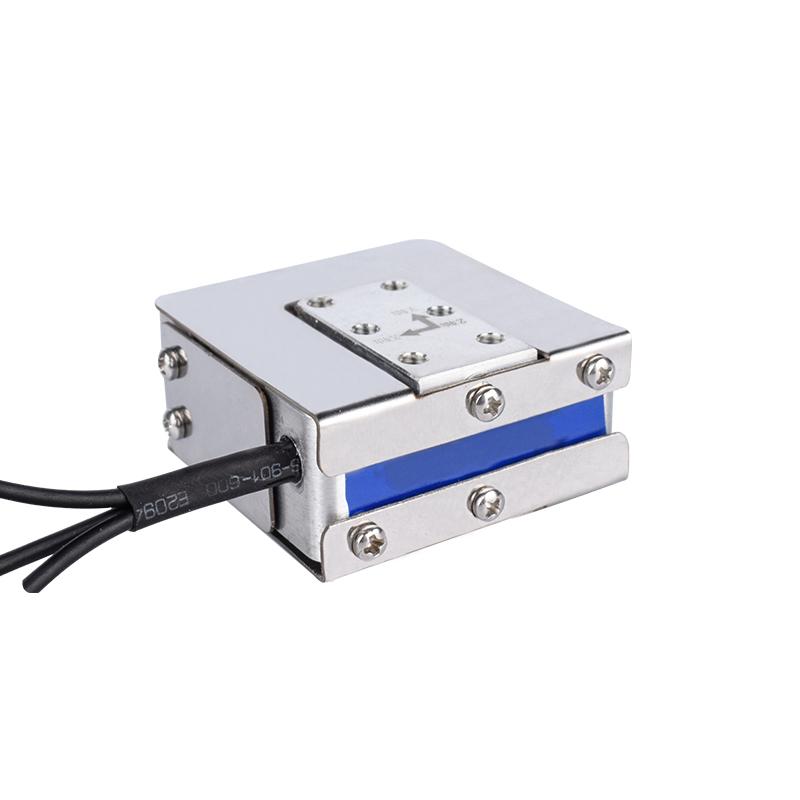

3-axis load cell 5N 10N 20N 30N 50NNF702 is available in a capacity range from 5N to 50N for all three axes. The Triaxial force sensor offers an excellent solution for measuring Fx, Fy, and Fz loads. The multi axis load cell converts load into an electrical output signal.



  • High precision
  • Strong resistance to partial load
  • Easy to install

Applications

  • Crash tests
  • Automation equipment
  • Force control in robotics

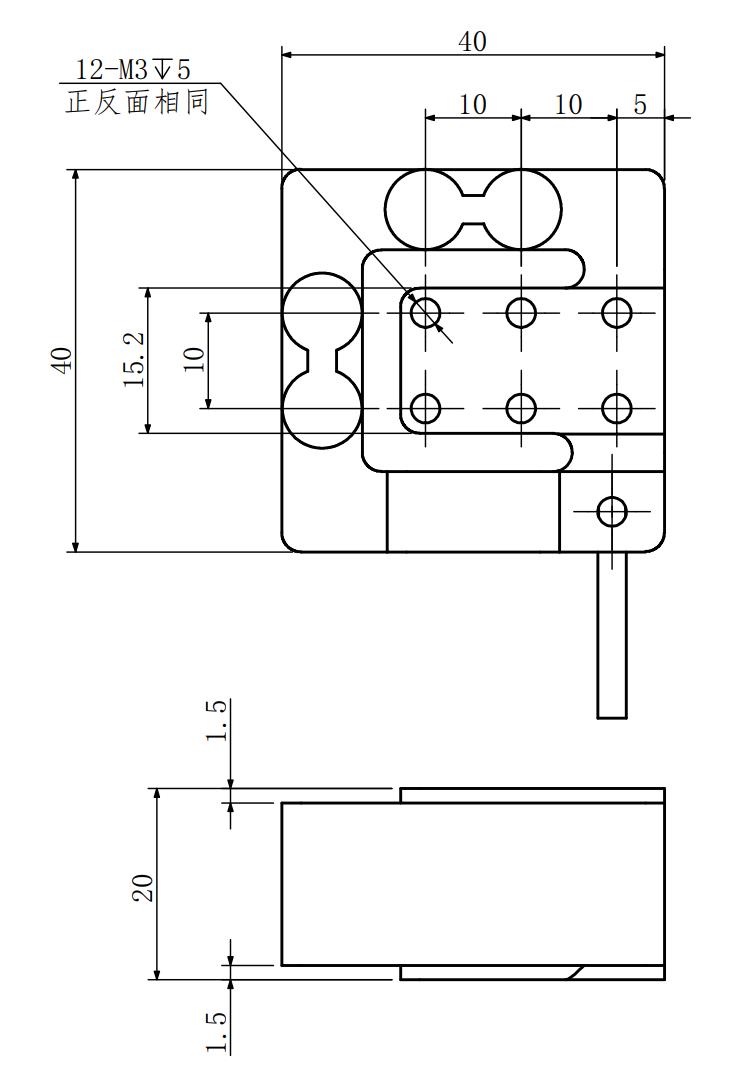

Mounting Dimension

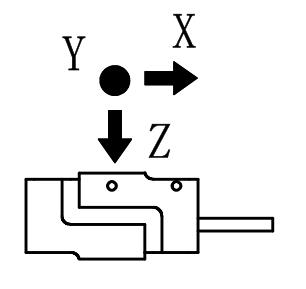

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity(N) X: 5/10/20/30/50;Y:5/10/20/30/50;Z:5/10/20/30/50
Rated output ≈1.0mV/V
Zero balance ±2%F.S.
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.2%F.S.
Interference error 0.5%F.S.
Temp.effect on output 0.1%F.S./10℃
Temp.effect on zero 0.1%F.S./10℃
Input impedance 350±10Ω
Output impedance 350±10Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~40℃
Operation temp range -20~75℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3000mm
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
