3-axis force sensor
3-axis force sensor

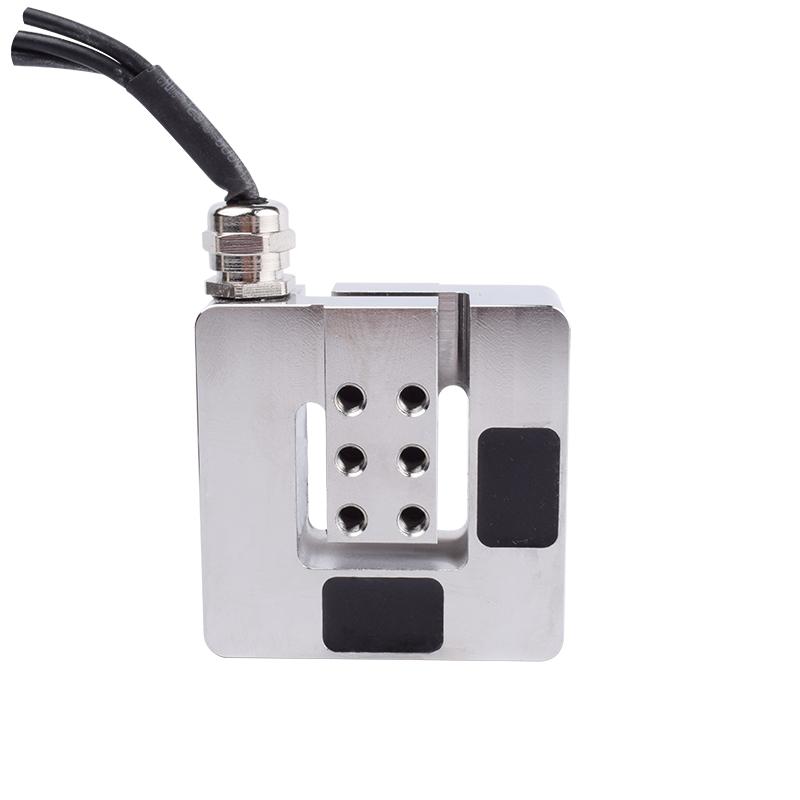

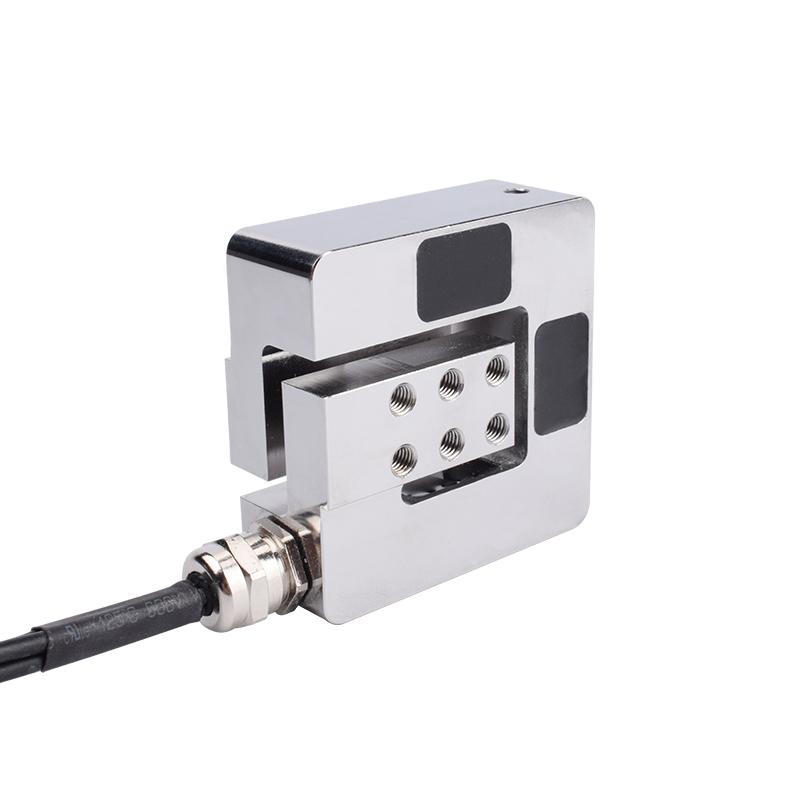

Three dimensional load cell multi axis force sensor NF742

Model: NF742
Category: Multi-axis sensors
Capacity: X/Y/Z:10,20,30,50kg
Rated Output: 1.0±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Three dimensional load cell multi axis force sensor NF742 can simultaneously detect three force information (Fx, Fy, Fz) in the 3D space. Through the 3-axis load cell, the control system can not only detect and control the grip force of the robot hand claw, but also detect the weight of the object, and whether there is sliding or vibration in the process of grasping. Triaxial force sensor can be used in many other applications besides robots.

  • High precision
  • Low interference with each other
  • Long-term stability

Applications

  • Precision assembly
  • Robotic surgical procedures
  • Force control in robotics

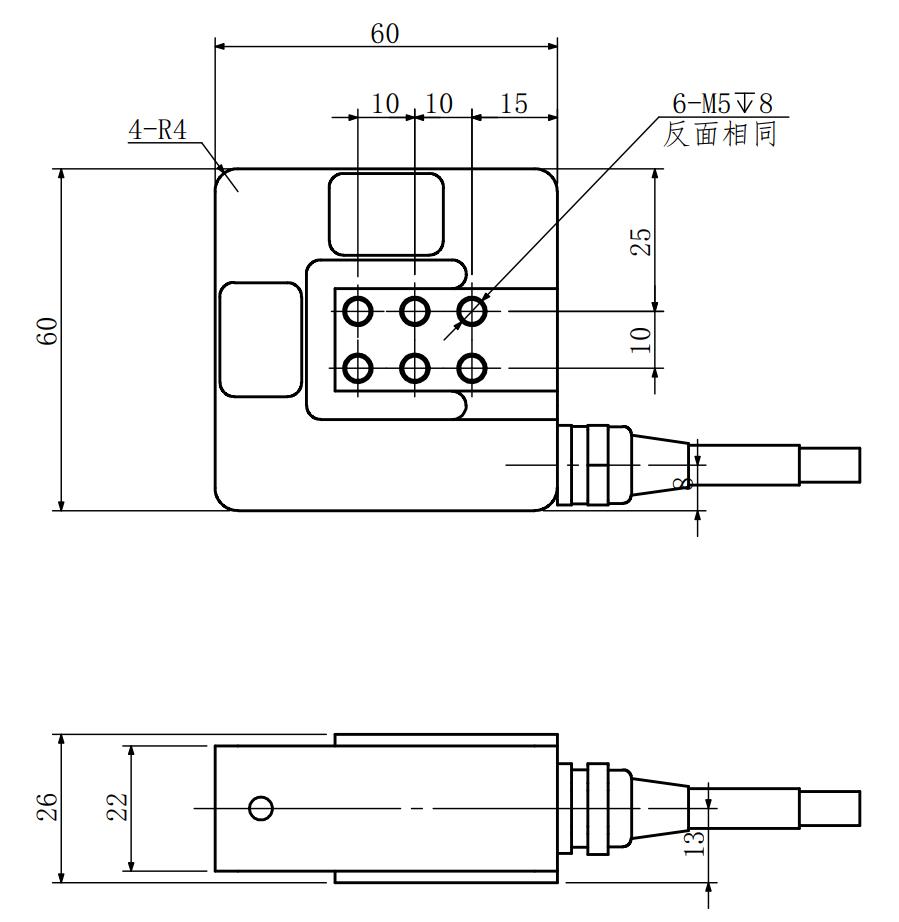

Mounting Dimension

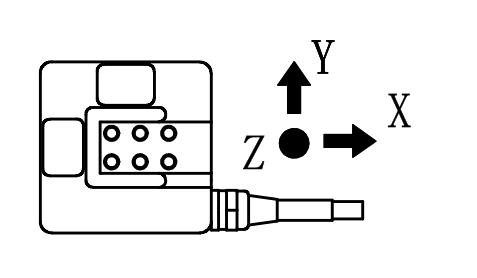

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity X/Y/Z:10,20,30,50kg
Rated output 1.0±10%mV/V
Zero balance ±2%mV/V
Creep30min  0.1%F.S.
Non-linearity  0.1%F.S.
Hysteresis  0.2%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 350±5Ω
Output impedance 350±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3*3m





Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
