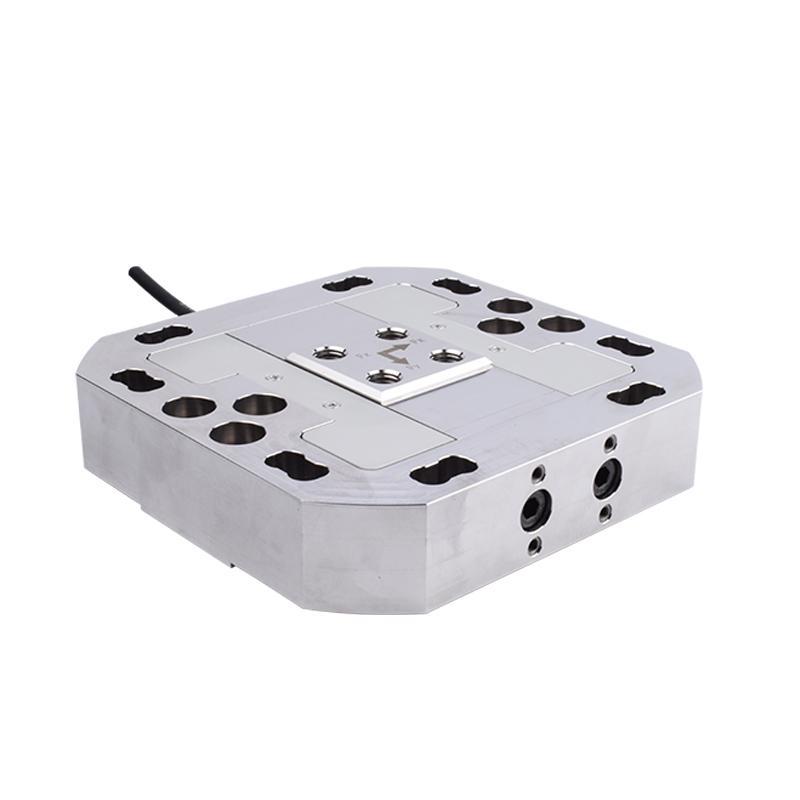

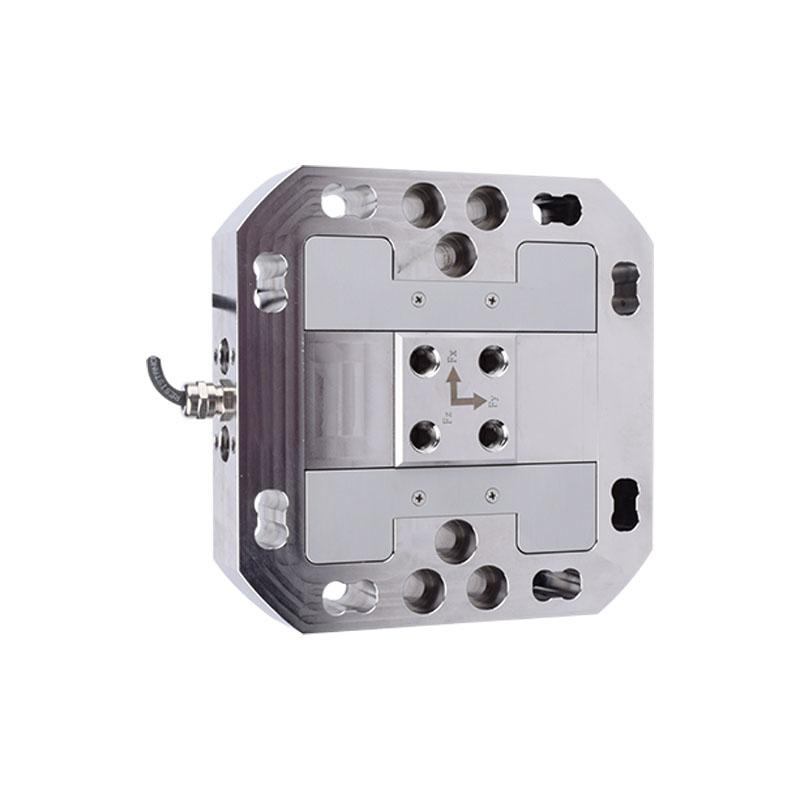

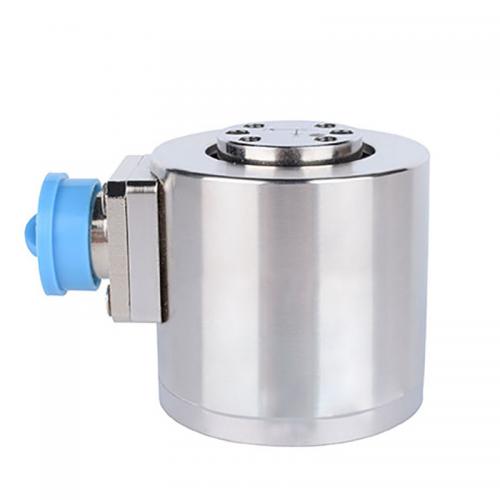

Strain type three-axis load cell 1-5t 704D

Model: NF704D
Category: Multi-axis sensors
Capacity: X/Y/Z:1-5t
Rated Output: ≈1.0±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Strain type three-axis load cell 1-5t 704D consists of an elastic element, a resistance strain gauge and a Wheatstone bridge circuit. The resistance strain gauge converts the strain variable proportional to the weight of the object into the resistance change, and then converts the resistance change into the voltage or current output through the Wheatstone bridge circuit. The voltage or current output value can be measured by the display instrument to complete the measurement task.

  • High precision
  • Easy to install
  • Long-term stability

Applications

  • Grinding force monitoring
  • Automotive experiments
  • Force control in robotics

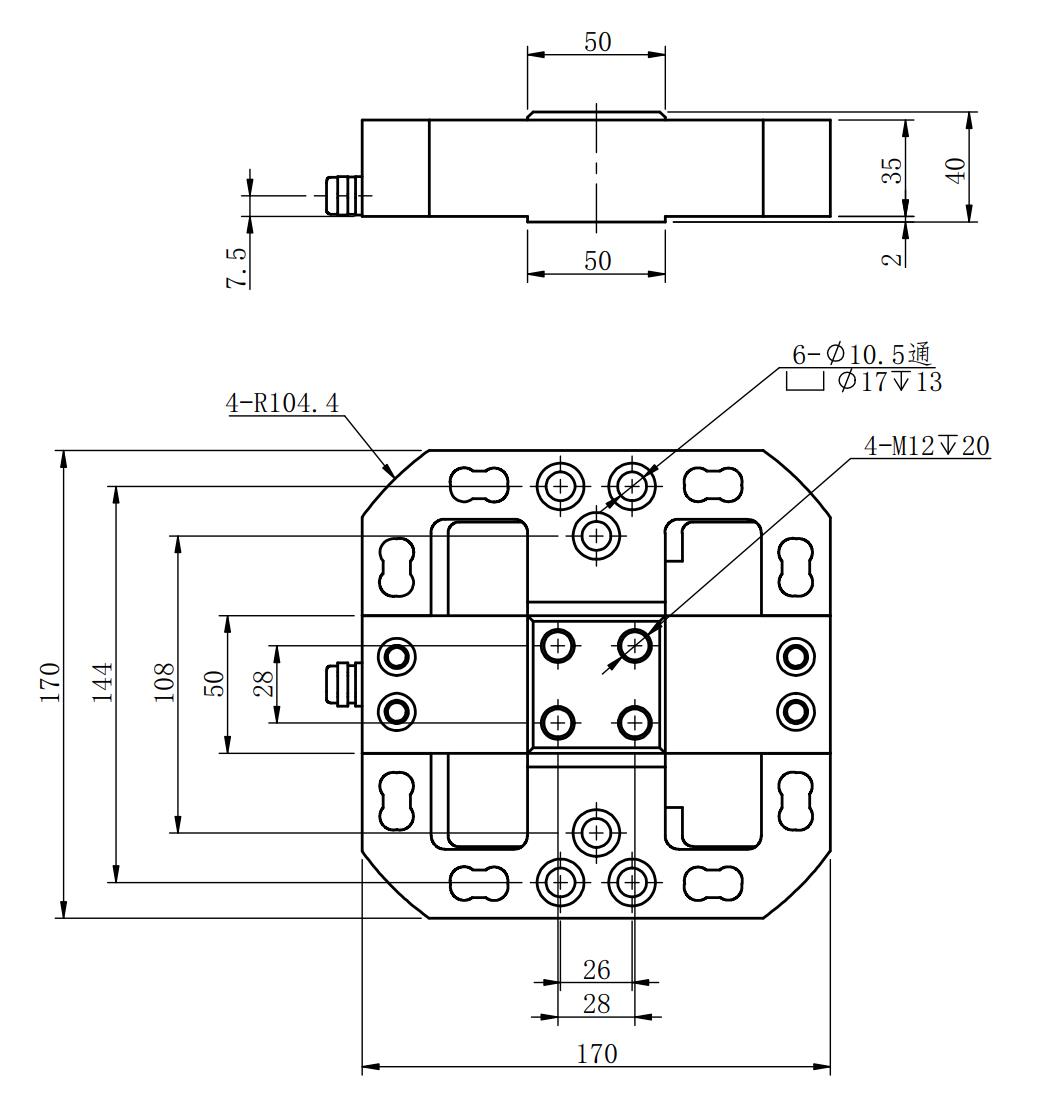

Mounting Dimension

Load Direction

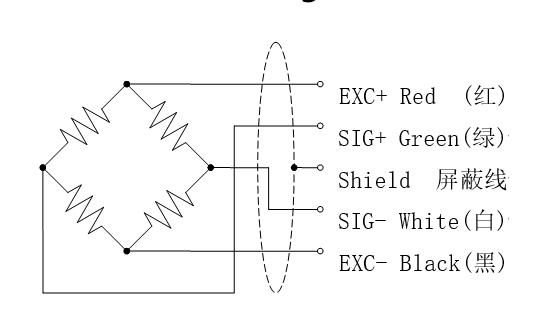

Wiring Code

Specifications

Specifications Technique
Capacity X/Y/Z:1-5t
Rated output 1.0±10%mV/V
Zero balance ±0.01mV/V
Creep30min  0.3%F.S.
Non-linearity  0.3%F.S.
Hysteresis  0.3%F.S.
Repeatability 0.2%F.S.
Interference error 1%F.S.
Temp.effect on output 0.1%F.S./10
Temp.effect on zero 0.1%F.S./10
Input impedance 350/780±10Ω
Output impedance 300/700±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~40
Operation temp range -20~75
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size 3m



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll always adhere to the "quality is life" product concept to build a professional team in the field of automation, providing customers with quality products, pre-sale and after-sale technical service. Naturoll is especially good at customized design and development of products and solutions.
