| Model: | NF606 |
| Category： | Torque Sensor |
| Capacity: | 0.1,0.2,0.3,0.5,1,2,3,5N.m |
| Protection Class: | IP65 |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

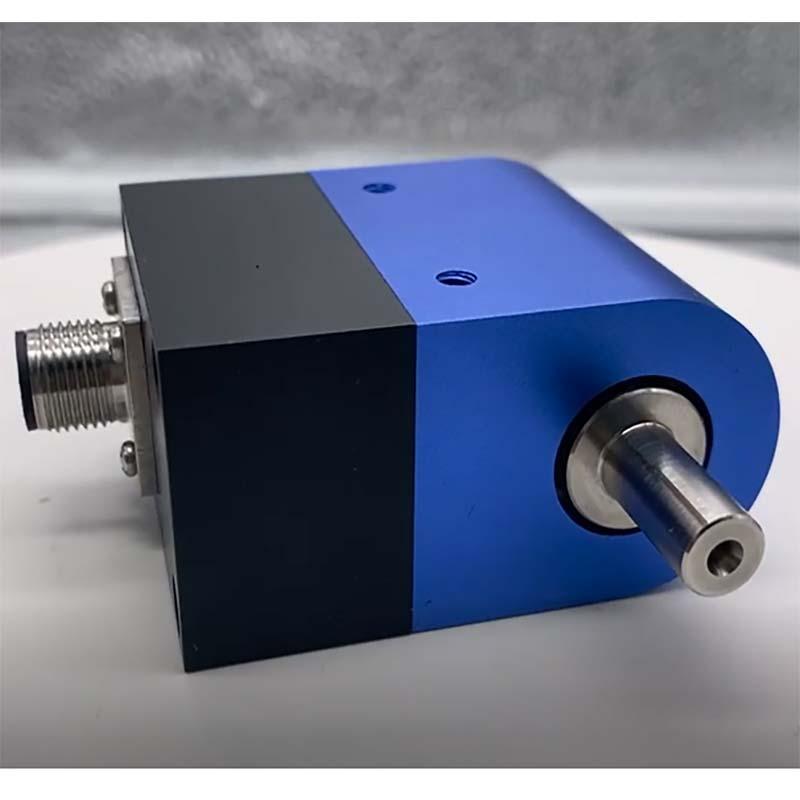

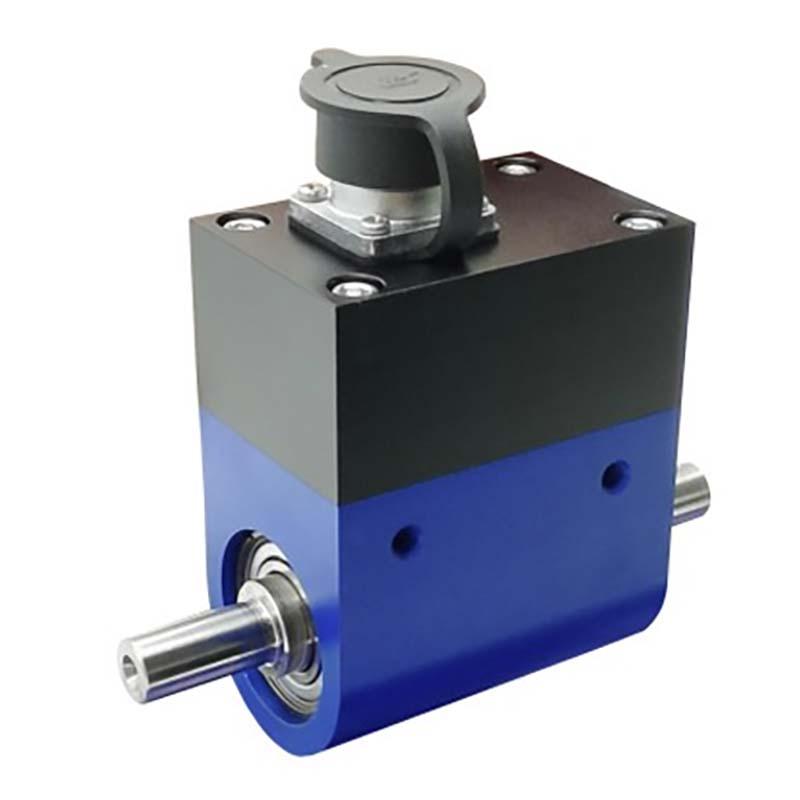

Small range dynamic torque sensor NF606 is a specialized sensor used to measure and monitor torque in rotating systems. It provides real-time data on the rotational forces and enables precise control and optimization of mechanical processes. Rotational torque transducers play a vital role in measuring and controlling torque in rotating systems. With their high accuracy, wide measurement range, fast response time, and robust construction, these sensors enable precise monitoring and optimization of mechanical processes.
Applications
Mounting Dimension

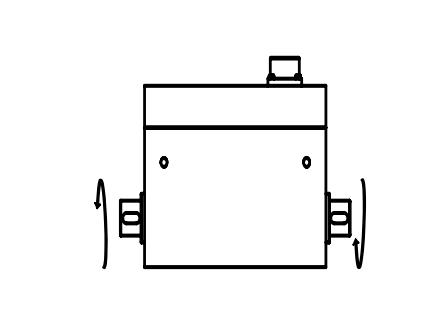

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 0.1,0.2,0.3,0.5,1,2,3,5N.m |
| Reted output |
1.0~1.5mV/V |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 700±10Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 12-20VDC |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~65℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | 3m |
| IP Class | IP65 |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll always adhere to the "quality is life" product concept to build a professional team in the field of automation, providing customers with quality products, pre-sale and after-sale technical service. Naturoll is especially good at customized design and development of products and solutions.
