Tension pick-up

Tension pick-up NF907

Model: NF907
Category: Tension Sensors
Capacity: 50N
Rated Output: 0.8±10%mV/V
Material: Stainless steel/Alloy steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Tension pick-up NF907 are designed to accurately measure the amount of force or tension being exerted on a specific point, wire, rope, or other load-bearing component. The tension sensor typically consist of strain gauges, which are thin, flexible, and sensitive resistance elements that change their electrical resistance when subjected to applied stress or deformation.

  • Convenient plug-in connection
  • High precision

Applications

  • Wire and cable production
  • Medical devices
  • Material testing

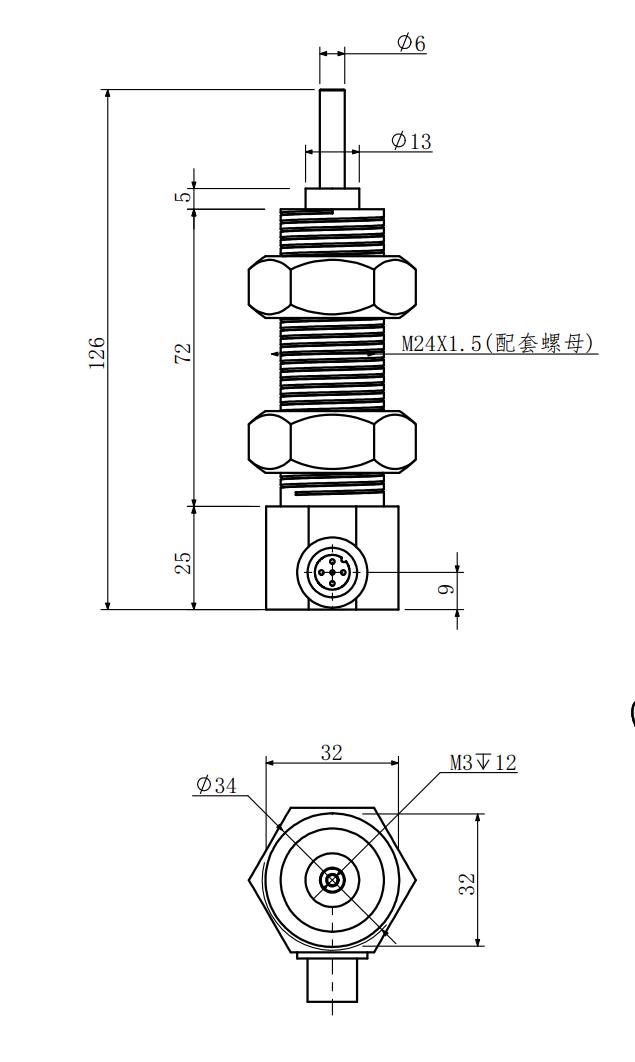

Mounting Dimension

Wiring Code

Specifications



Specifications Technique
Capacity 50N
Rated output 0.8±10%mV/V
Zero balance ±0.05mV/V
Creep30min ≤0.1%F.S.
Non-linearity ≤0.1%F.S.
Hysteresis ≤0.1%F.S.
Repeatability ≤0.05%F.S.
Input impedance 350±30Ω
Output impedance 350±5Ω
Temp.effect on output 0.05%F.S./10 C
Temp.effect on zero 0.05%F.S./10 C
Insulation resistance 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -10~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Material Stainless steel/Alloy steel
