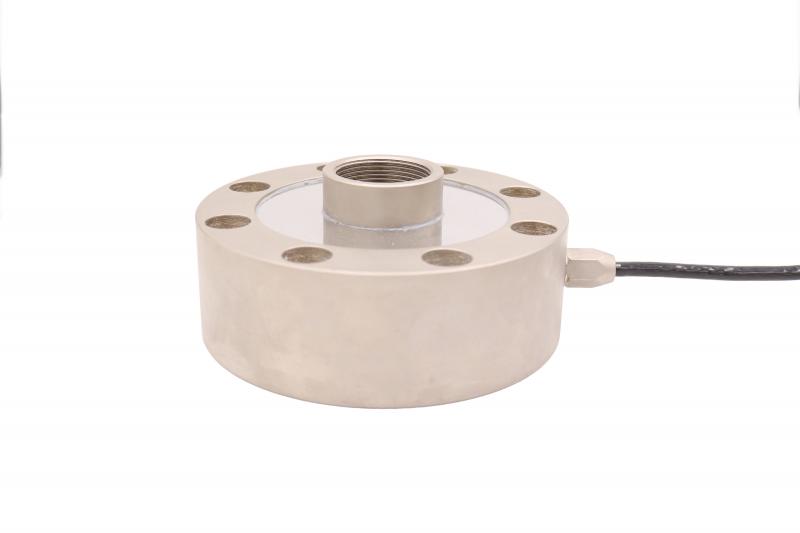

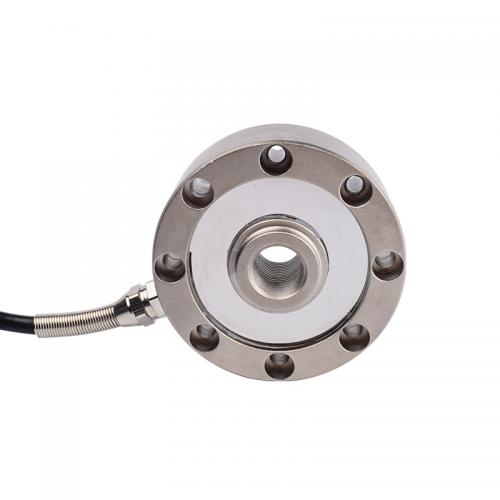

Micro pressure transducer pancake load cell NF120B

Model: NF120B
Capacity: 0.1,0.2,1,2,3,5,10,15,20,25,30t
Rated Output: 2.0±1%mV/V(0.1,0.2kN),3.0±1%mV/V(1~30kN)
Material: Stainless steel
Protection Class: IP65
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Micro pressure transducer pancake load cell NF120B has a central threaded hole for measuring loads in either tension or compression.The wheel shaped transducer are available in a wide capacity range from 100kg to 30t. The spoke pressure sensor has high endurance and high fatigue life.

  • High comprehensive precision
  • Tension - compression bidirectional
  • Other ranges can be customized

Applications

  • Universal material testing machine
  • injection molding clamping force applications
  • Weighting system for tanks,vessels and hoppers

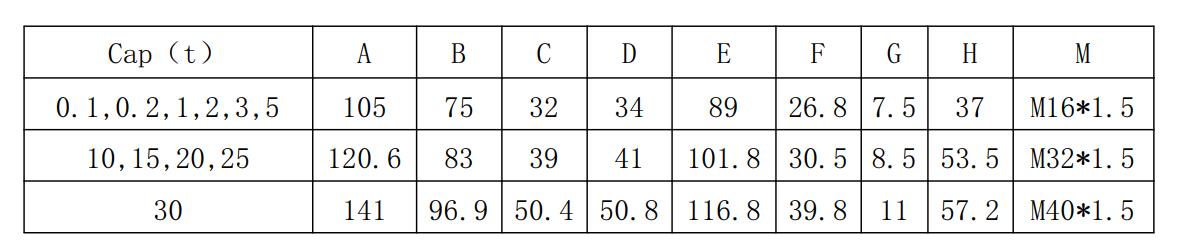

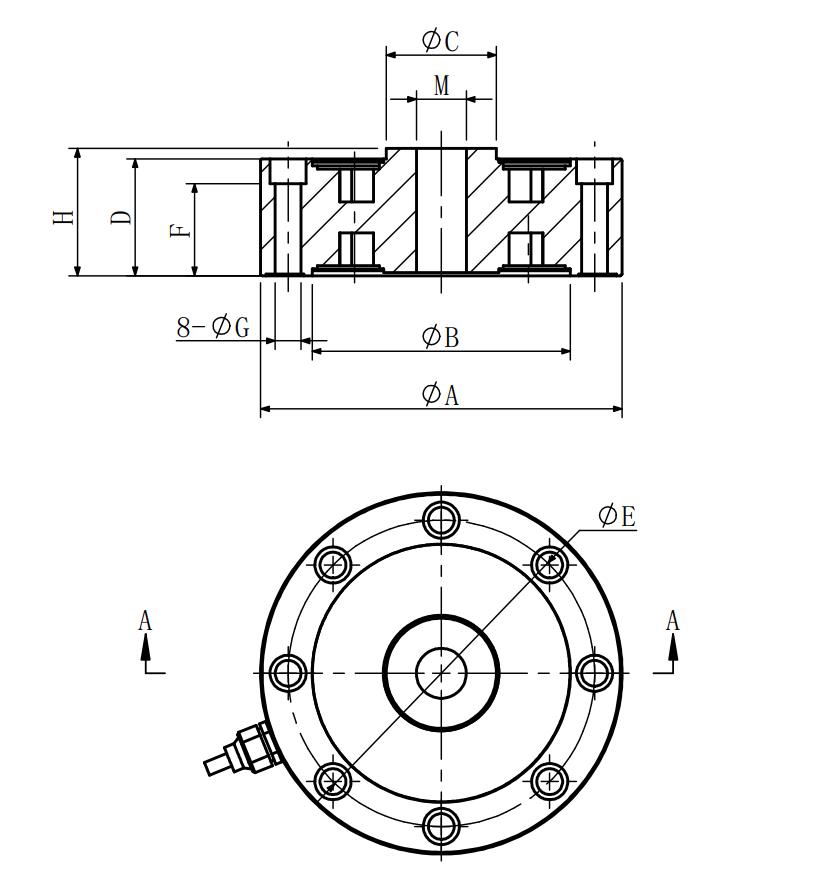

Mounting Dimension

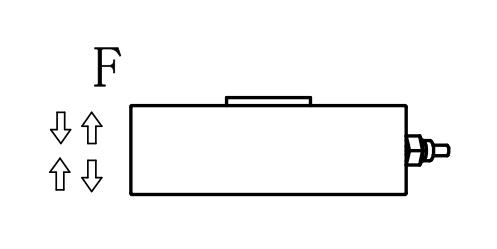

Load Direction

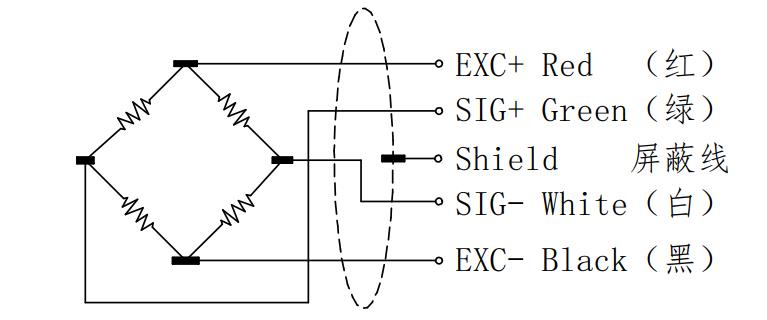

Wiring Code

Specifications

Specifications Technique
Capacity 0.1,0.2,1,2,3,5,10,15,20,25,30t
Rated output 2.0±1%mV/V(0.1,0.2kN),3.0±1%mV/V(1~30kN)
Zero balance ±1% F.S.
Non-linearity 0.03%F.S.
Hysteresis 0.03%F.S.
Repeatability 0.03%F.S.
Creep(30min) 0.03%F.S.
Temp.effect on output 0.02%F.S./10℃
Temp.effect on zero 0.02%F.S./10℃
Input impedance 780±10Ω
Output impedance 700±5Ω
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~40℃
Operation temp range -10~70℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size φ5×6000mm
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
Related Products
Pancake force sensor

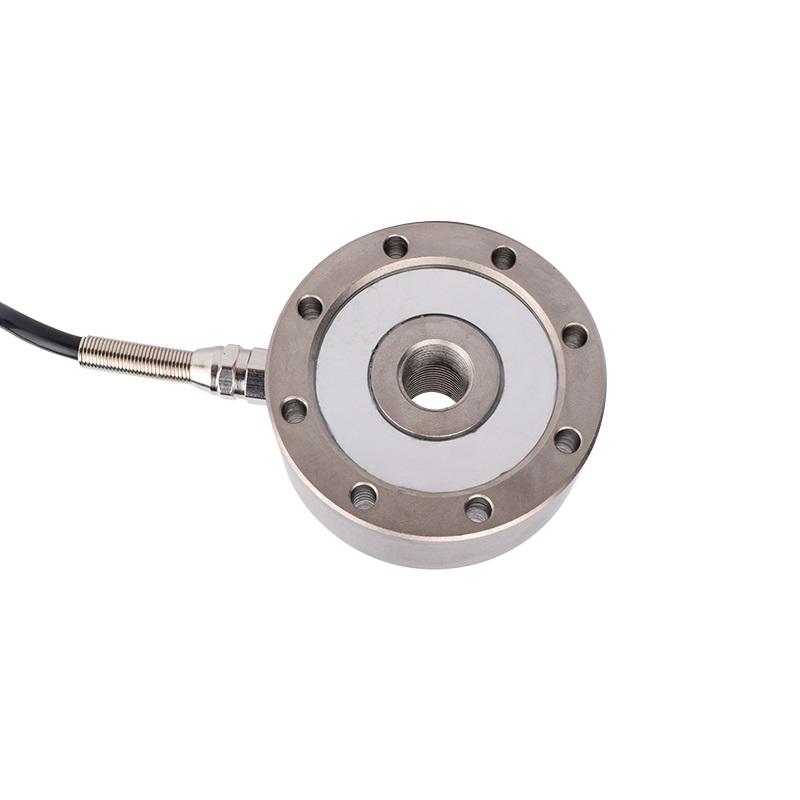

Wheel shaped load cell pancake transducer NF120A
