Dynamic torque transducer
Dynamic torque transducer

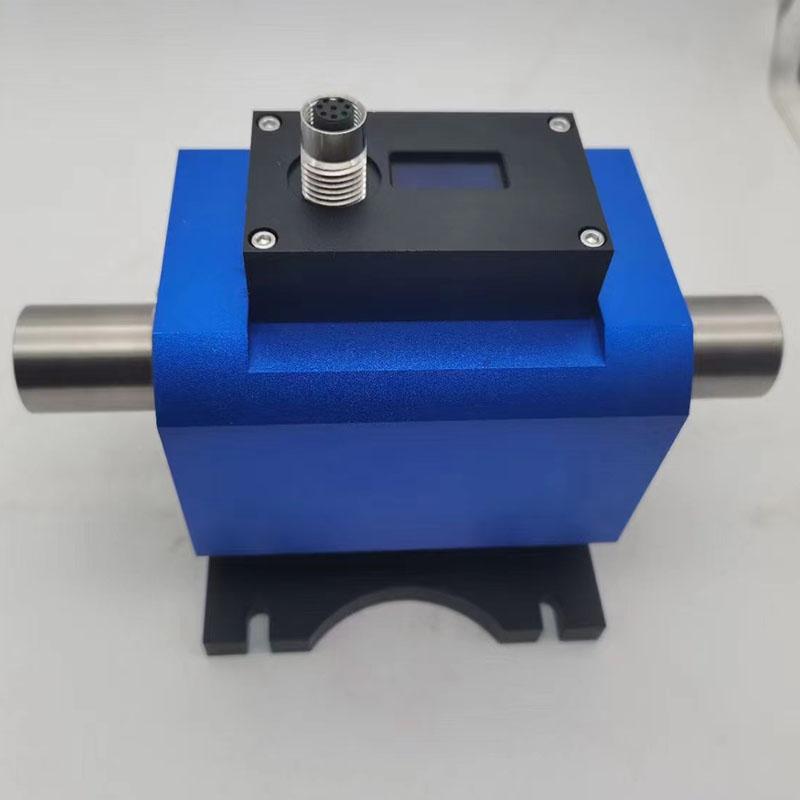

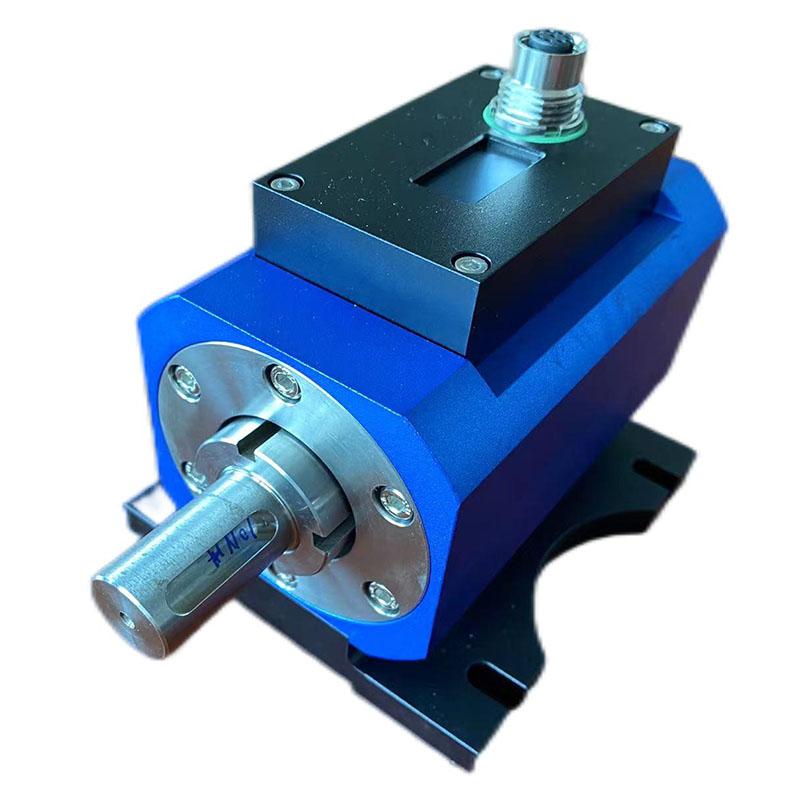

Non-contact dynamic torque sensor NF612

Model: NF612
Category: Torque Sensor
Capacity: 5-5000Nm
Material: ~
Protection Class: IP66
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Non-contact dynamic torque sensor NF612 using non-contact rotary transformer technology can measure torque and speed at the same time. There is no friction between the shaft and the signal acquisition device so the rotational sensor is more durable. The non-contact torque load cell measures torque at 5-5000NM and can reach a top speed of 8000rpm.

  • Compact structure
  • High speed
  • Stainless steel shaft

Applications

  • Torque measurement of engines
  • Screw locking torque monitoring
  • Agitator torque control

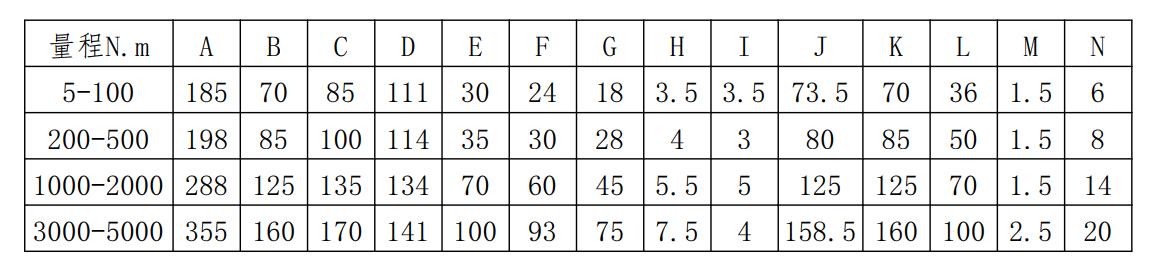

Mounting Dimension

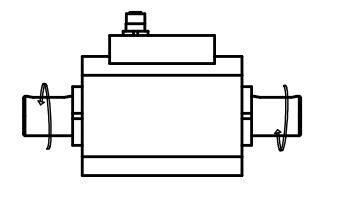

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 5-5000Nm
Output signal 5~15 KHZ / 4~20 mA / 0~5V / 0~10V
Speed range 0~8000 RPM
Zero balance ±2%mV/V
Non-linearity 0.3%F.S.
Hysteresis 0.5%F.S.
Repeatability 0.2%F.S.
Insulation 2000MΩ/100VDC
Recommended excitation ±15V(Output frequency signal);24VDC(Voltage, current signal)
Operation temp range -20~60
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size 3m
IP Class IP66
