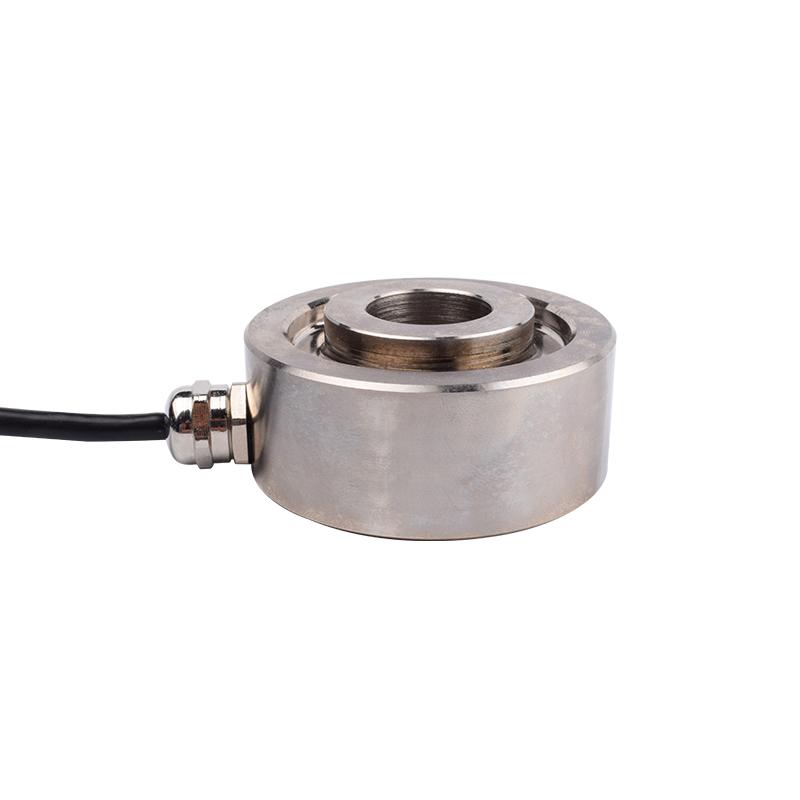

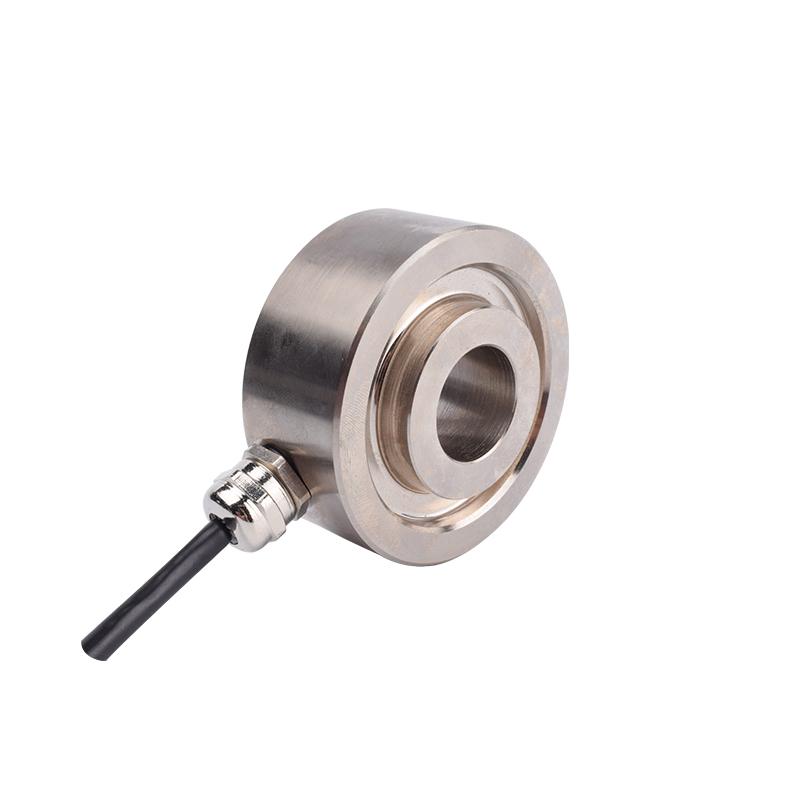

| Model: | NF167 |
| Category： | Ring load cells |
| Capacity: | 3000,5000KG |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.2KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features
Ring-type force sensors NF167(also known as ring load cells or spoke-wheel sensors) are designed for high-capacity measurements, making them suitable for heavy-duty applications in industries such as manufacturing, aerospace, and heavy machinery. Below are their key features:
Ring/Spoke Design: Force is evenly distributed across the ring structure, with multiple strain gauges (e.g., 4-8 sets) detecting deformation to minimize stress concentration.
Compact & Low-Profile: Compared to column-type sensors, the ring design saves space, making it ideal for embedded installations (e.g., crane pulleys, bearing housings).
Applications

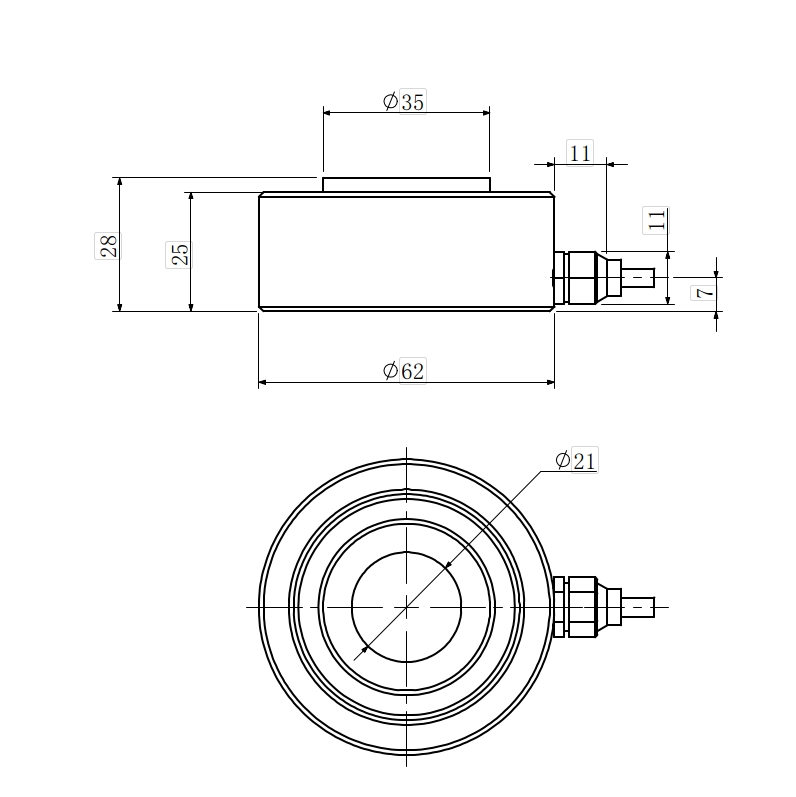

Mounting Dimension

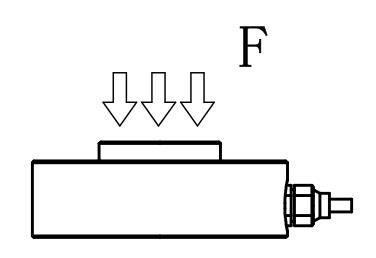

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 3000,5000KG |
| Rated output | 1.5±10%mV/V |
| Zero balance | ± 0.02mV/V |
| Non-linearity | 0.20%F.S. |
| Hysteresis | 0.30%F.S. |
| Repeatability | 0.10%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ4×3000mm |
