Tension and compression load cell
Tension and compression load cell

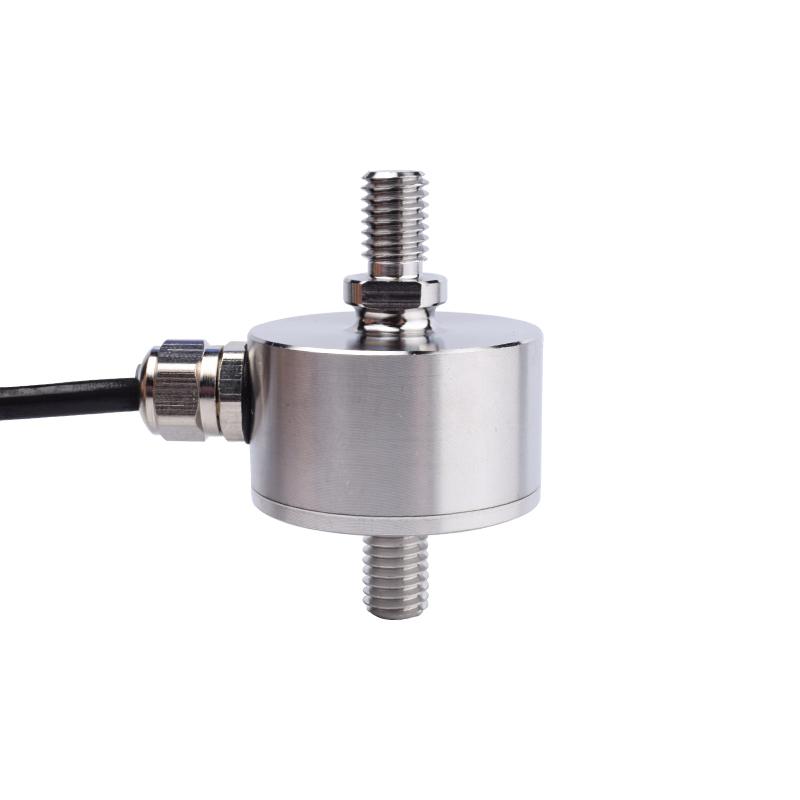

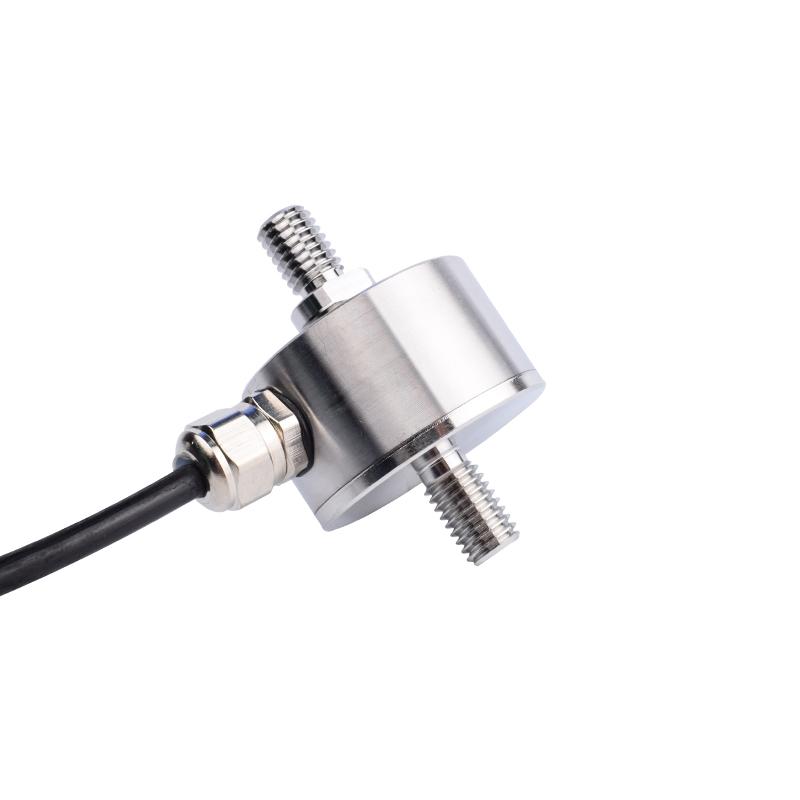

Pull pressure threaded in line force sensor NF205

Model: NF205
Category: Tension/Compression Load Cells
Capacity: 0.5,1,1.5,2,3,5kN
Rated Output: 1.5±10%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: 0.2KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Pull pressure threaded in line force sensor NF205 is a tension and compression type load cell. The threaded in line force sensor has various practical range : 0-0.5KN,0-1KN,0-1.5KN,0-2KN,0-3KN,0-5KN. Users can choose the appropriate pull pressure sensor range according to the actual situation.



  • Small deformation
  • Good long-term stability
  • Stainless steel

Applications

  • Automatic assembly
  • 3C product testing
  • New energy product assembly

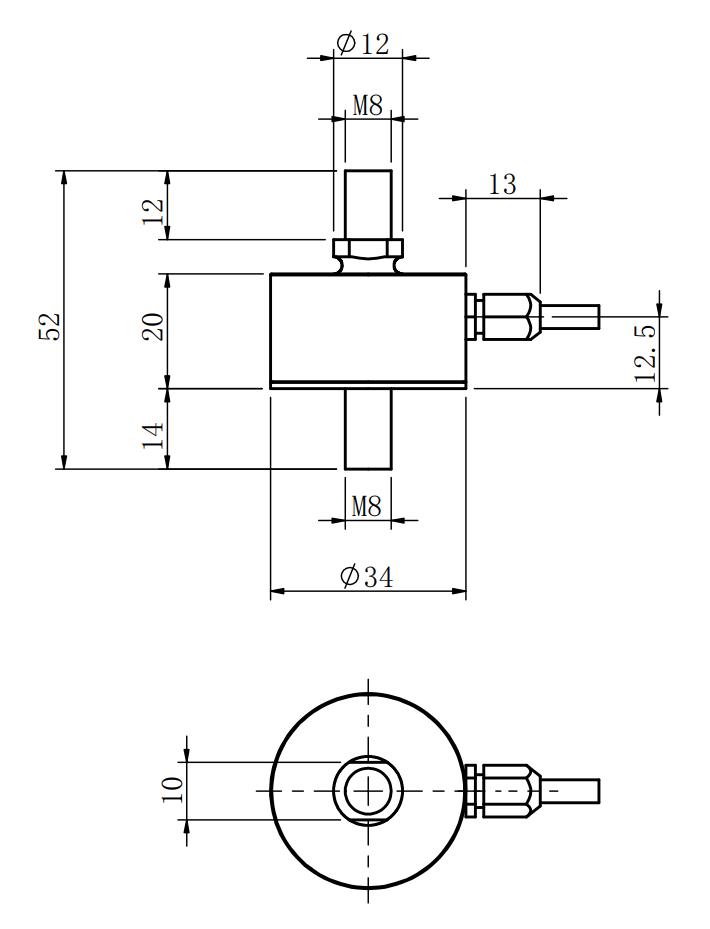

Mounting Dimension

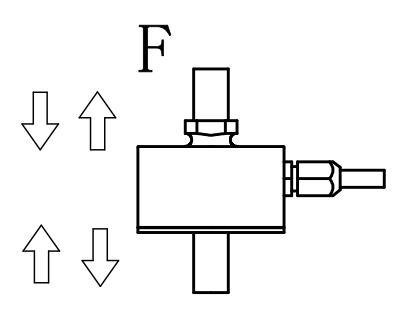

Load Direction

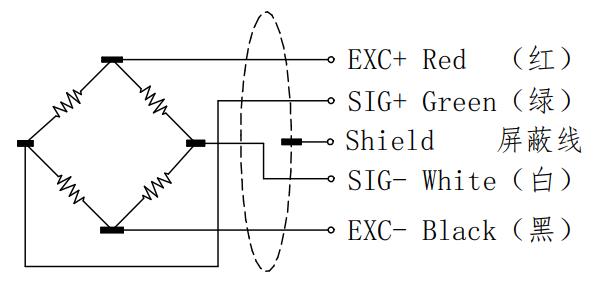

Wiring Code

Specifications

Specifications Technique
Capacity 0.5,1,1.5,2,3,5kN
Rated output 1.5±10%mV/V
Zero balance ±0.05mV/V
Non-linearity 0.20%F.S.
Hysteresis 0.10%F.S.
Repeatability 0.10%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 700±1
Output impedance 700±1
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ4×3000mm
