| Model: | NF302 |
| Capacity: | 10,20,50,100,200,500,1000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.1KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

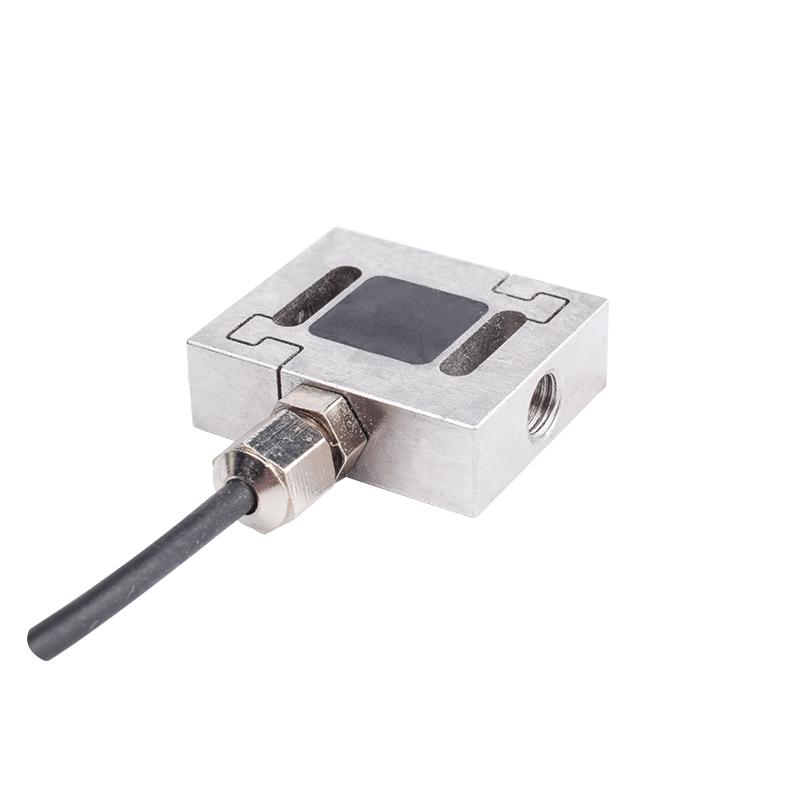

Featuring unparalleled capabilities for universal S type load cell 10N 20N 50N 100N 200N 500N 1000N NF302 of its size, the versatile and universal NF302 offers limitless possibilities for applications.
Applications
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | 技术指标/Technique |
| Capacity | 10,20,50,100,200,500,1000N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.02 mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350/650±5Ω |
| Output impedance | 350/650±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×3000mm |
