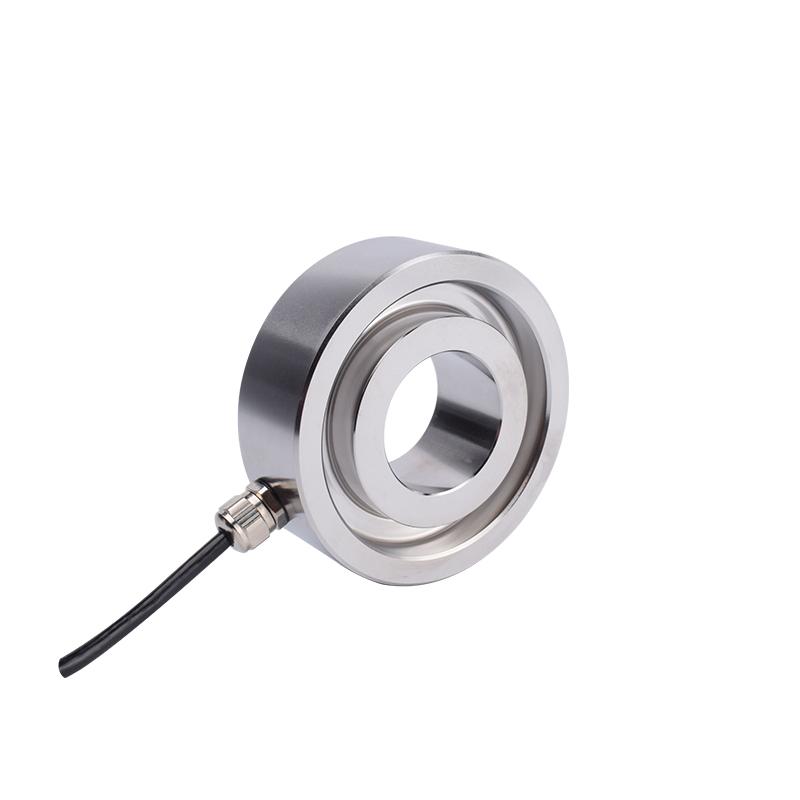

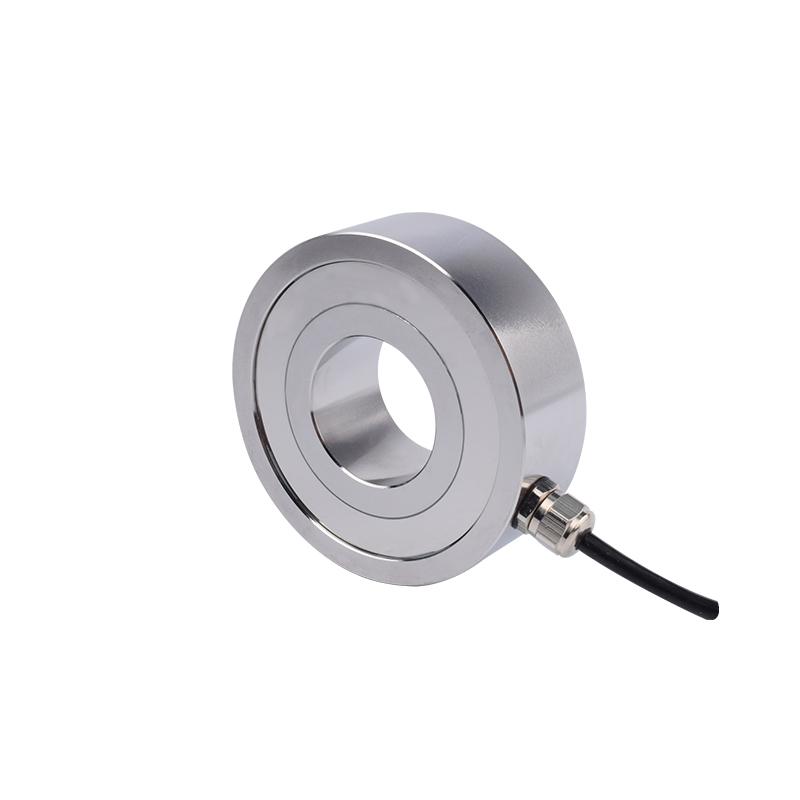

Through hole load cell donut force sensor NF117

Model: NF117
Category: Ring load cell
Capacity: 10,20,30,50,100,200kN
Rated Output: 1.5±10%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Through hole load cell donut force sensor NF117 has a central threaded hole for measuring loads in  press and inline compression applications.The annular force transducer is available in a capacity range from 10KN to 200KN. The ring load cell features a compact, smooth thru-hole design for use in applications which require the load structure to pass thru the sensor.

  • Miniature size
  • Stainless steel/alloy steel material

  • High frequency dynamic response frequency

Applications

  • Rolling mill systems
  • Fastening force monitoring
  • Bolt force measurements (bolt loading)

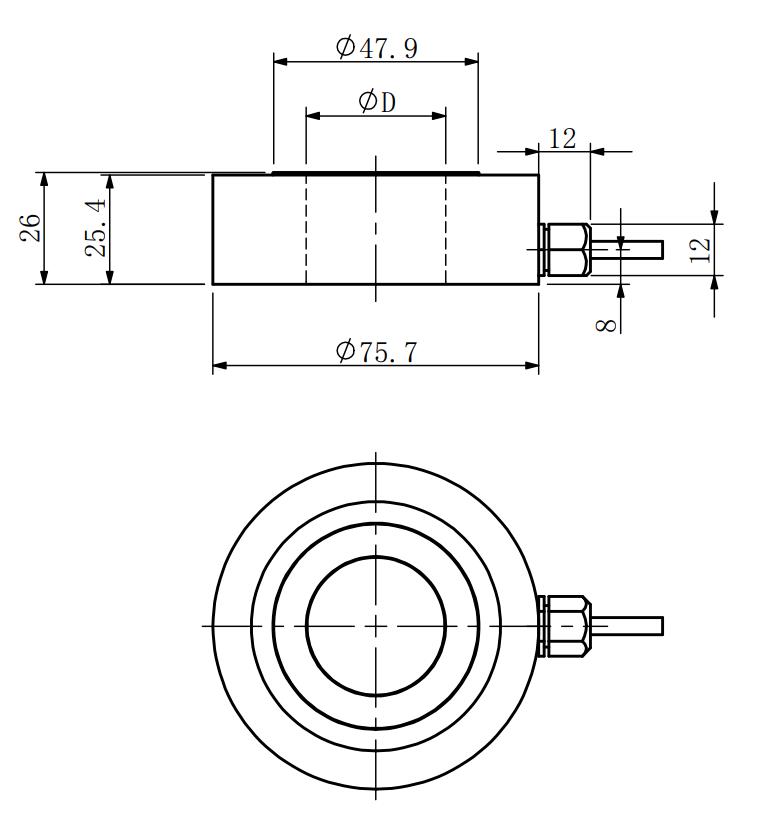

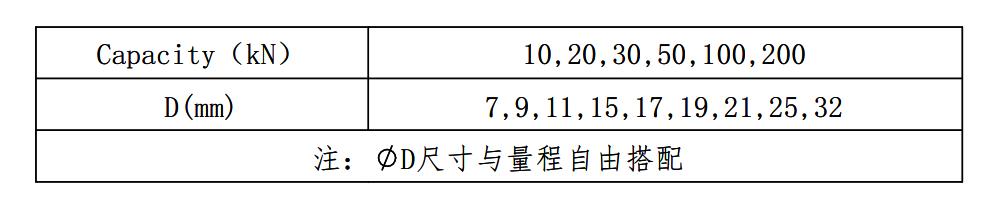

Mounting Dimension

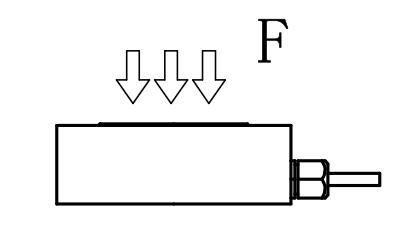

Load Direction

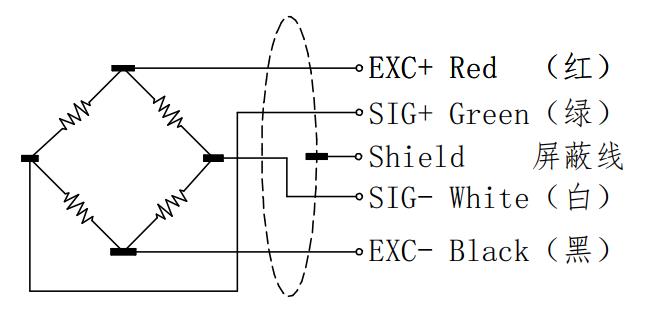

Wiring Code

Specifications

Specifications Technique
Capacity 10,20,30,50,100,200kN
Rated output 1.5±10%mV/V
Zero balance ±0.03 mV/V
Non-linearity 0.1%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.05%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size φ4×3000mm
