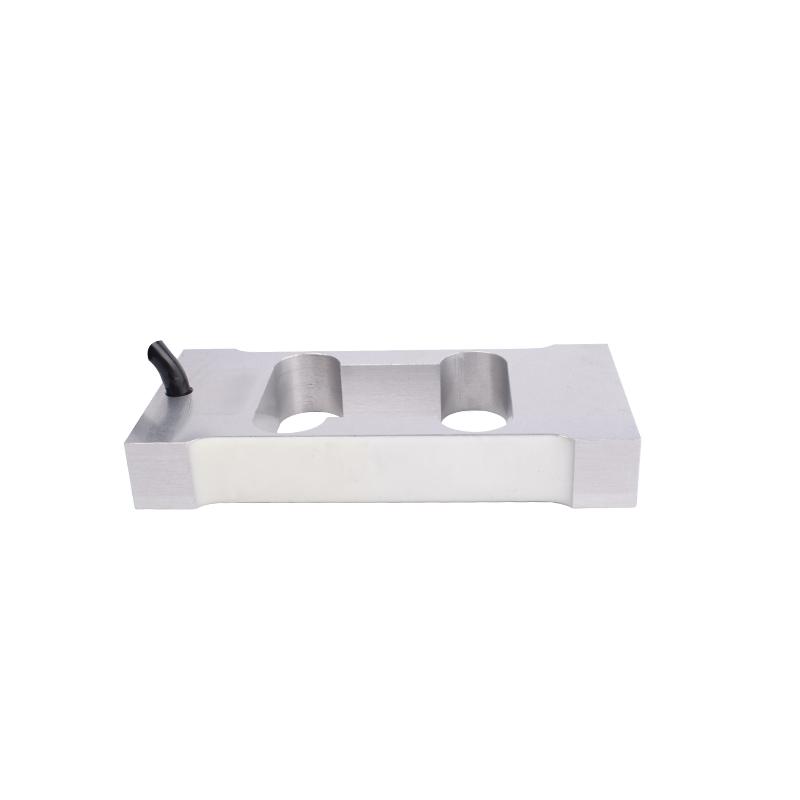

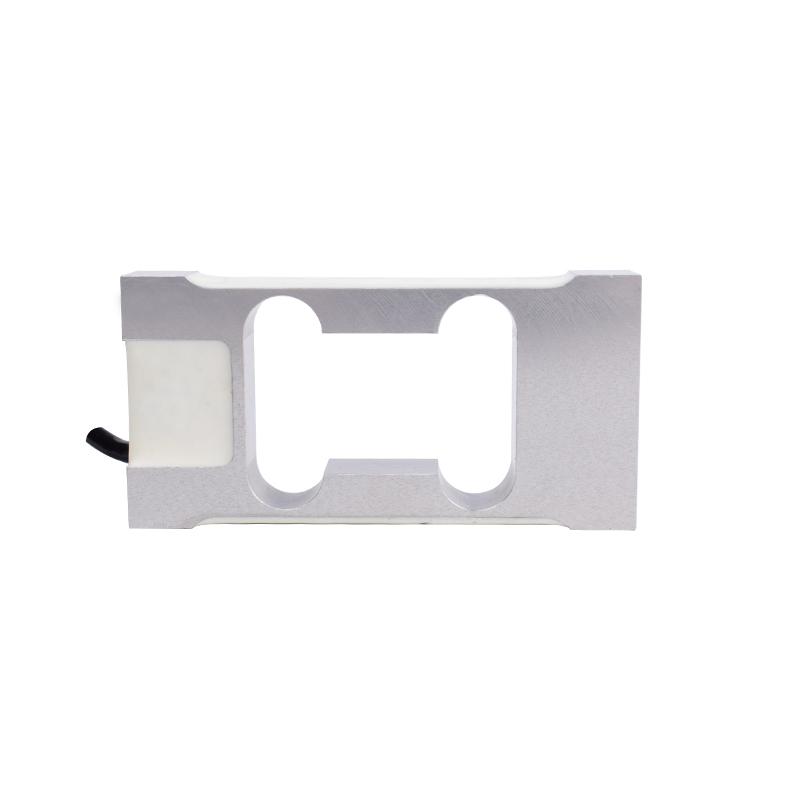

| Model: | NF505 |
| Category： | Beam Load Cells |
| Capacity: | 3,5,7.5,15,20,30,50,75,100,150,200kg |
| Rated Output: | 2.0±10%mV/V |
| Material: | Aluminum alloy |
| Protection Class: | IP67 |
| Weight: | 0.2KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features
Aluminum alloy shear beam type load cell NF505 is one of the widely used sensors in the field of weighing technology. The shear beam sensor is made of aluminum alloy and characterized with high accuracy and linearity. The weighing load cell satisfies the requirements of protection class IP67 and allows operation under harsh operating conditions.
Applications

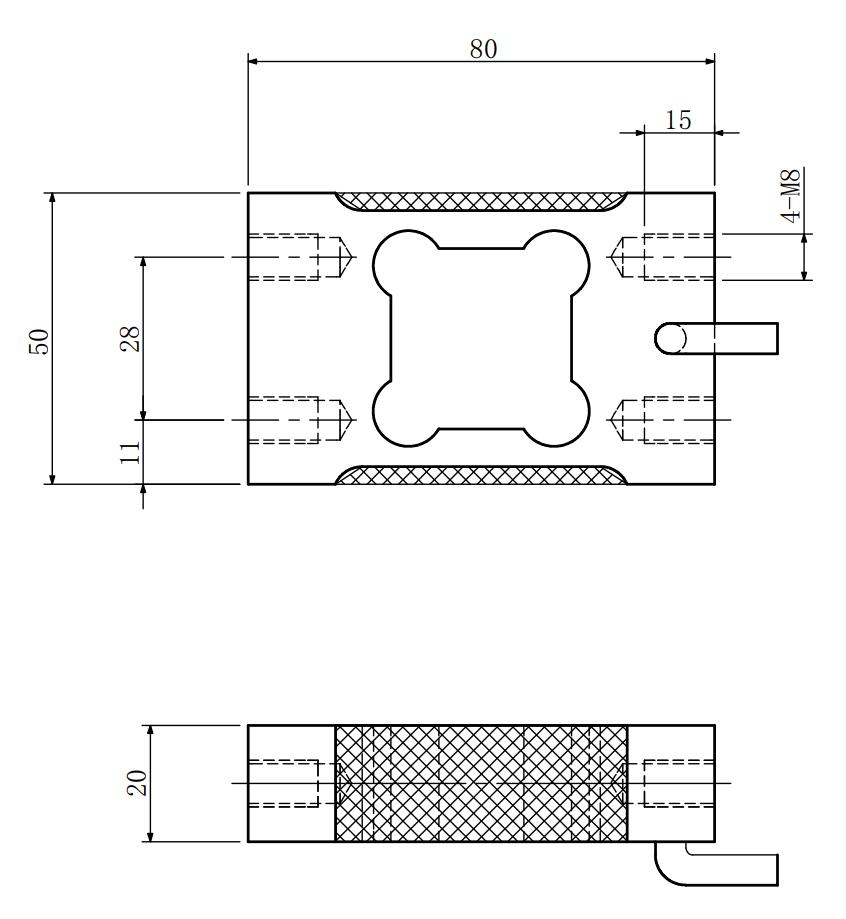

Mounting Dimension

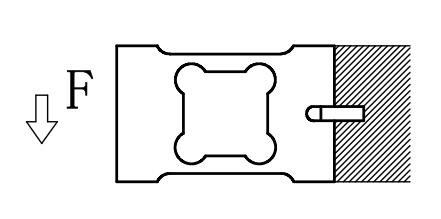

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 3,5,7.5,15,20,30,50,75,100,150,200kg |
| Accuracy class | C3 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.0166%F.S. |
| Hysteresis | 0.0166%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(30min) | 0.017%F.S. |
| Temp.effect on output | 0.017%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input impedance | 420±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -10~50℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.2×1600mm |
| Material | Aluminum alloy |
| IP Class | IP67 |
| Max.platform size | 600mm×500mm |
