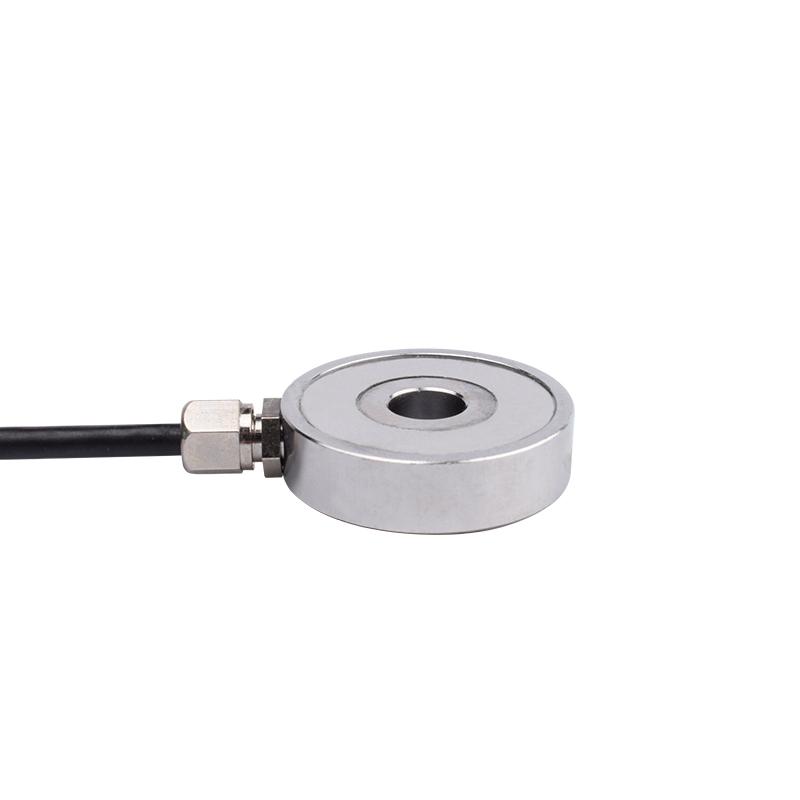

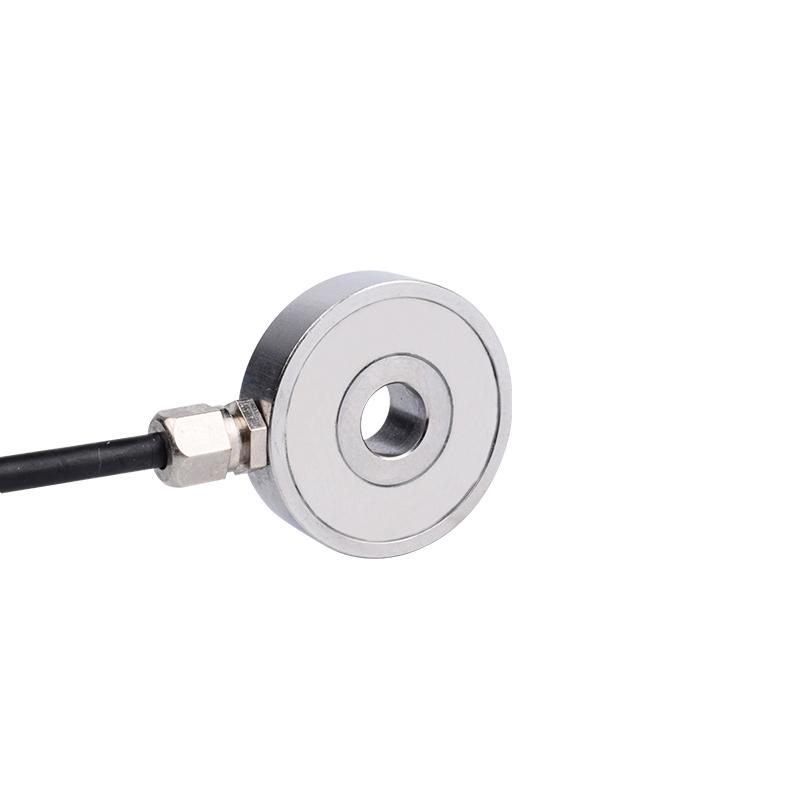

Annular load cell ring force sensor NF109

Model: NF109
Category: Ring load cells
Capacity: 50,100,200,500,1000N
Rated Output: 1.5±20%mV/V
Material: Stainless steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Annular load cell ring force sensor NF109 is small in size. The donut load cell offers 0-50N,0-100N,0-200N,0-500N,0-1000N five different measuring ranges to choose from. The washer type load cell is equipped with with a 3-meter-long shielded cable. The donut load cell is made of stainless steel  and can be used for most industrial environments.

  • Micro size
  • High precision
  • High frequency dynamic response frequency

Applications

  • Bolt loading
  • Automatic locking screw machine
  • Rolling mill systems

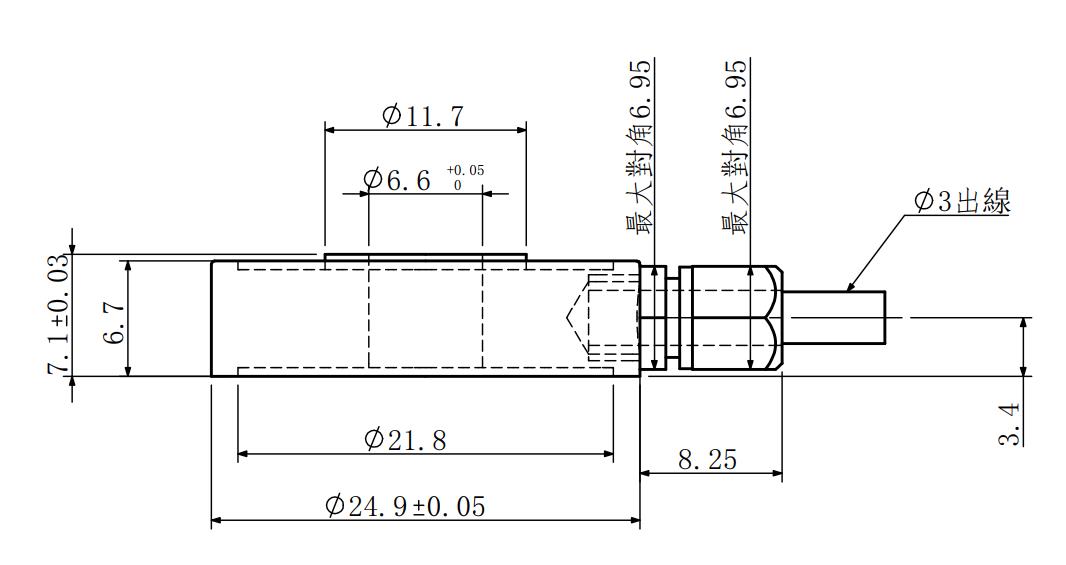

Mounting Dimension

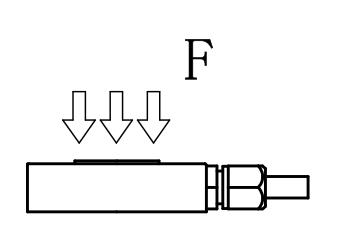

Load Direction

Wiring Code

Specifications



Specifications Technique
Capacity 50,100,200,500,1000N
Rated output 1.5±20%mV/V
Zero balance ±5%mV/V
Non-linearity 0.50%F.S.
Hysteresis 0.20%F.S.
Repeatability 0.20%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 700±10Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 10V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3m
Material Stainless Steel



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
