Miniature force sensor
Miniature force sensor

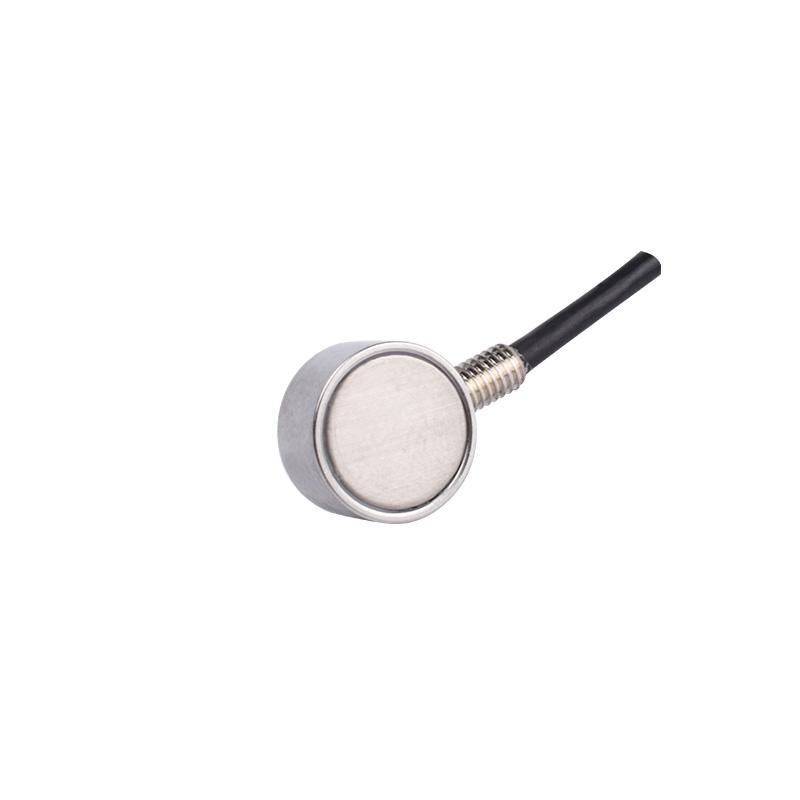

Subminiature compression load cell NF102

Model: NF102
Category: Single point load cells
Capacity: 50,100,200,500,1000N
Rated Output: 1.0±20%mV/V
Material: Stainless steel
Protection Class: ~
Weight: 0.1KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

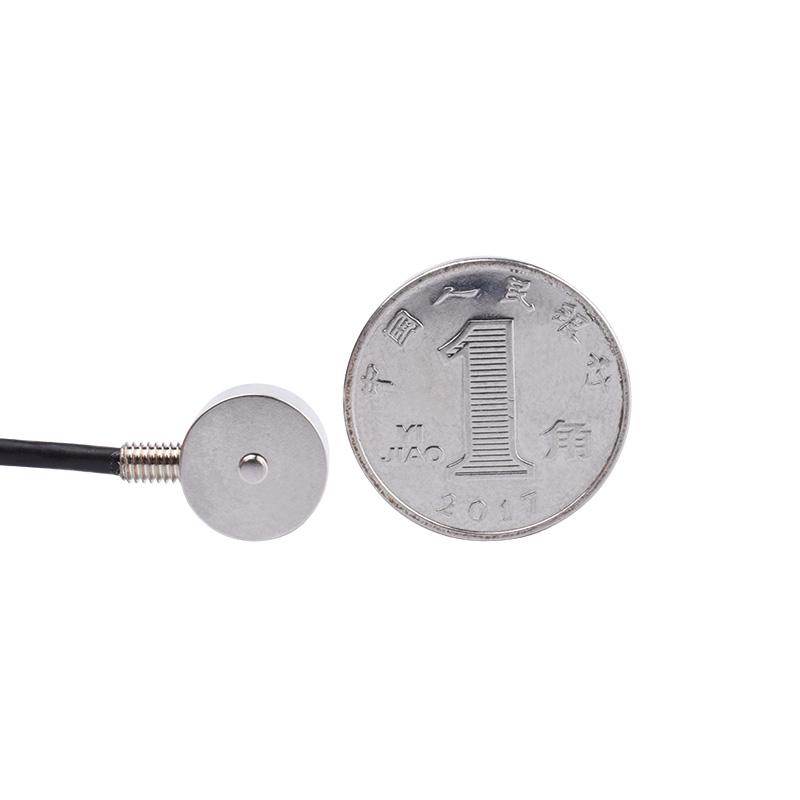

Subminiature compression load cell NF102 is made of stainless steel. The micro load cell has five measuring ranges, respectively 0-50N,0-100N,0-200N,0-500N,0-1000N.The small size force sensor has different threaded holes for different ranges.

  • Micro size
  • Stainless steel

  • Customized high temperature performance



Applications

  • Industrial testing
  • Machinery with limited mounting space
  • Clamping force measurement

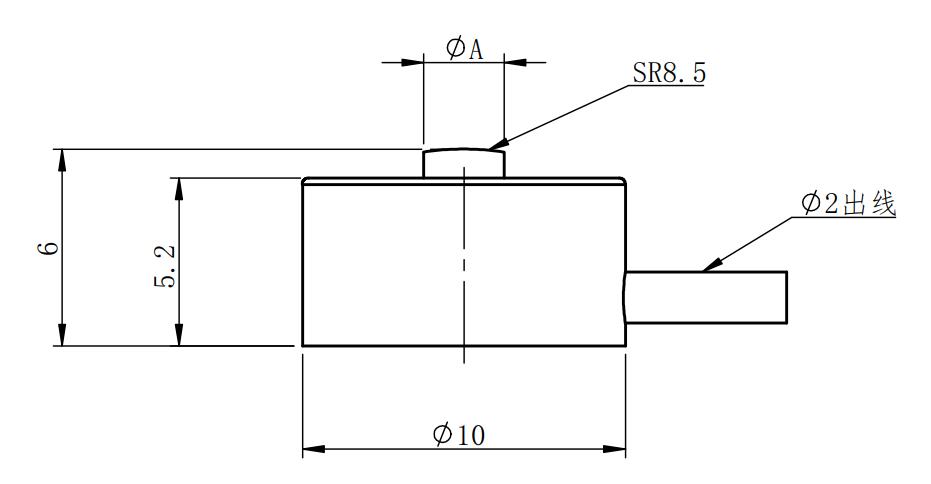

Mounting Dimension

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 50,100,200, 500,1000N
Rated output 1.0±20%mV/V
Zero balance ±2%F.S.
Non-linearity 0.5%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.2%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 800~1100Ω
Output impedance 800~1100Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ2×3000mm
