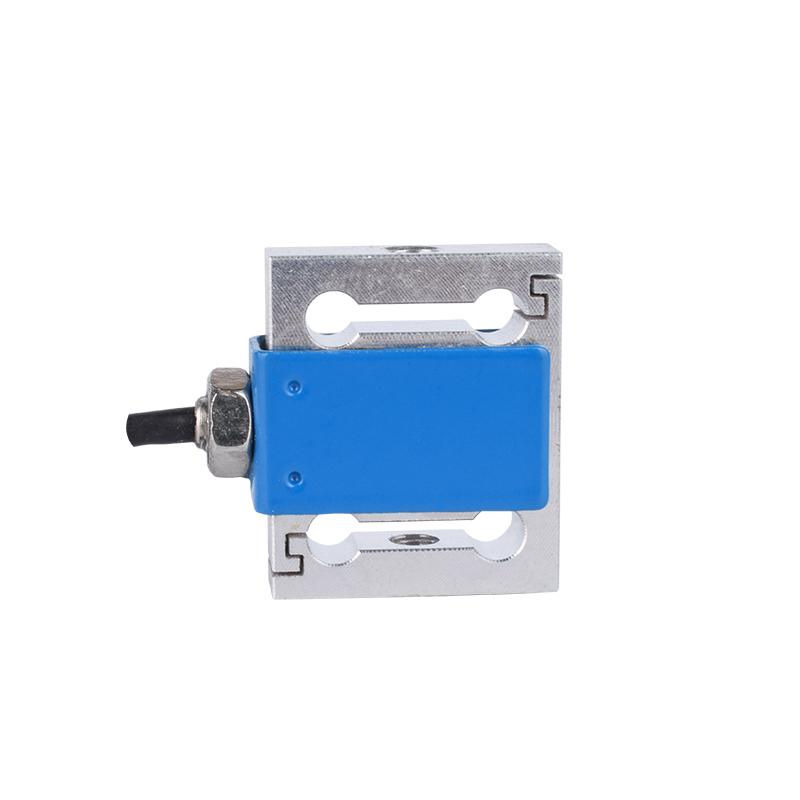

| Model: | NF302L |
| Category： | Tension/Compression Load Cells |
| Capacity: | 200,500g |
| Rated Output: | 1.0/2.0±10%mV/V |
| Material: | Aluminium alloy/Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.1kg |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

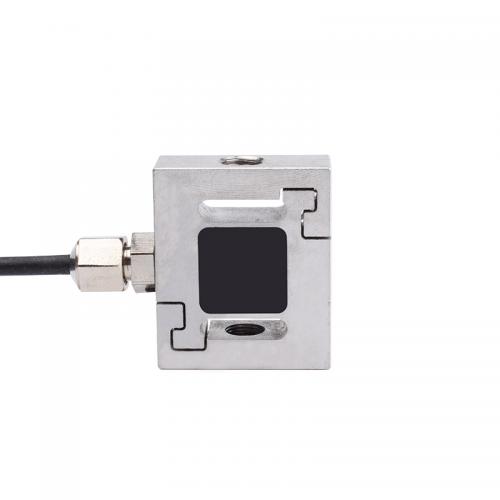

Minisize S-beam tension and compression load cell NF302L is easier to install because of its compact design and miniature size. The S shaped force transducer has two M3 threaded holes on each side for mounting and can convert tension or pressure to electrical output with maximum 0.05%F.S. non-linearity.
Applications

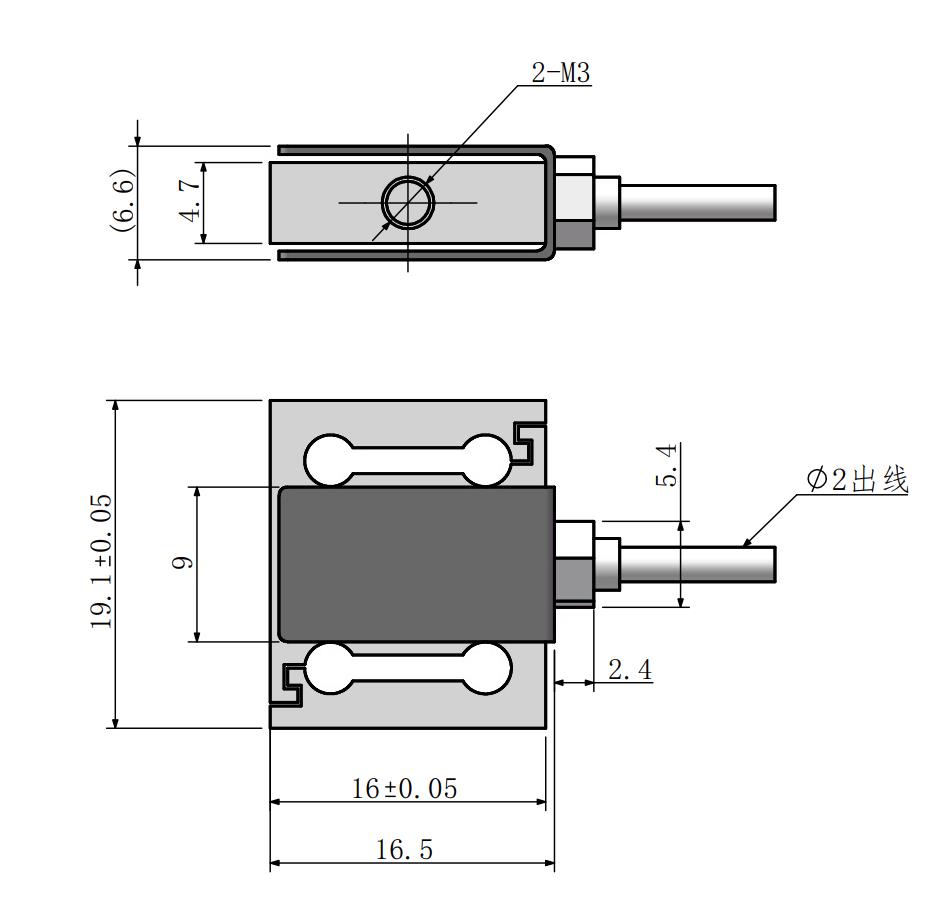

Mounting Dimension

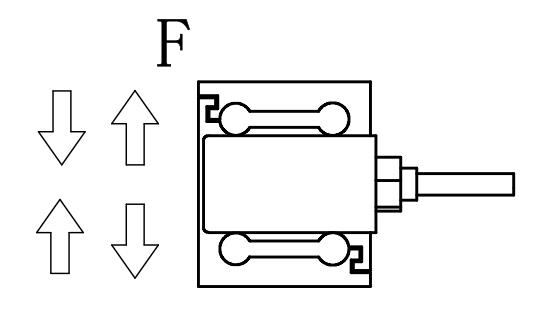

Load Direction

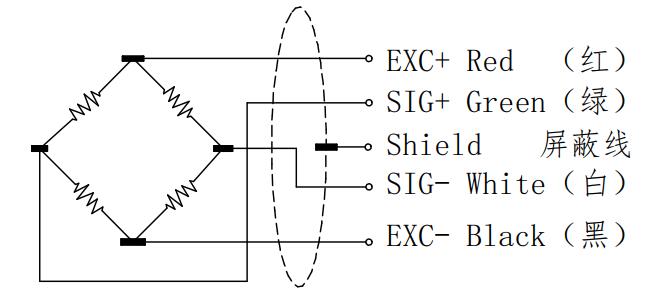

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 200,500g |
| Rated output | 1.0/2.0±10%mV/V |
| Zero balance | ± 0.05mV/V |
| Creep（30min） | 0.05%F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 400/350±5Ω |
| Output impedance | 400/350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×3000mm |
| Material: | Aluminium alloy/Stainless steel |
| Weight: | 0.1kg |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
