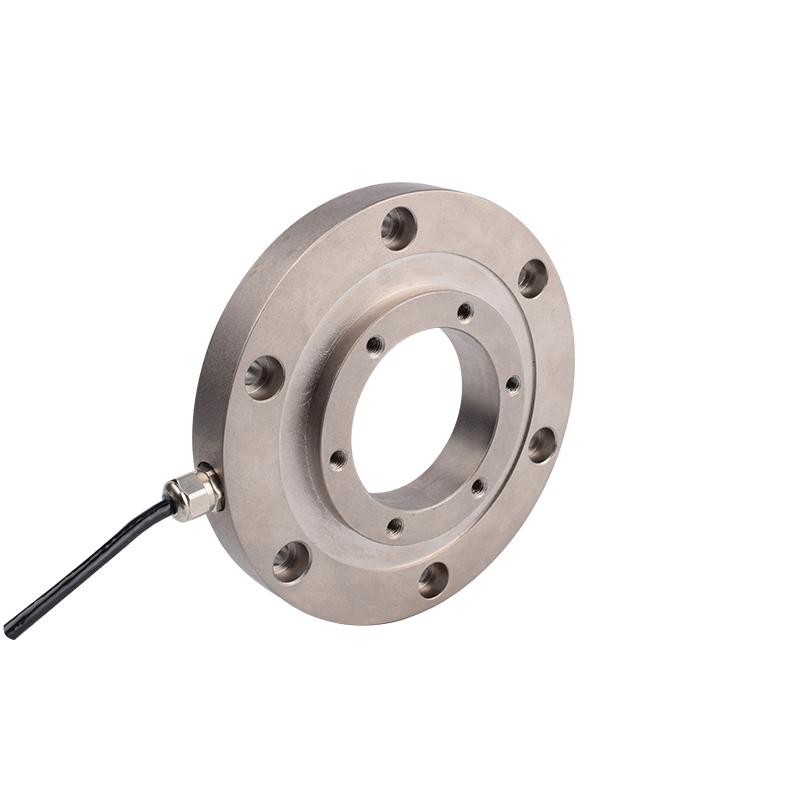

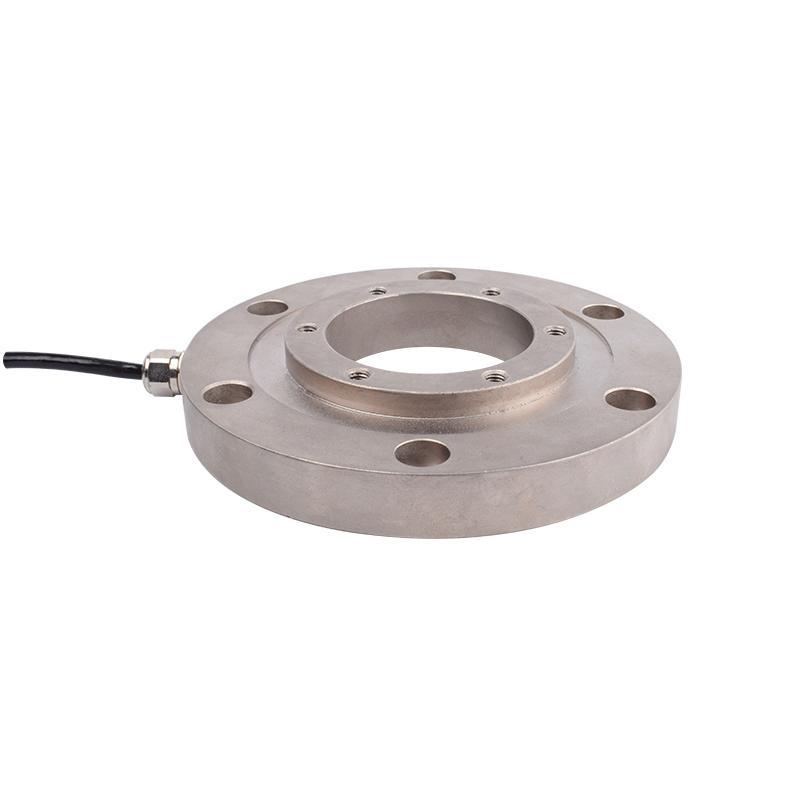

Pancake load cell shear web force sensor NF128

Model: NF128
Category: Pancake load cells
Capacity: 10,20,50,100,200,500KG
Rated Output: 1.0±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: 0.4KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Pancake load cell shear web force sensor NF128 have a central hole for measuring loads in either tension or compression force measurement application. The wheel shaped load cell can be used in limited and tight spaces due to its very thin size. The pancake force sensor offers 0-10kg,0-20kg,0-50kg,0-100kg,0-200kg,0-500kg six different measuring ranges.

Applications

  • Automatic assembly
  • Industrial weighing system
  • 3C product testing

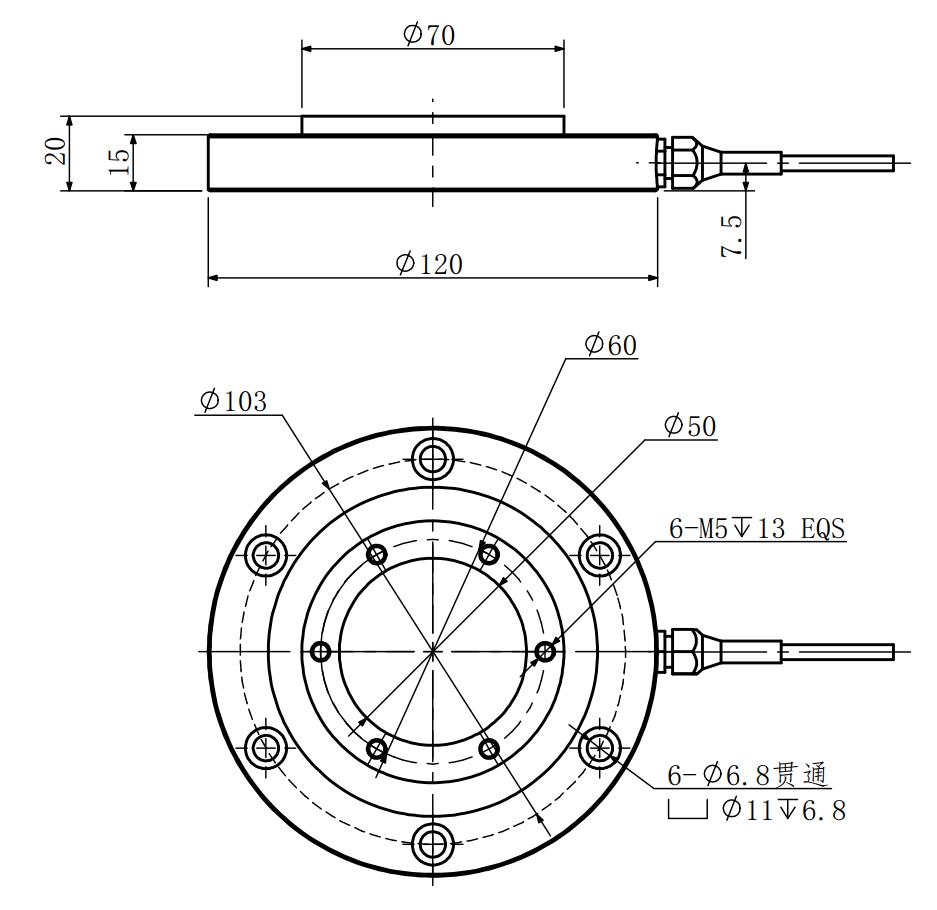

Mounting Dimension

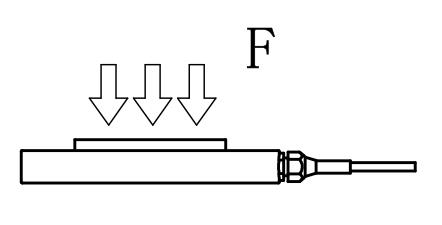

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 10,20,50,100,200,500KG
Rated output 1.0±10%mV/V
Zero balance ±1% mV/V
Non-linearity 0.2%F.S.
Hysteresis 0.3%F.S.
Repeatability 0.2%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ4×3000mm



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
