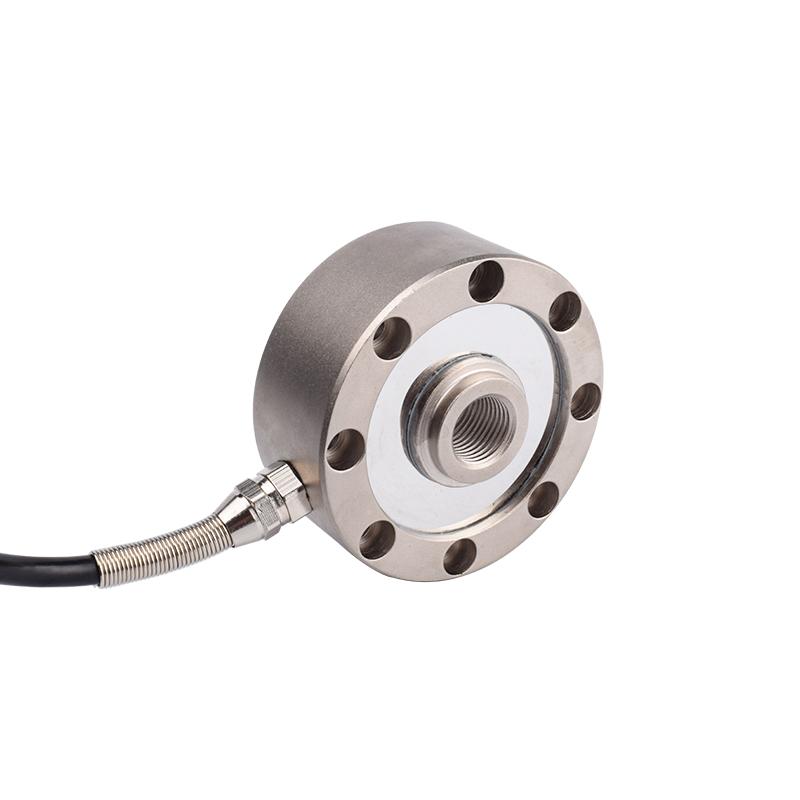

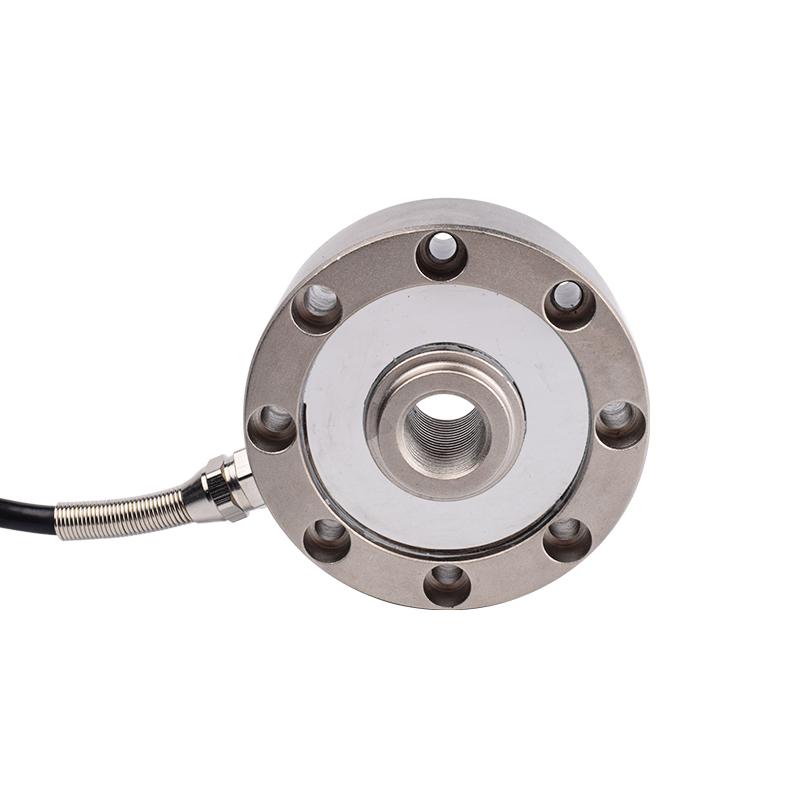

Wheel shaped load cell pancake transducer NF120A

Model: NF120A
Category: Pancake load cells
Capacity: 50,100,200,500,1000KG
Rated Output: 2.0±10%mV/V
Material: Stainless steel
Protection Class: ~
Weight: ~
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Wheel shaped load cell pancake transducer NF120A is based on foil strain gauge technology with mV signal output. The shear web load cell can measue loads in either tension or compression. The pancake load cell has five measuring ranges, respectively 0-50KG,0-100KG,0-200KG,0-500KG,0-1000KG. The force sensor can be adaptable to various applications.

  • Small size
  • Tension and compression bidirectional

  • High precision

Applications

  • Testing machine
  • Industrial weighing system
  • Hopper scale

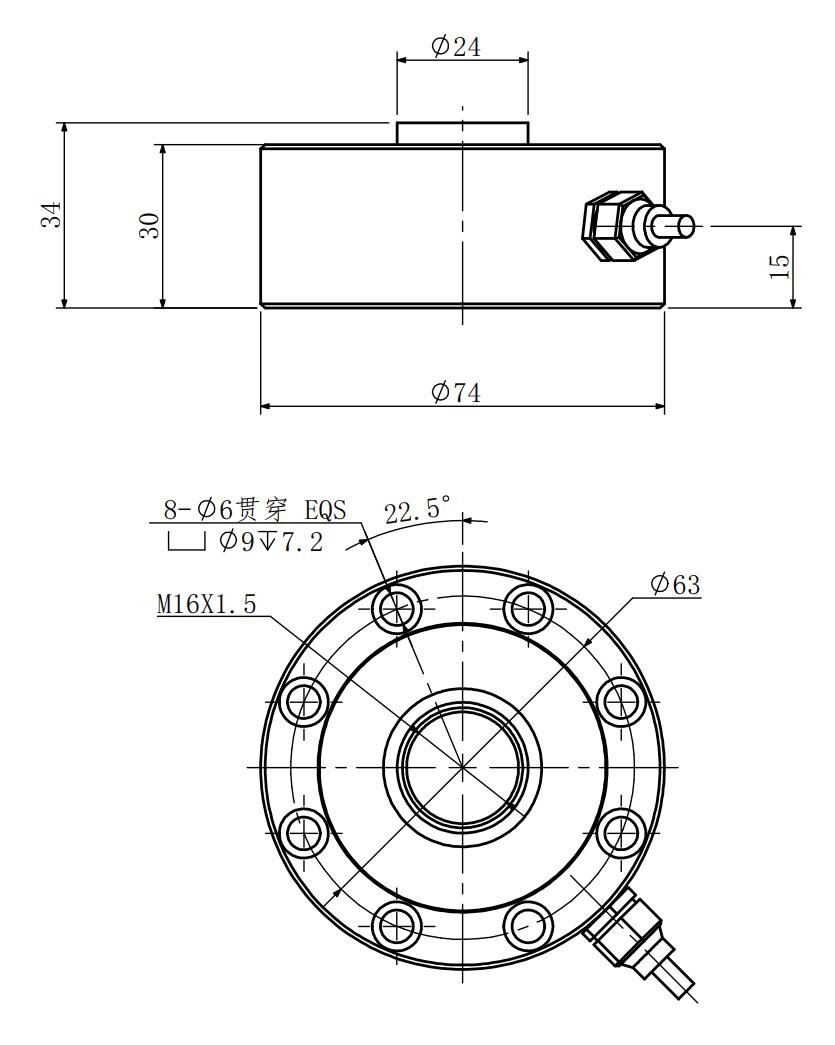

Mounting Dimension

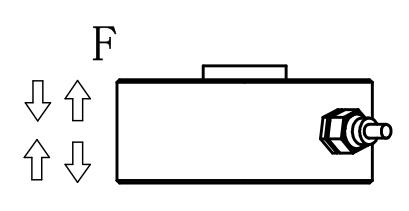

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 50,100,200,500,1000KG
Rated output 2.0±10%mV/V
Zero balance ±1% mV/V
Non-linearity 0.05%F.S.
Hysteresis 0.05%F.S.
Repeatability 0.03%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ6×5000mm
