| Model: | NF906 |
| Category： | Tension Sensors |
| Capacity: | 38N |
| Rated Output: | 0.6±10%mV/V |
| Material: | Aluminum alloy |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

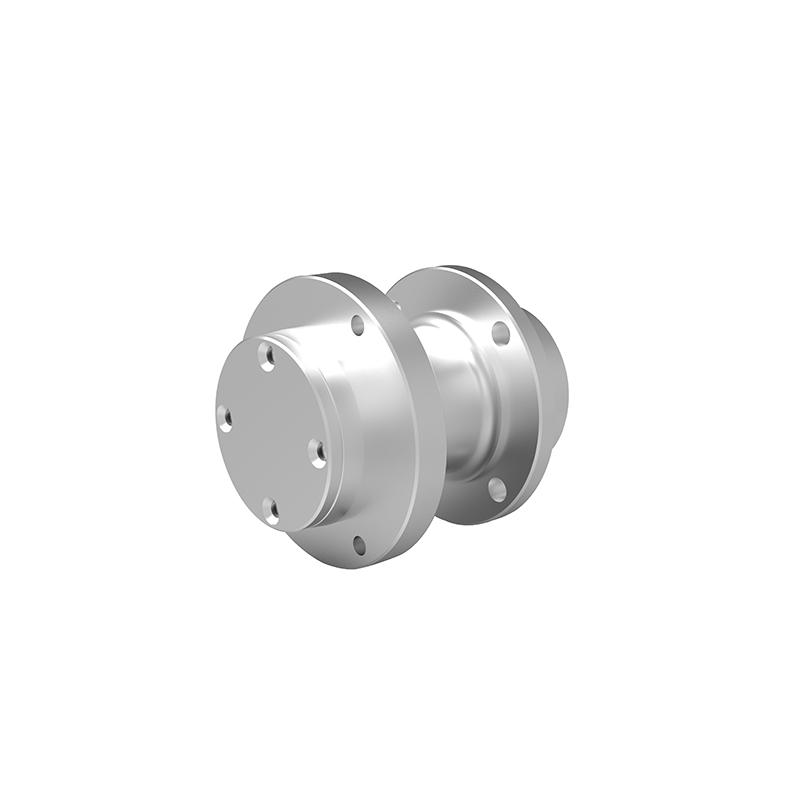

The rolls tension sensor NF906 can be used to measure the dynamic tension in moving yarns/cables and feed the tension back to the control unit for further control and adjustment. The range of this tension sensor is 38 N. Our company can also customize the range according to your needs.
Applications

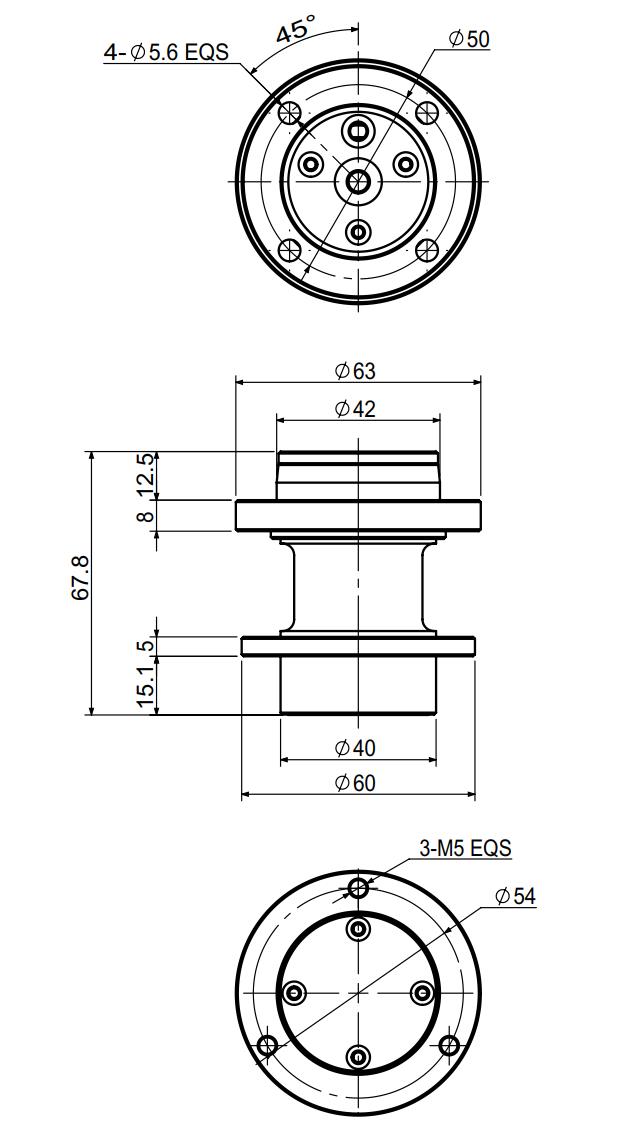

Mounting Dimension
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 38N |
| Rated output | 0.6±10%mV/V |
| Zero balance | ±1%mV/V |
| Creep（30min） | ≤0.1%F.S. |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Material | Aluminum alloy |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
