| Model: | NF603C |
| Category： | Torque Sensor |
| Capacity: | 0.1-5Nm |
| Speed range: | 8000rpm |
| Material: | ~ |
| Protection Class: | IP65 |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

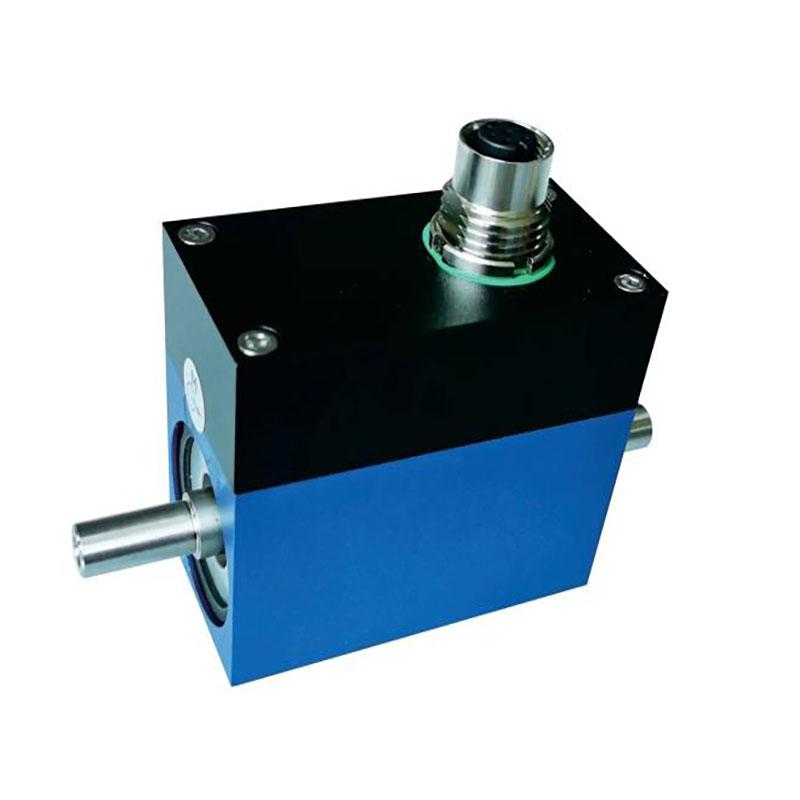

Contactless dynamic torque sensor 0.1-5Nm NF603C can reach speeds of up to 8,000 rpm in both clockwise and counterclockwise direction, and the rotary torque sensor is suitable for measuring torque mainly in small ranges (up to 5 Nm). Rotational torque transducer can be mounted between motor and load through couplings.
Applications

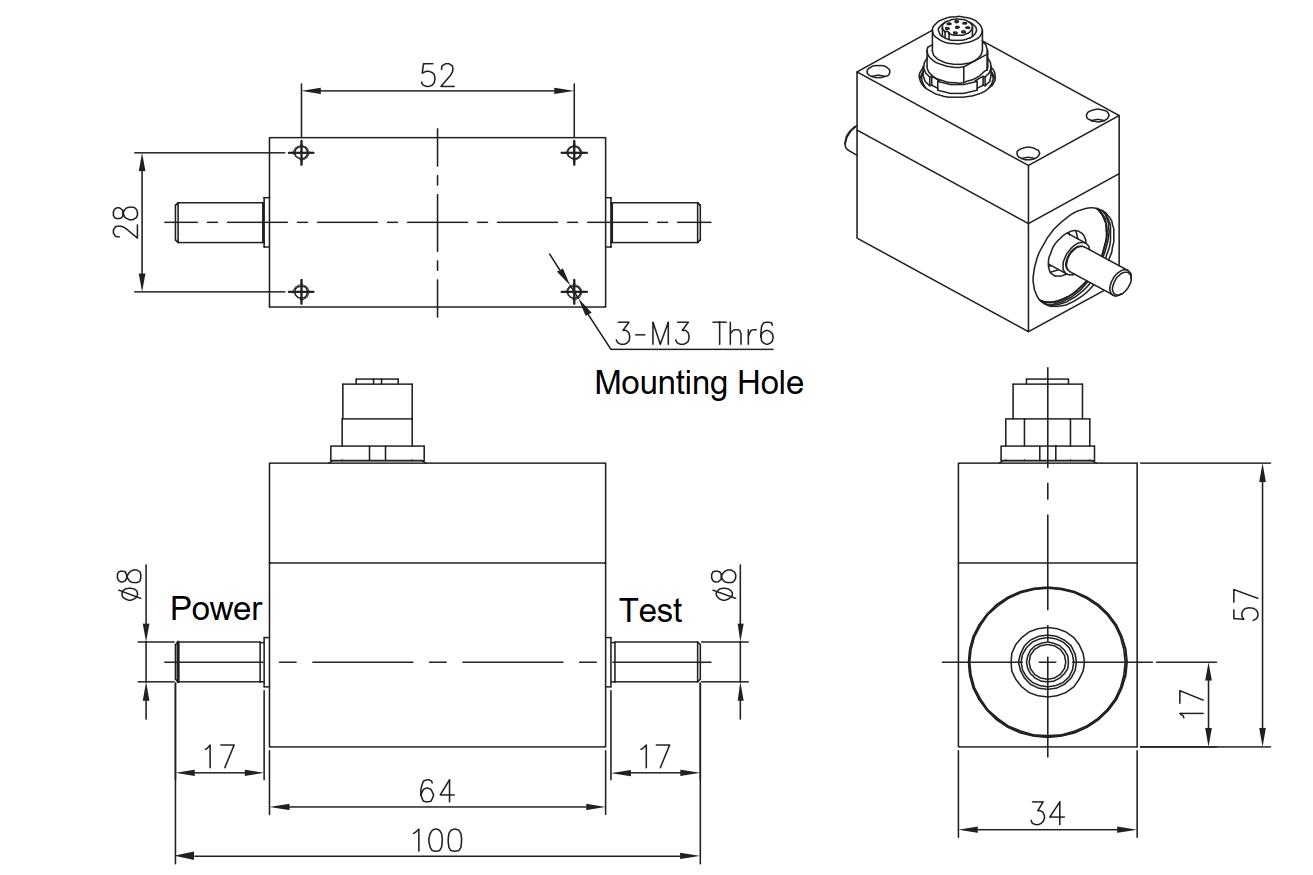

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 0.1~5N.m |
| Speed range | 8000rpm |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 12-30VDC |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | 5m |
| IP Class | IP65 |
