Model: | NF113A |
Category: | Single point load cells |
Capacity: | 10,20,30,50kg |
Rated Output: | 1.5±20%mV/V |
Material: | Stainless steel |
Protection Class: | ~ |
Weight: | 0.1kg |
Installation Dimensions: | As shown in the mounting dimension below |
Product Orgin: | China |
Payment: | 100% payment before shipment |
Features

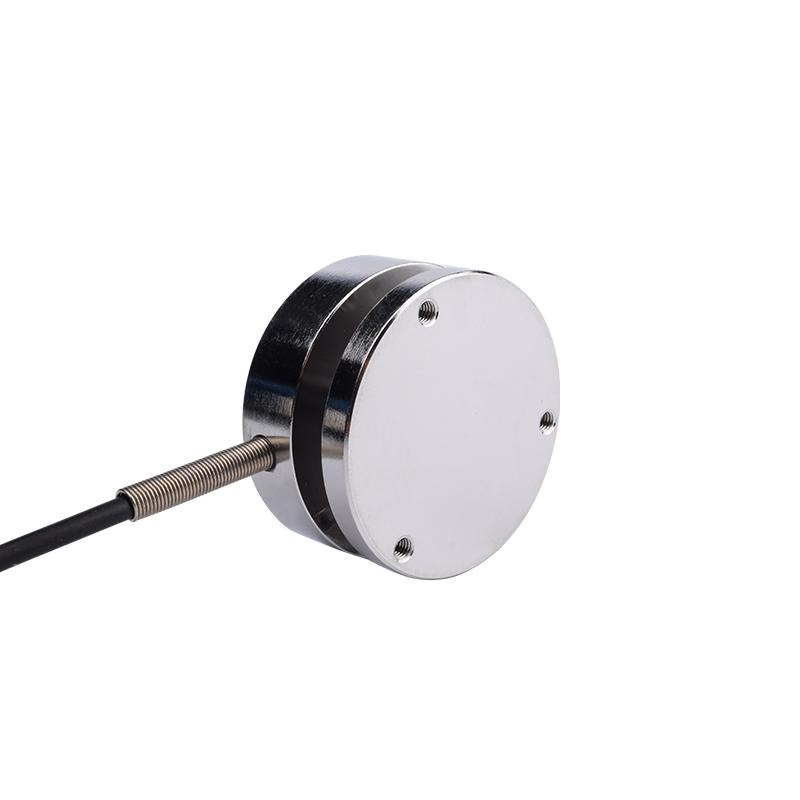

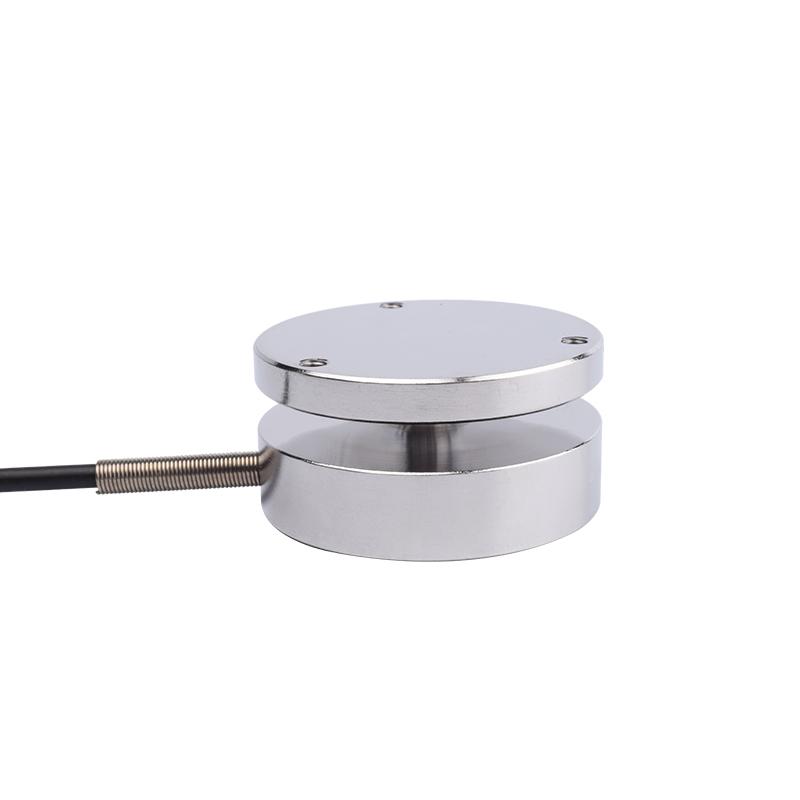

Subminiature flange force sensor NF113A uses metal foil strain gauge technology for compression force measurement. The flange on the miniature force sensor allows the pressure to be evenly distributed. The small size load cell is made of stainless steel.
Small deformation
Applications

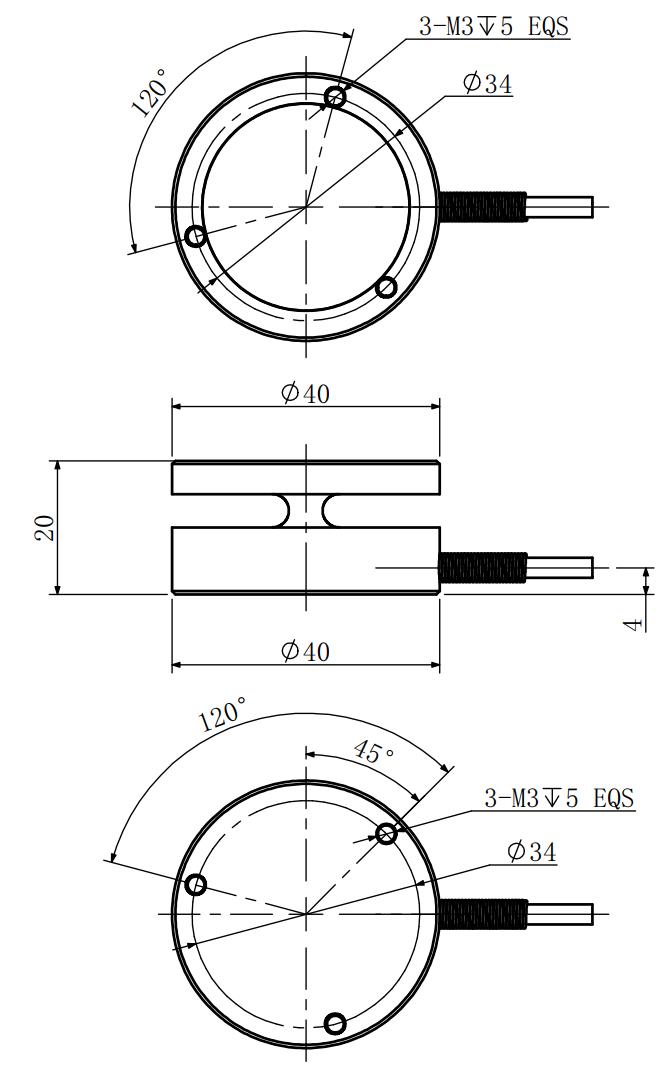

Mounting Dimension

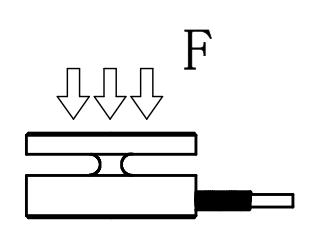

Load Direction
Wiring Code
Specifications
Specifications | Technique |
Capacity | 10,20,30,50kg |
Rated output | 1.5±20%mV/V |
Zero balance | ±0.05mV/V |
Non-linearity | 0.20%F.S. |
Hysteresis | 0.20%F.S. |
Repeatability | 0.10%F.S. |
Temp.effect on output | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 800~1000Ω |
Output impedance | 800~1000Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operation temp range | -20~80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ3×3m |
Material | Stainless Steel |
