Tension load cell

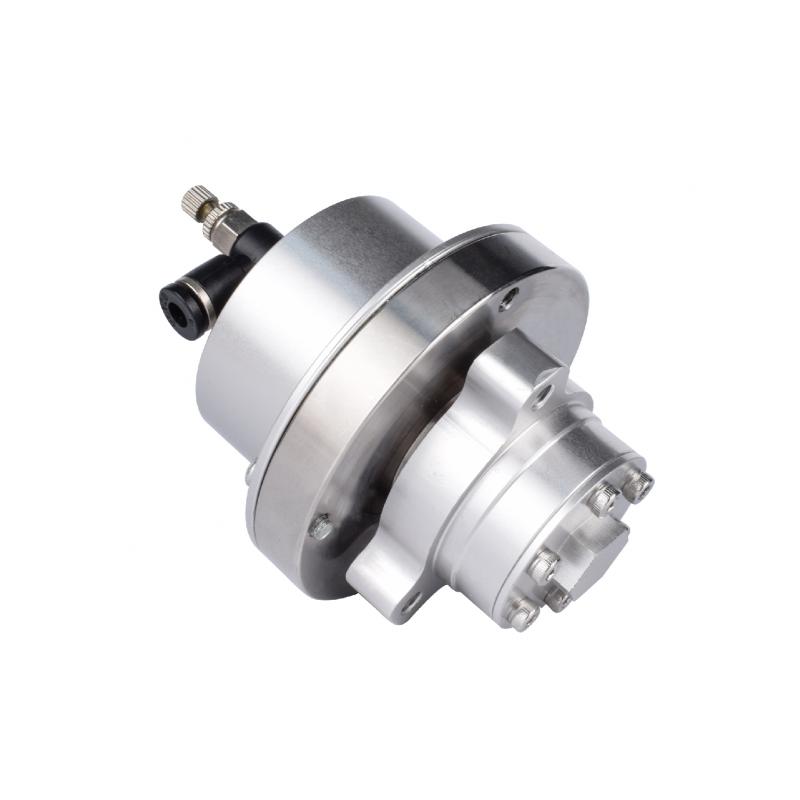

Tension pick-up load cell NF905

Model: NF905
Category: Custom Load Cells
Capacity: 38N(Range can be customized)
Rated Output: 0.6±20%mV/V
Material: Aluminum alloy
Protection Class: ~
Weight: 0.5KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Tension pick-up load cell NF905 is used to measure the tension value of the coil in the tension control process. When the tension sensor is subjected to external pressure, the resistance value of the strain gauge will also change, and the amount of the change value will be proportional to the size of the tension.

Applications

  • Pharmaceutical industry
  • Chemical industry the
  • Food industry

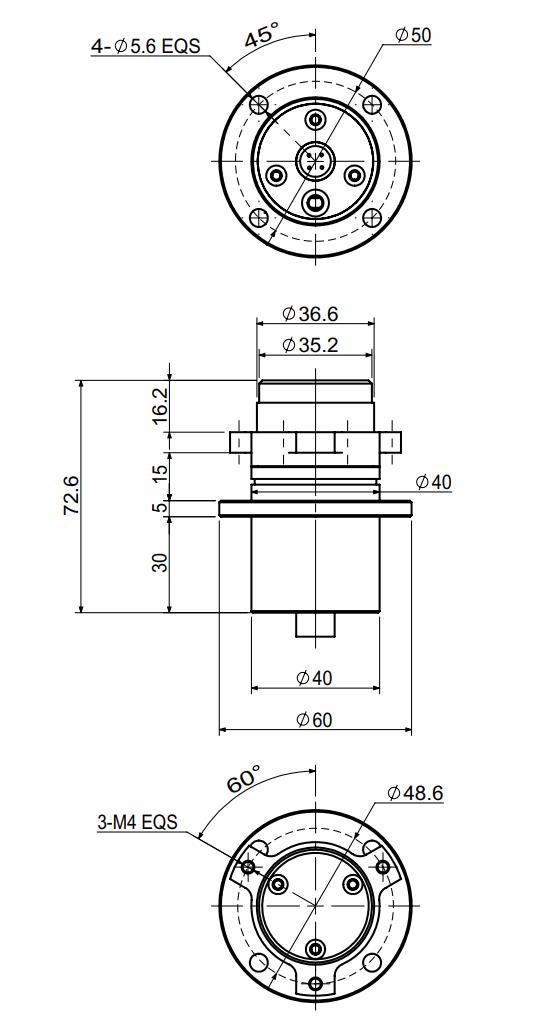

Mounting Dimension

Wiring Code

Specifications

Specifications Technique
Capacity 38N(Range can be customized)
Rated output 0.6±20%mV/V
Zero balance ±2%mV/V
Creep30min 0.05%F.S.
Non-linearity ≤0.1%F.S.
Hysteresis ≤0.3%F.S.
Repeatability ≤0.05%F.S.
Input impedance 350±10Ω
Output impedance 300±5Ω
Temp.effect on output 0.05%F.S./10 C
Temp.effect on zero 0.05%F.S./10 C
Insulation resistance 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~40
Operation temp range -20~60
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Material Aluminum alloy
Weight 0.5kg



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
