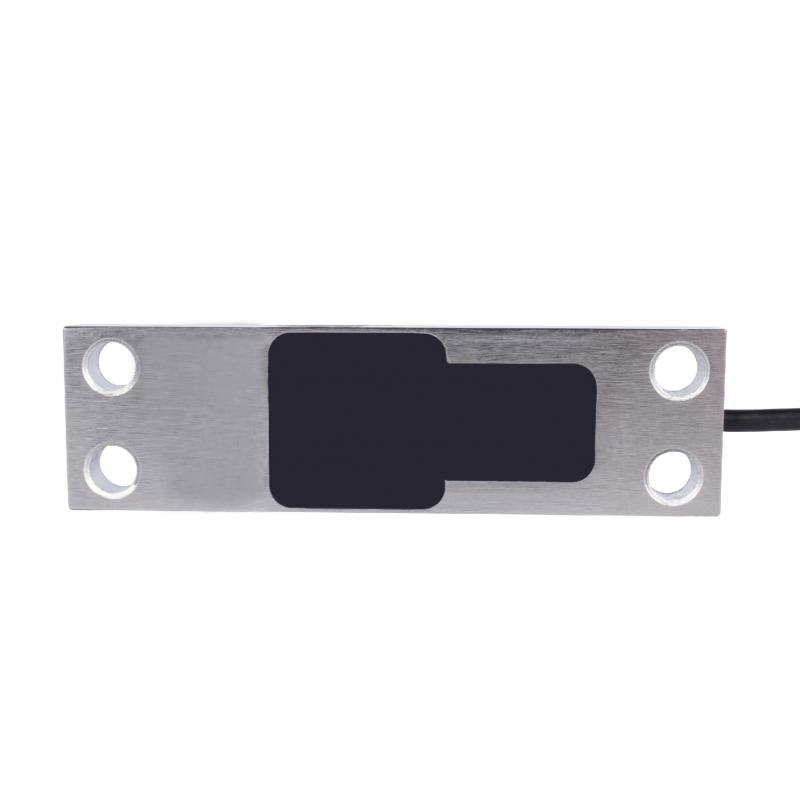

Strain monitoring of structural parts load cell NF902

Model: NF902
Category: Custom Load Cells
Capacity: 50μm/m
Rated Output: 1.5±10%mV/V
Material: Stainless steel
Protection Class: IP66
Weight: 0.4KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Strain monitoring of structural parts load cell NF902 is made of stainless steel. This sensor can measure the amount of tension or compression per meter. The custom load cell can be used in various environments and applications

  • Mini size
  • Customizable

  • High precision

Applications

  • Structural component

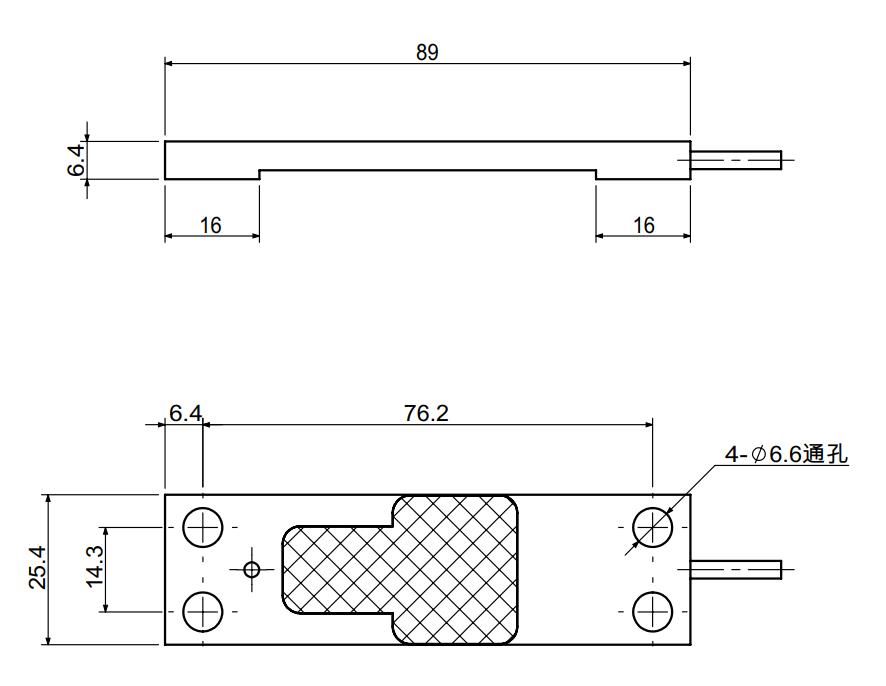

Mounting Dimension

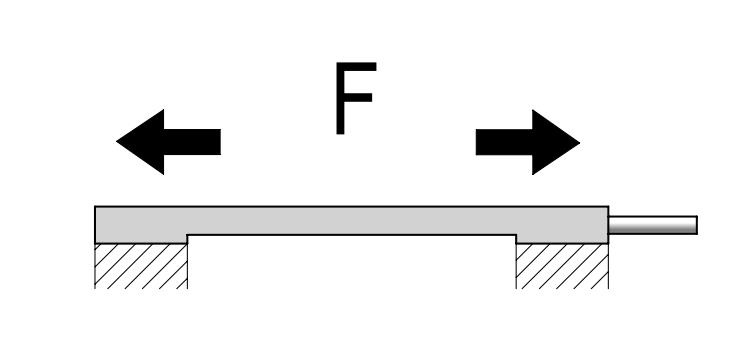

Load Direction

Wiring Code

Specifications

Specifications Technique
Capacity 50μm/m
Rated output 2.0±10%mV/V
Zero balance ±0.05mV/V
Input impedance 1000±10Ω
Output impedance 1000±10Ω
Temp.effect on output 0.2%F.S./10 C
Temp.effect on zero 0.5%F.S./10 C
Insulation resistance 5000MΩ/100VDC
Recommended excitation 5~10V
Maximum excitation 15V
Compensated temp range -10~40
Operation temp range -10~60
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ3×3000mm
Material Stainless steel
IP Class IP66
Weight 0.4kg



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
