Model: | NF301 |
Category: | Tension/Compression Load Cells |
Capacity: | 5,10,20,50,100,200N |
Rated Output: | 2.0±10%mV/V |
Material: | Stainless steel |
Protection Class: | ~ |
Weight: | ~ |
Installation Dimensions: | As shown in the mounting dimension below |
Product Orgin: | China |
Payment: | 100% payment before shipment |
Features

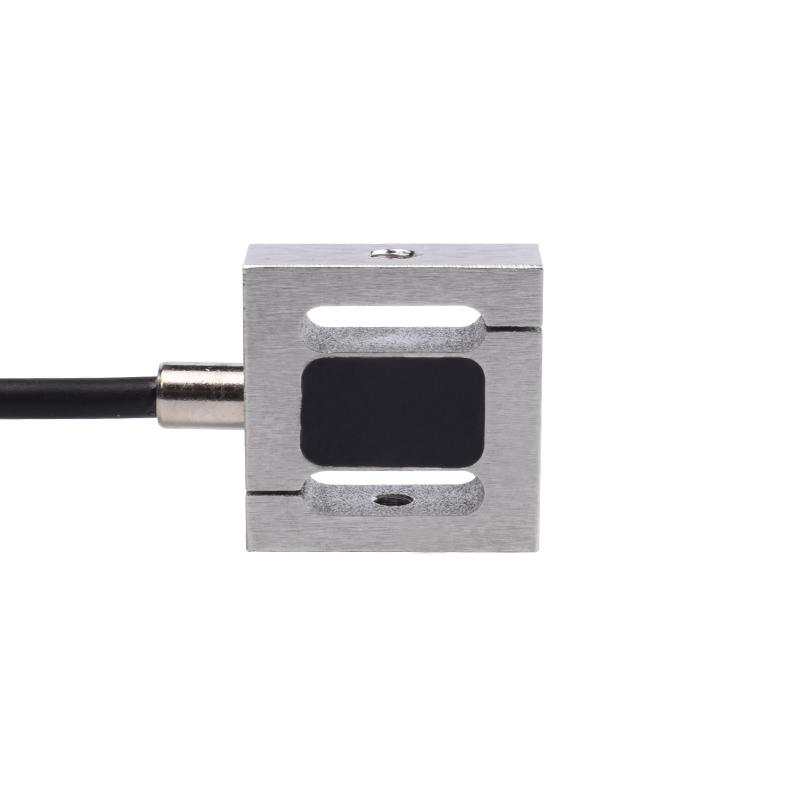

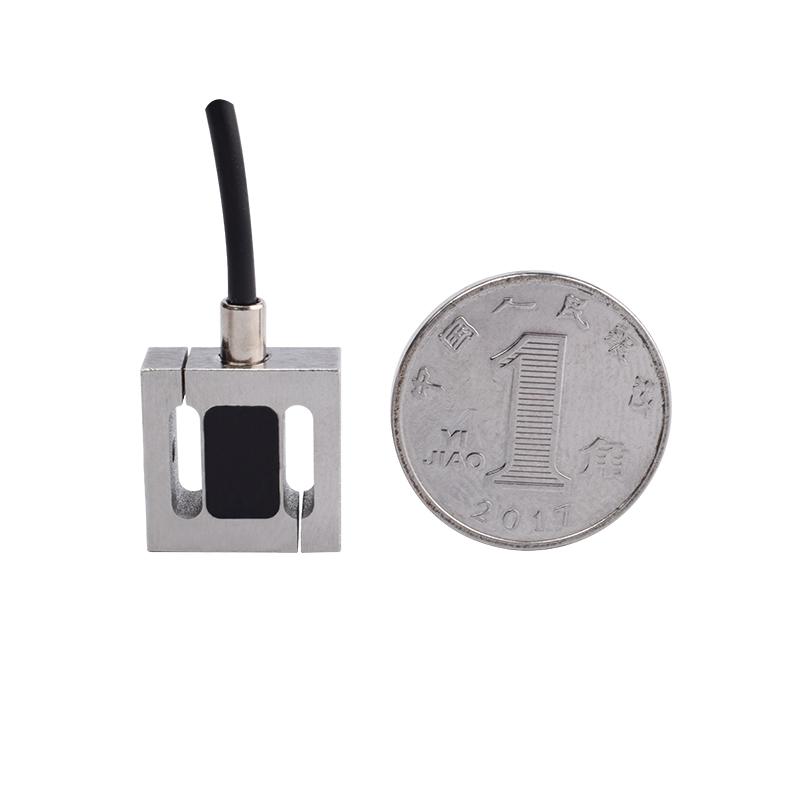

Miniature S-beam force sensor NF301 is available in ten ranges 0-5N,0-10N,0-20N,0-50N,0-100N,0-200N to choose from. Because of the wide range and small size of the S shaped force transducer, it can be used in many application, such as finite space and tight space locations.
Applications

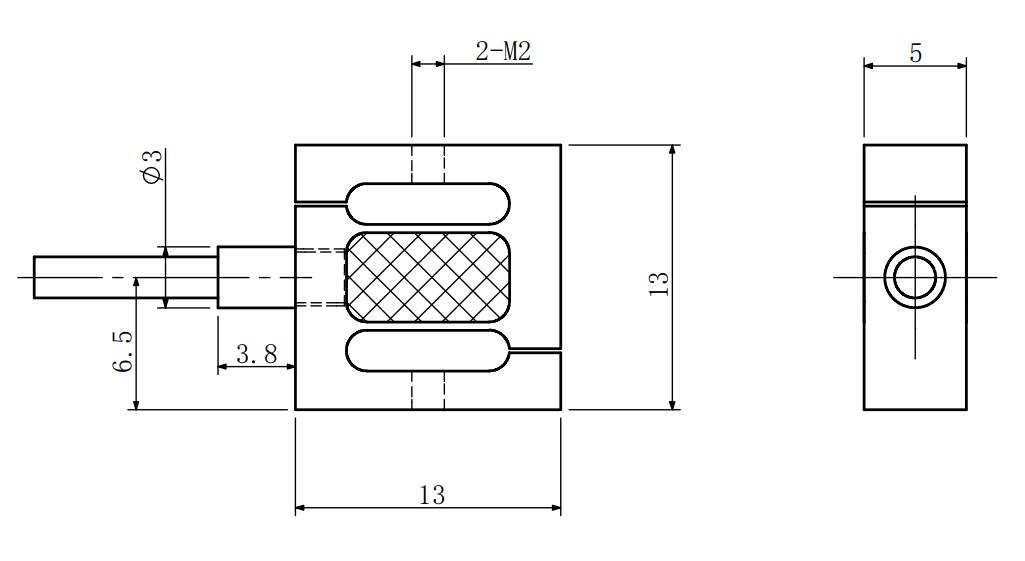

Mounting Dimension

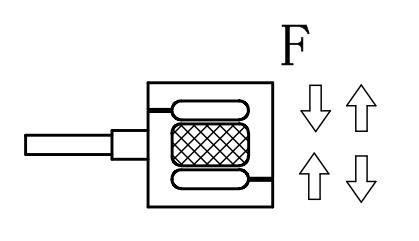

Load Direction
Wiring Code
Specifications
Specifications | Technique |
Capacity | 5,10,20,50,100,200N |
Rated output | 2.0±10%mV/V |
Zero balance | ±0.02 mV/V |
Non-linearity | 0.05%F.S. |
Hysteresis | 0.05%F.S. |
Repeatability | 0.05%F.S. |
Temp.effect on output | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 350±30Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operation temp range | -20~80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | φ2×3000mm |
