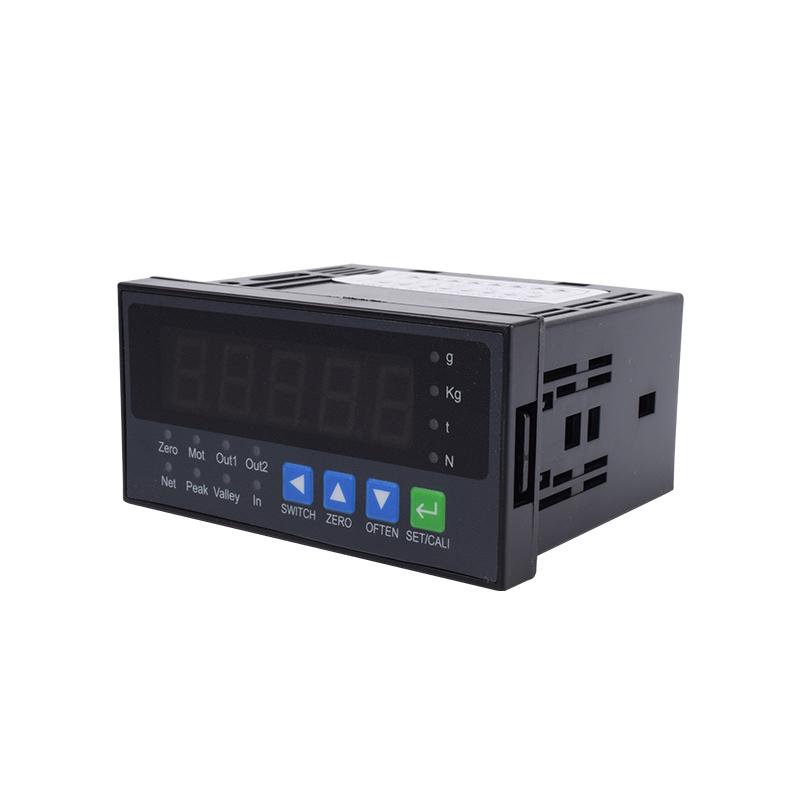

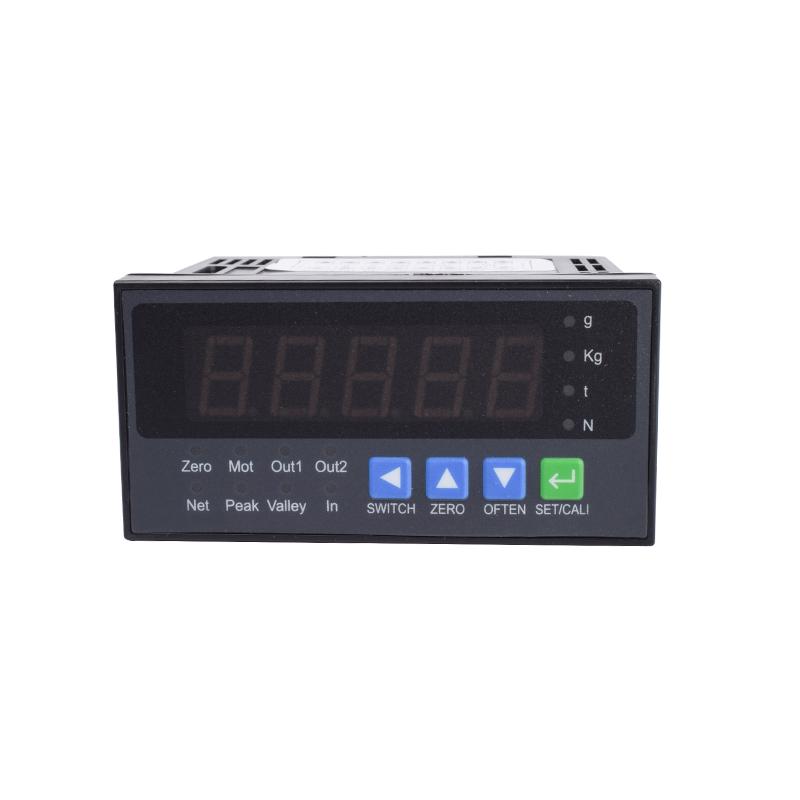

Load cell display control instrument NF04

Model: NF04
Category: Load cell instruments
Comprehensive accuracy: <0.01%
Accept Sensitivityt: -3.6~+3.6 mV/V
Material: ~~
Protection Class: ~
Weight: 0.3KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

The load cell display control instrument NF04 is used to convert force signal into digital communication signal or standard analog output signal. The load cell indicator is compatible with most load cells, multi-axis Sensors and torque sensors on the market. The load cell instrument can display real-time measurement, peak value, output current value and I/O status information in a single-row 5-bit LED display.

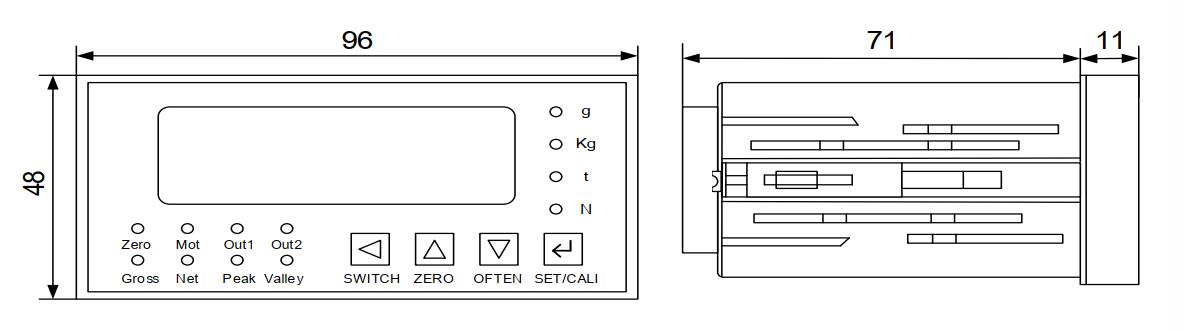

Mounting Dimension

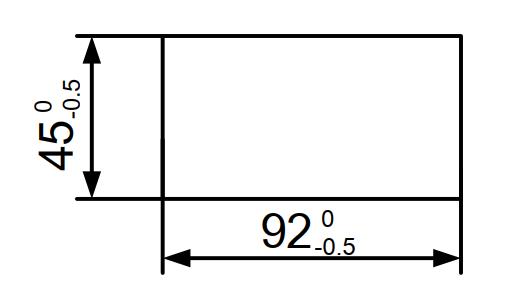

The Size of Mounting Hole

Specifications

Specifications Technique
Display Single-row 5-bit LED display
Readability 1/30000
Output linear 0.002%
Comprehensive accuracy <0.01%
A/D Conversion speed 10,40,840 times per second
Accept Sensitivity -3.6~+3.6 mV/V
Input load 1-6 350Ωsensors
Output specification 0-10V / 4-20mA
Temp.effect on output 10ppm /
Temp.effect on zero 10μV /
Excitation voltage 5VDC
Power supply 24±5VDC
Power waste 10W
Operation temp range -20-70
Weight approx. 0.3kg



Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
Related Products
Load cell amplifier

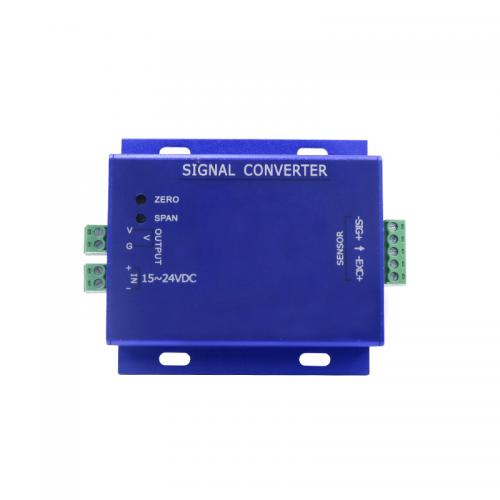

Single-channel load cell amplifier NF01A
Model: NF01A Category: Load cell instruments Comprehensive accuracy: ±0.05%FS Input specification: 0.4-6mv/v Material: Aluminum ally Protection Class: IP64 Weight: ~ Installation Dimensions: As shown in the mounting dimension below Product Orgin: China Payment: 100% payment before shipment
details
Load cell instruments

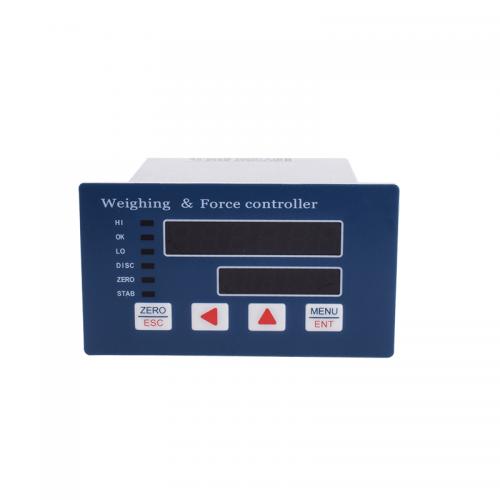

Industrial control instrument for load cell NF05
