| Model: | NF202 |
| Category： | Tension/Compression Load Cells |
| Capacity: | 20,50,100,150,200,300,500N/1,2 ,3,4,5KN |
| Rated Output: | 1.0±20%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.2KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

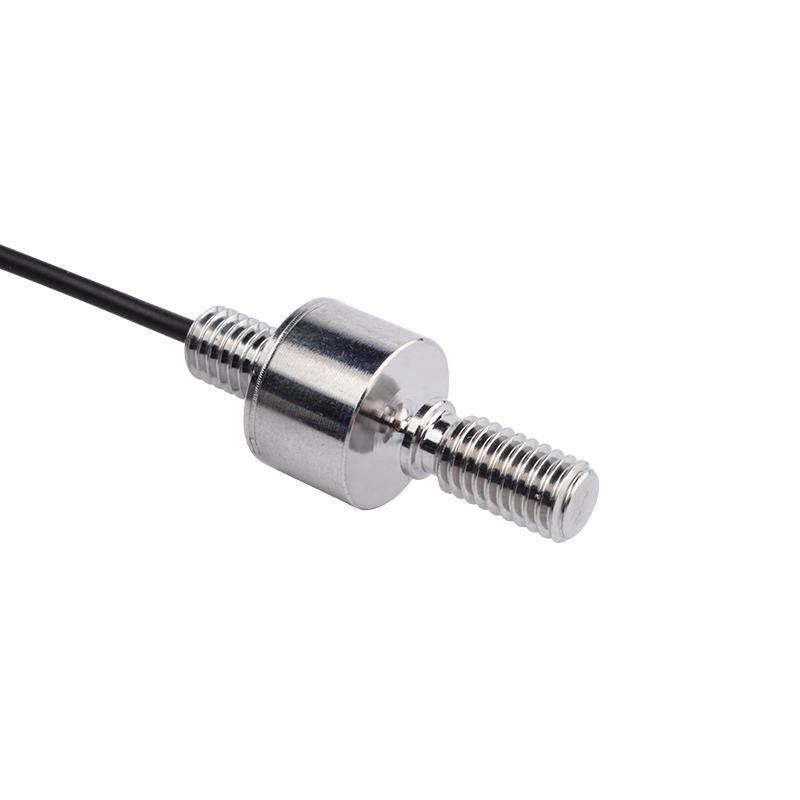

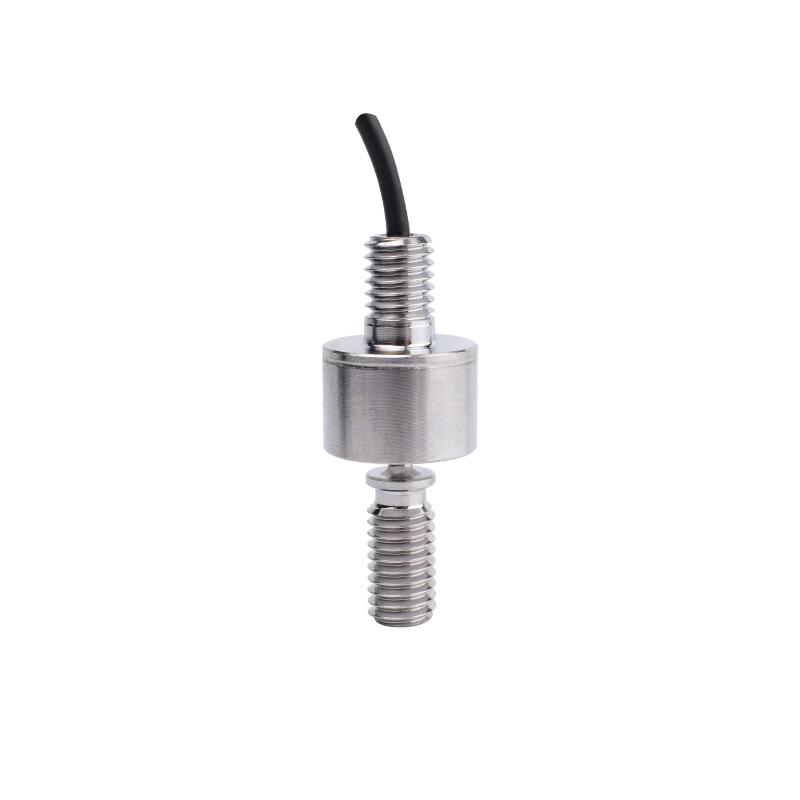

Multi range tension pressure sensor NF202 has M6 or M8 threaded rods located on both sides of the transducer for measuring loads in either tension or compression.. The pull push force sensor is available in a wide capacity range from 20N to 5000N. The pull push force sensor is particularly well suited for inline applications.
Applications

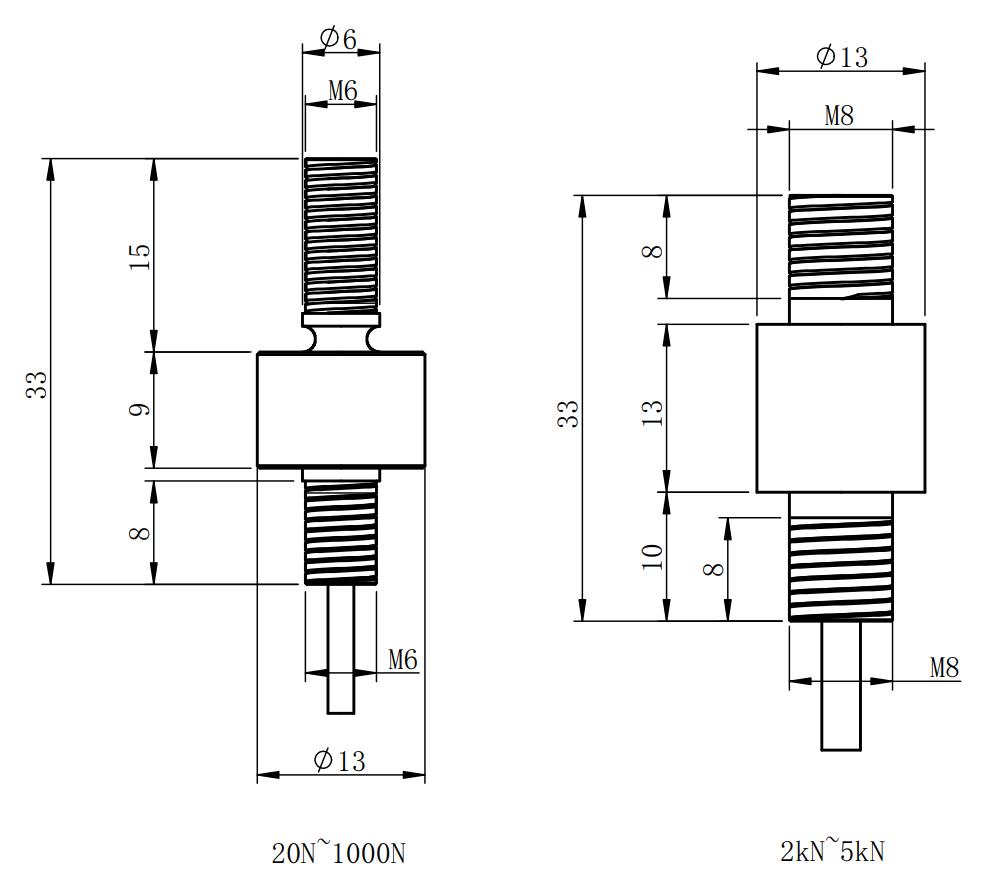

Mounting Dimension

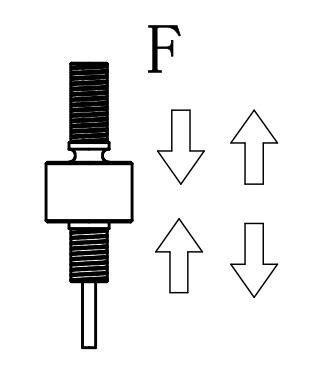

Load Direction

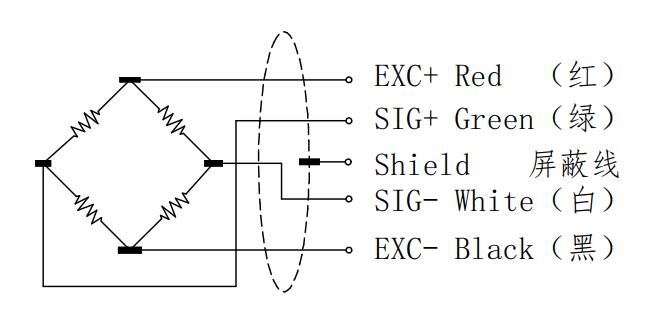

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 20,50,100,150,200,300,500N/1,2 ,3,4,5kN |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.2%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ2×3000mm/φ3×3000mm |
