| Model: | NF302B |
| Capacity: | 10,20,50,100,200KG |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.1KG |
| Installation Dimensions: | M6 thread |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

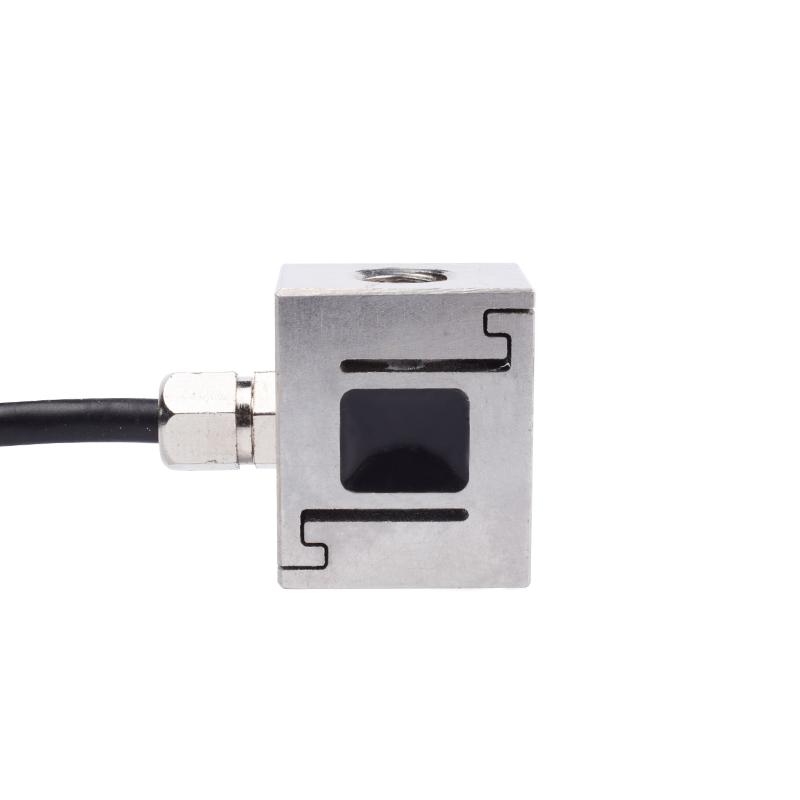

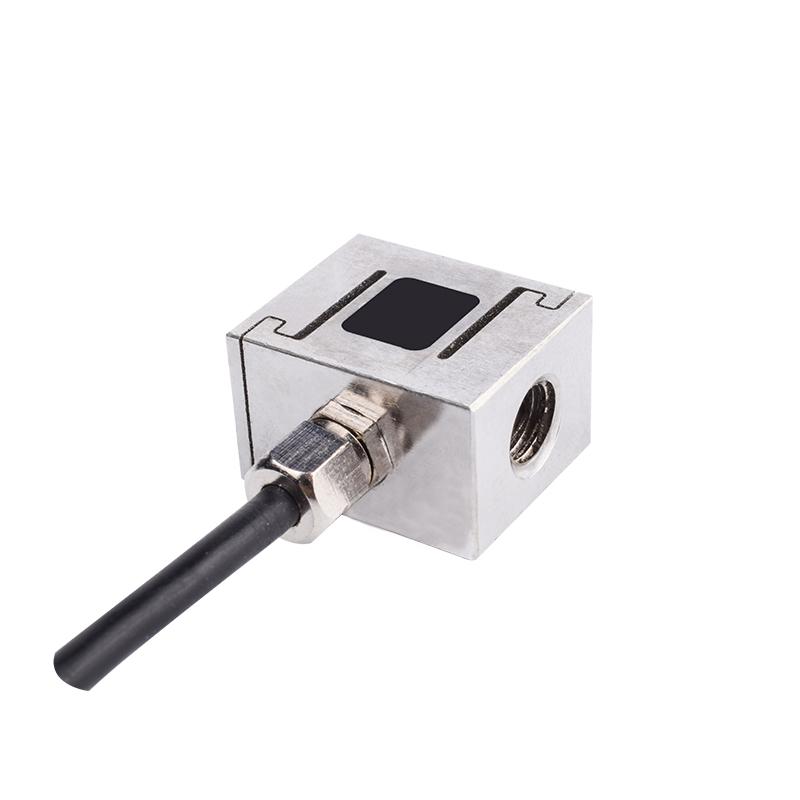

S type tension and compression force sensor with M6 threaded hole NF302B is one of Naturoll’s most in-demand miniature load cells, due to its small footprint, high performance and exceptional quality and durability.
Applications

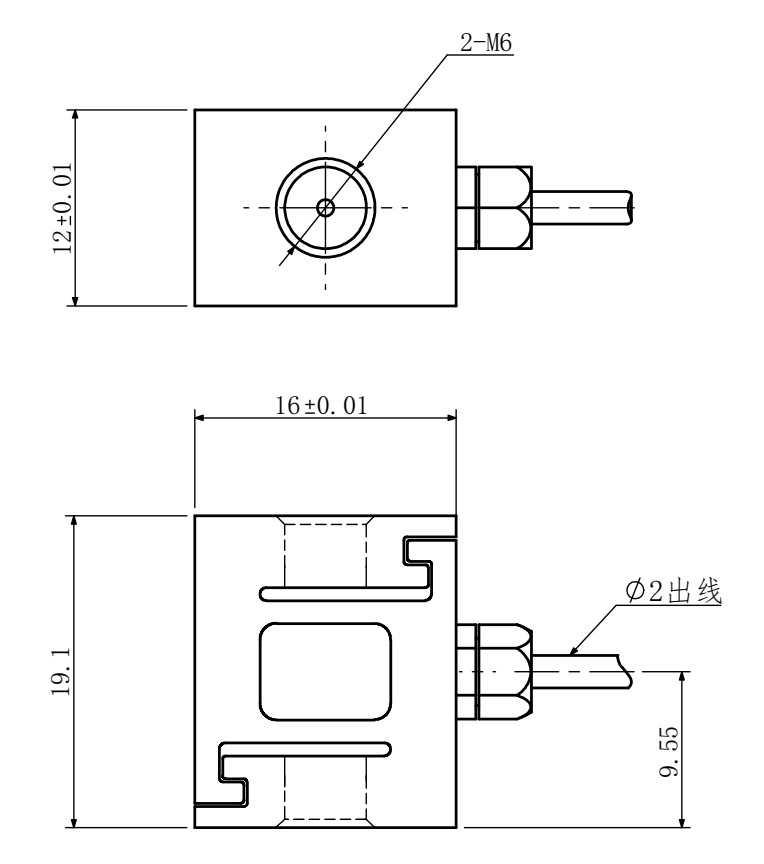

Mounting Dimension

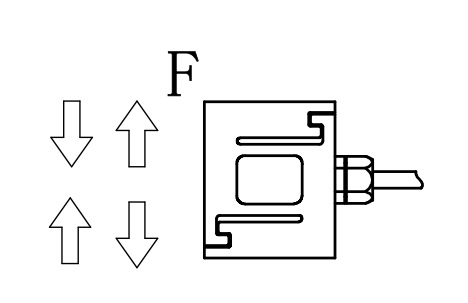

Load Direction

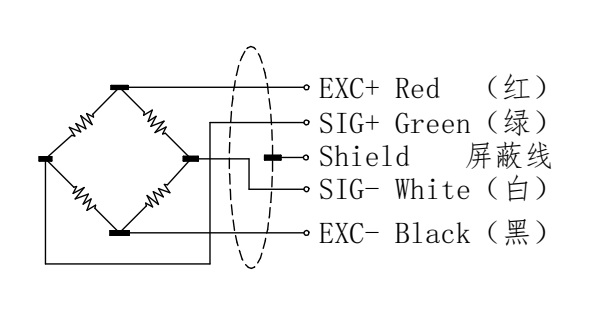

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10，20，50，100，200kg |
| Reted output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep（30min） | ≤0.05%F.S. |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 C |
| Operating Temp Range | -20~80 C |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 3x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
