| Model: | NF104 |
| Category： | Single point load cells |
| Capacity: | 5,10,20,30,100kg |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | 0.1KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

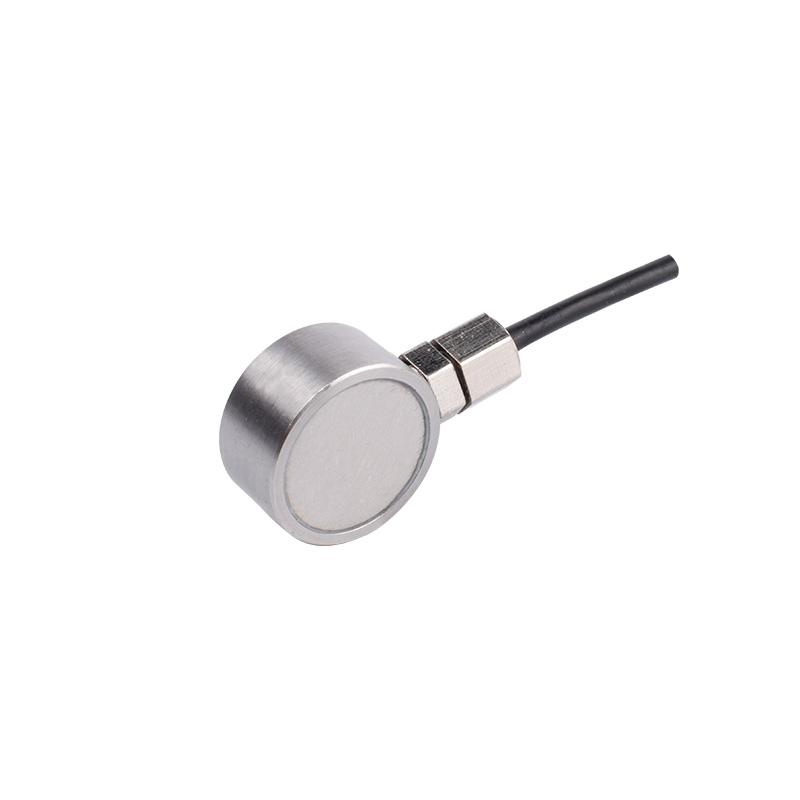

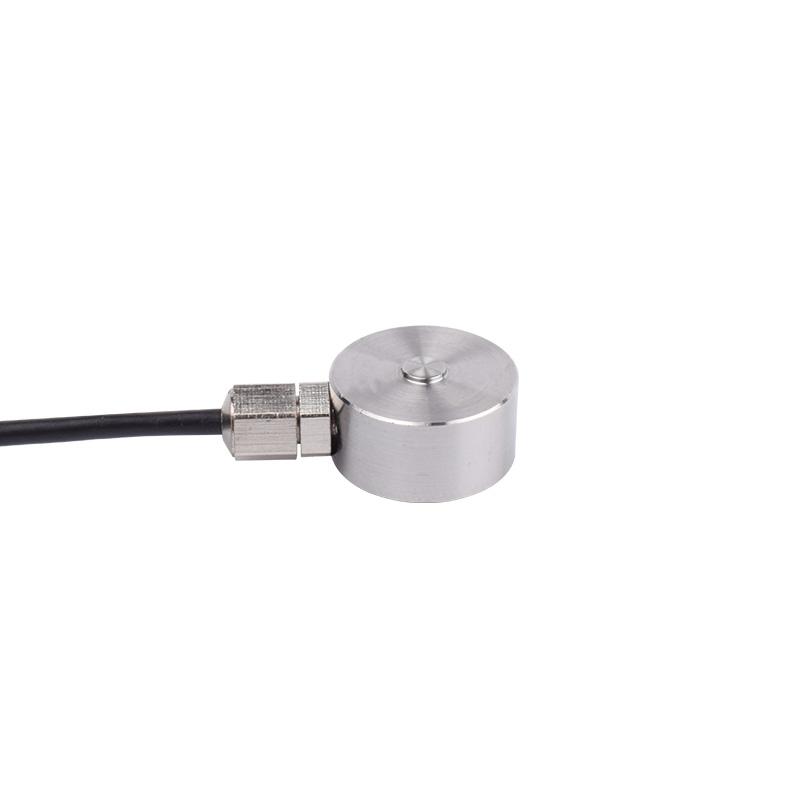

Minitype pressure transducer NF104 is useed for compression force measurement application. The load button load cell is capable of measuring compression forces up to 100kg using strain gauge technology. The miniature force sensor can be used in tight Spaces due to its small size.
Stainless steel
Applications

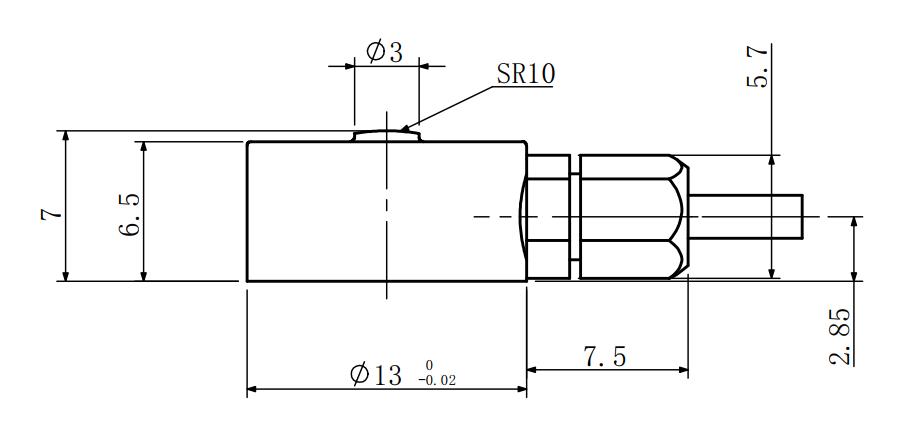

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,30,100kg |
| Reted output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep（30min） | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.5%F.S. |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | ‘-10~60℃ |
| Operating Temp Range | ’-20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
