Small size force sensor
Small size force sensor

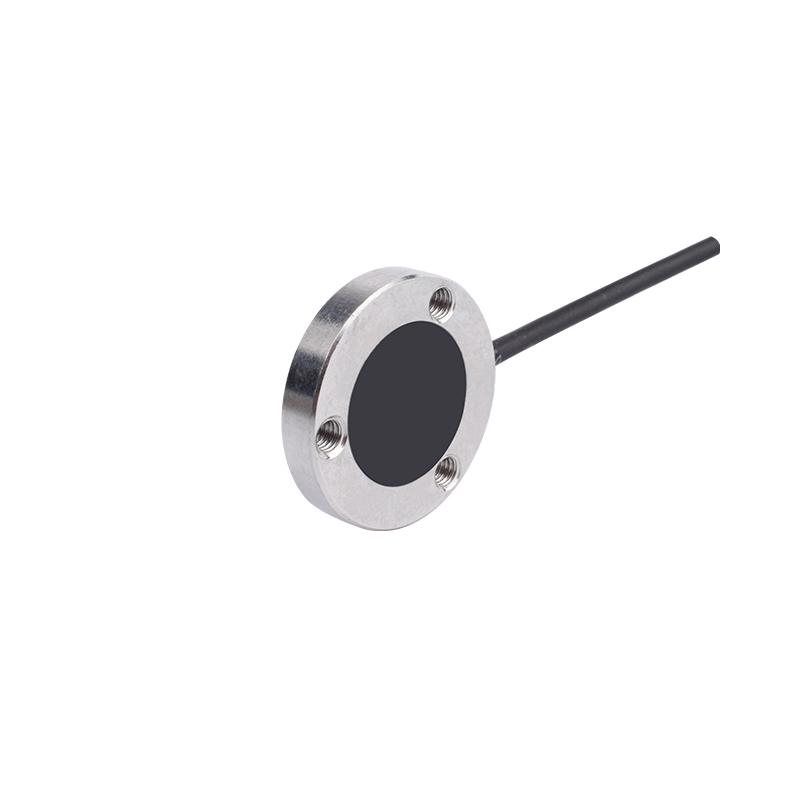

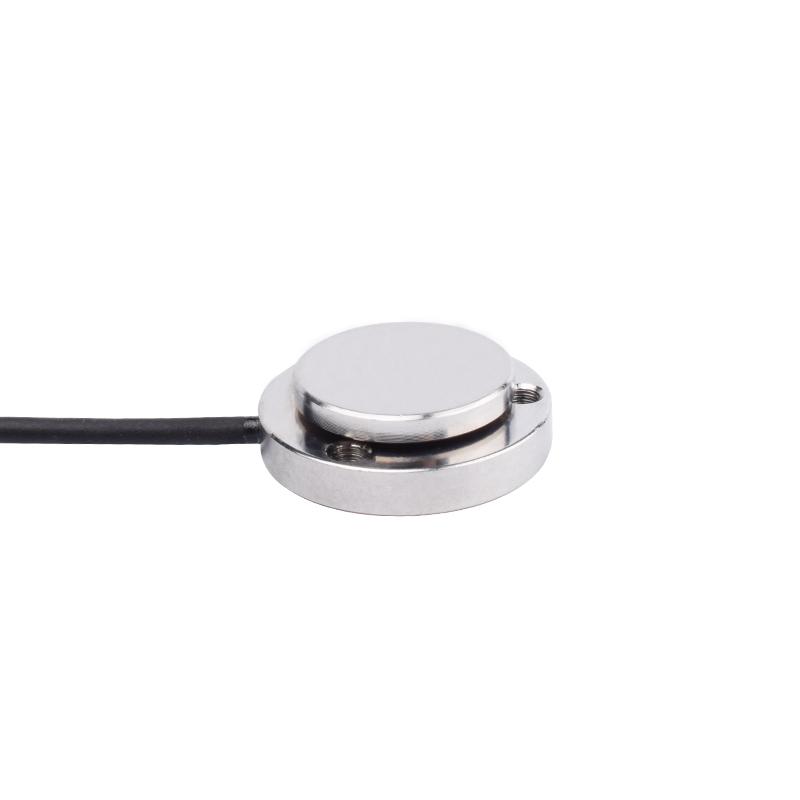

Thin sensor small size load cell NF107B

Model: NF107B
Category: Single point load cells
Capacity: 100,200,300,500N
Rated Output: 1.0±20%mV/V
Material: Stainless steel
Protection Class: IP65
Weight: 0.03KG
Installation Dimensions: As shown in the mounting dimension below
Product Orgin: China
Payment: 100% payment before shipment

Features

Thin sensor small size load cell NF107B has Minimal dimensions.The small size force sensor allow force measurements almost anywhere,especially in tight and limited spaces. The mini load cell offers load buttons in four capacity options that measure compressive loads from100 to 500N.



Applications

  • Automobile press assembly
  • Automatic assembly
  • 3C product testing

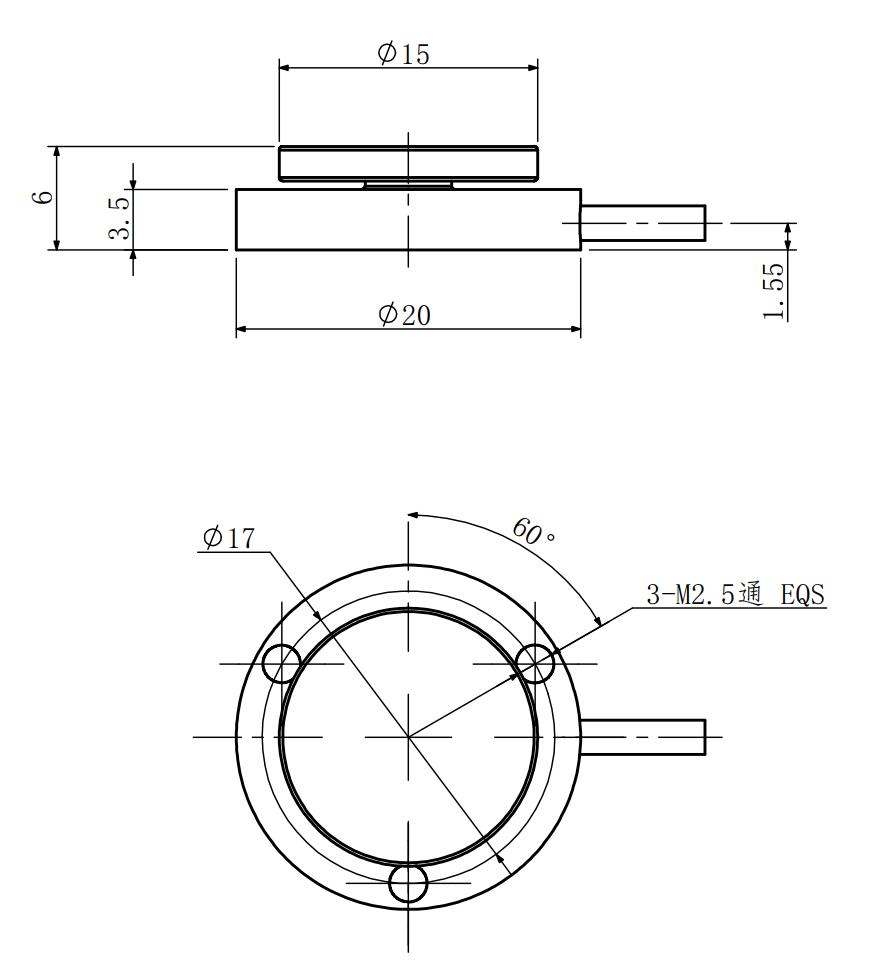

Mounting Dimension

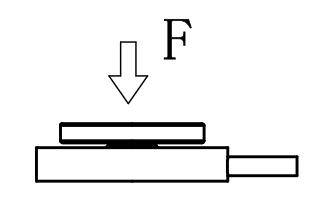

Load Direction

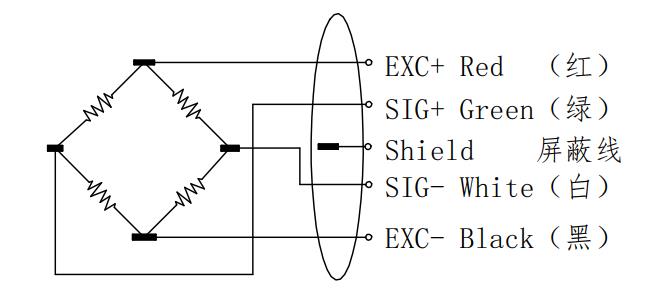

Wiring Code

Specifications

Specifications Technique
Capacity 100,200,300,500N
Rated output 1.0±20%mV/V
Zero balance ±0.05 mV/V
Non-linearity 0.5%F.S.
Hysteresis 0.3%F.S.
Repeatability 0.2%F.S.
Temp.effect on output 0.1%F.S./10
Temp.effect on zero 0.1%F.S./10
Input impedance 800~1100Ω
Output impedance 800~1100Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size Φ2×3000mm
Materia Stainless Steel
