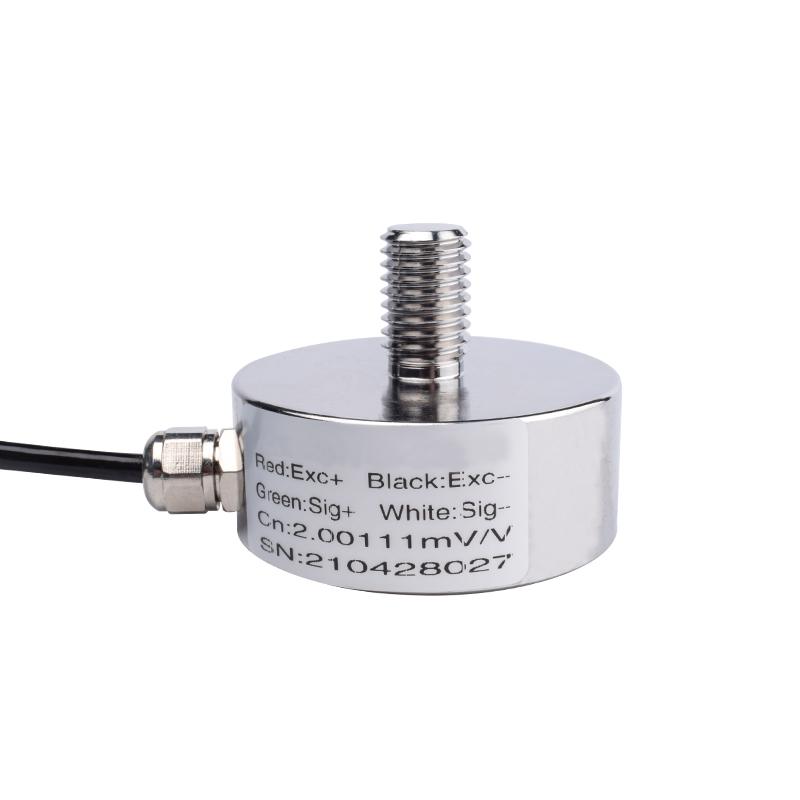

| Model: | NF114B |
| Category： | Single point load cells |
| Capacity: | 1,2,5,10,20kN |
| Rated Output: | 1.5±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.4KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

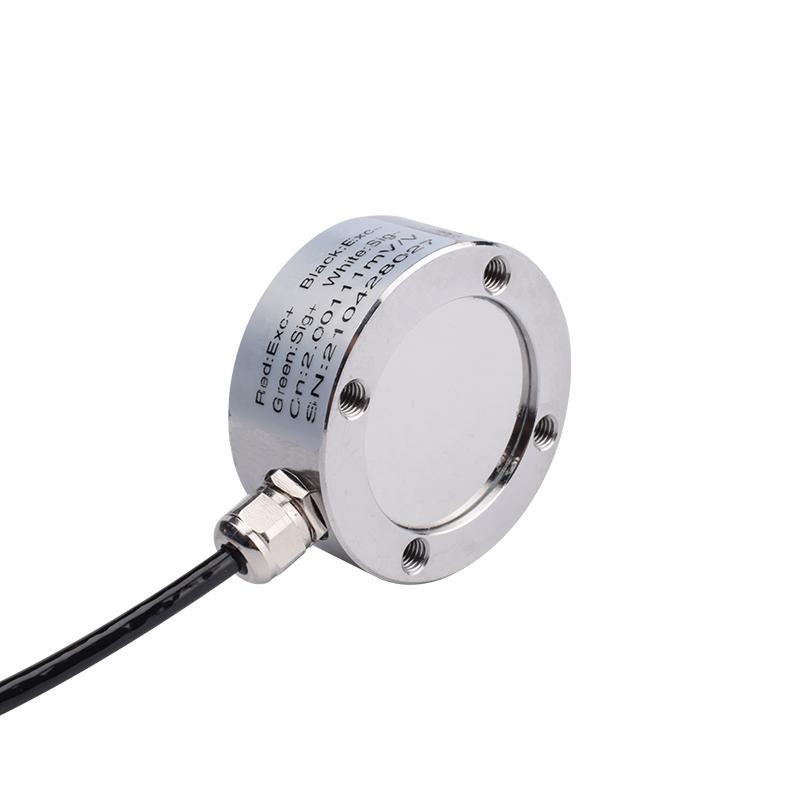

Miniature compression force sensor 1KN 2KN 5KN 10KN 20kN NF114B is available in a capacity range from 1KN to 20KN. The subminiature load cell is one of Naturoll’s most in-demand miniature load cells.The miniature force sensor has 4xM5 and 6xM5 threaded holes located on the bottom which make it easy to get the button load cell mounted.
Applications

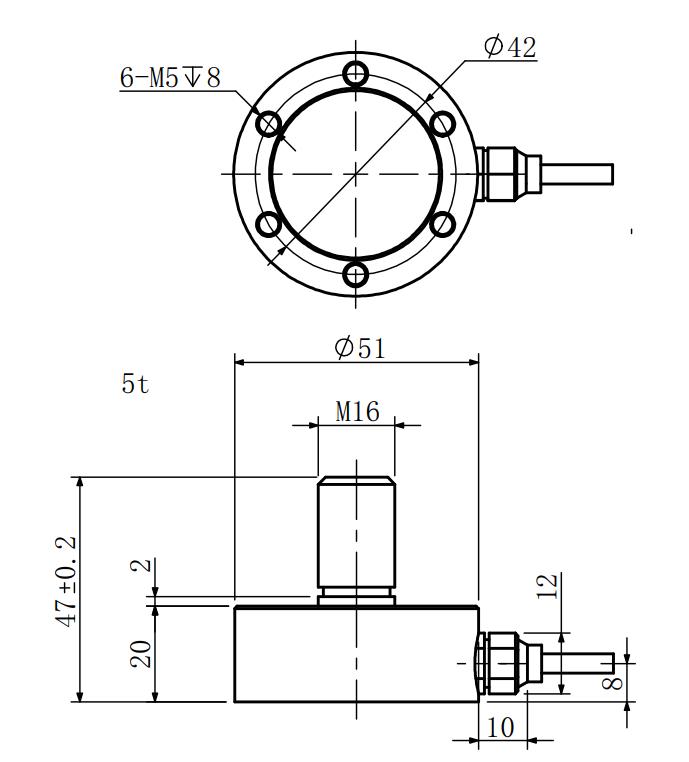

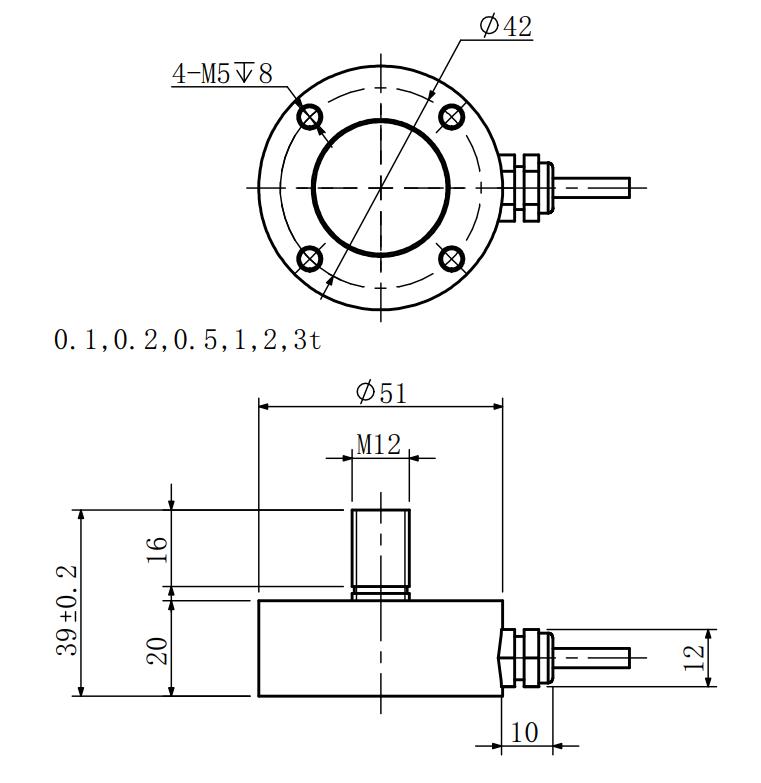

Mounting Dimension

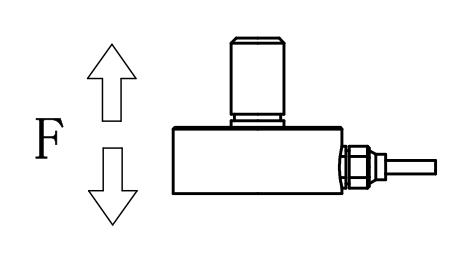

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 1,2,5,10,20kN |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ4×3000mm |
