| Model: | NF510 |
| Category： | Beam Load Cells |
| Capacity: | 10,20,50,100,200,500kg |
| Rated Output: | 2.0±0.05mV/V |
| Material: | Stainless steel |
| Protection Class: | IP68 |
| Weight: | 0.5KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

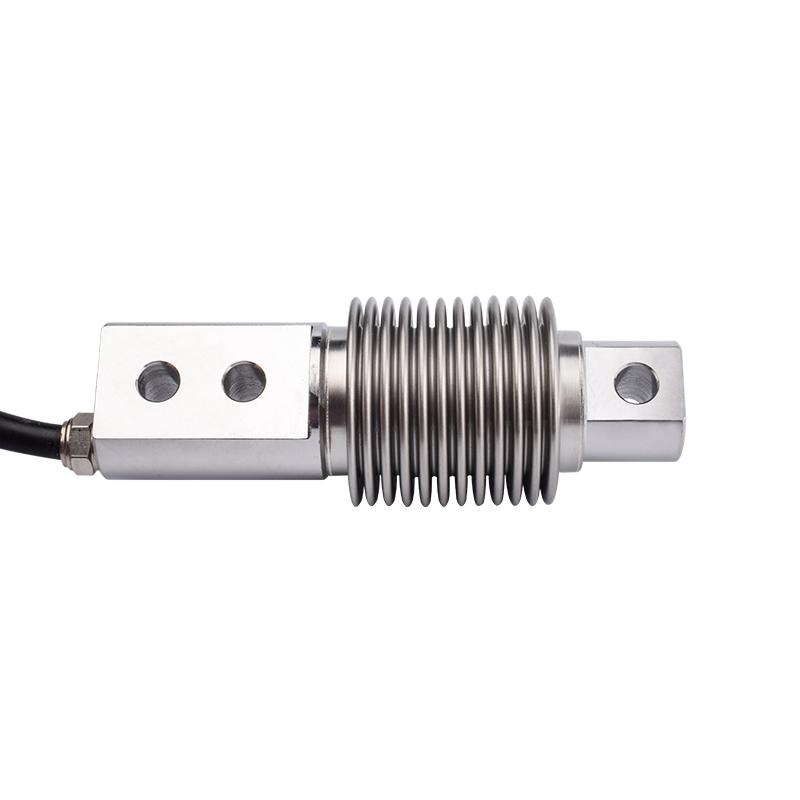

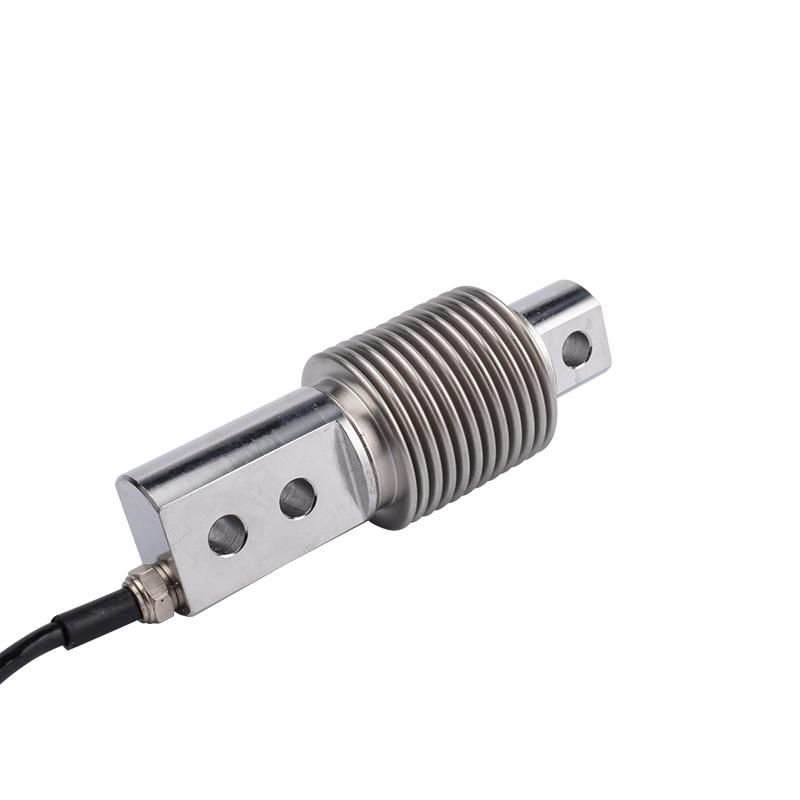

Bending beam weight load cell 10,20,50,100,200,500kg NF510 is based on the strain gauge technology. The high accuracy sensor is easy to install.The bending beam load cell offers particularly high protection such as IP68 waterproof. The weight sensor offers limitless possibilities for applications.
Applications

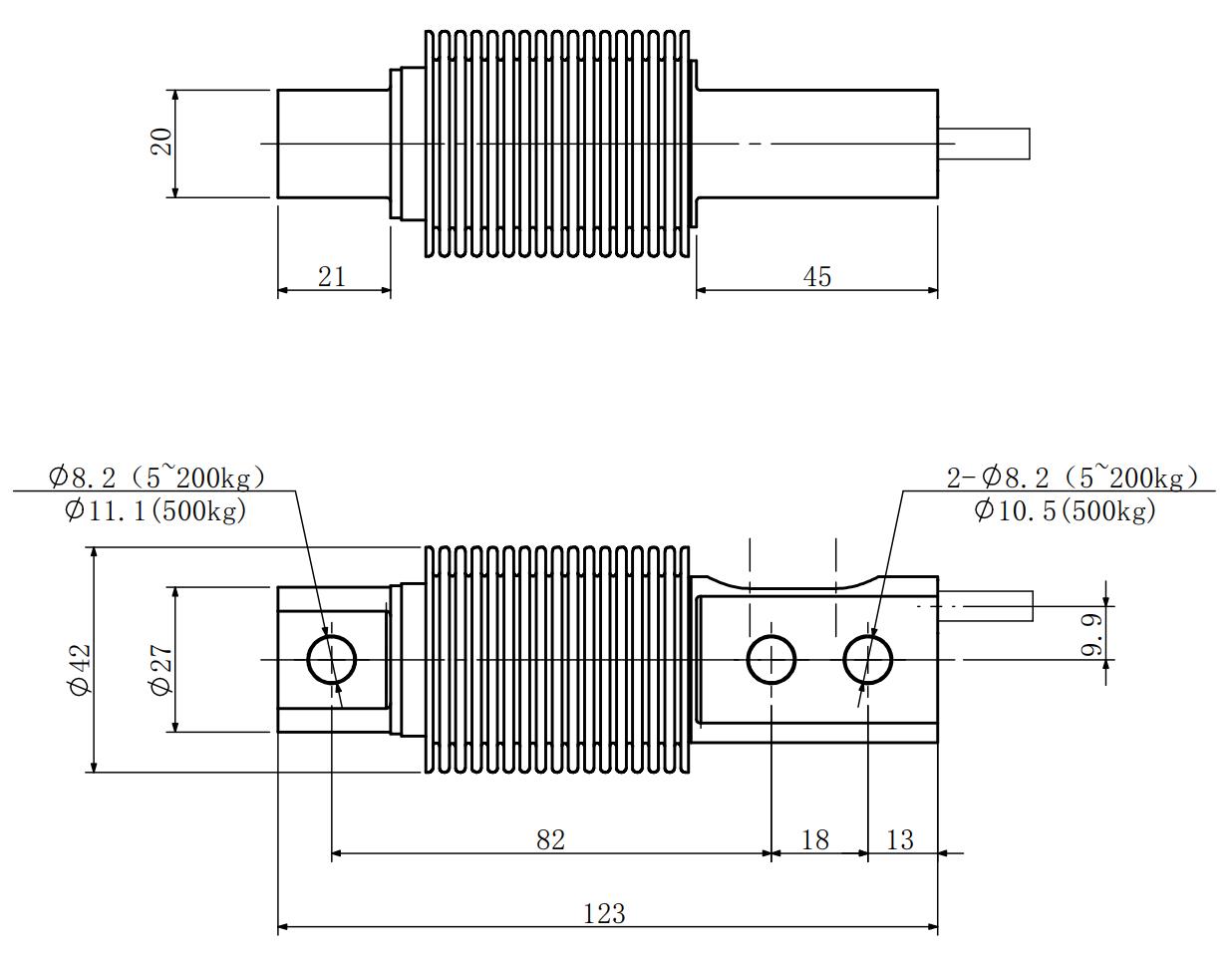

Mounting Dimension

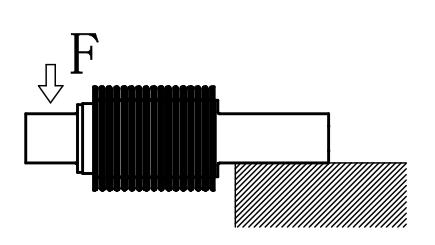

Load Direction

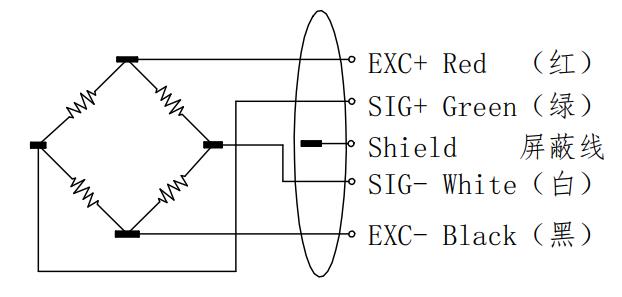

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,50,100,200,500kg |
| Accuracy class | C3 |
| Rated output | 2.0±0.05mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.018%F.S. |
| Hysteresis | 0.017%F.S. |
| Repeatability | 0.018%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.008%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -30~70℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.4×1500mm |
| Material | Stainless Steel |
| IP Class | IP68 |
